S700 Safety Guide | 2 English

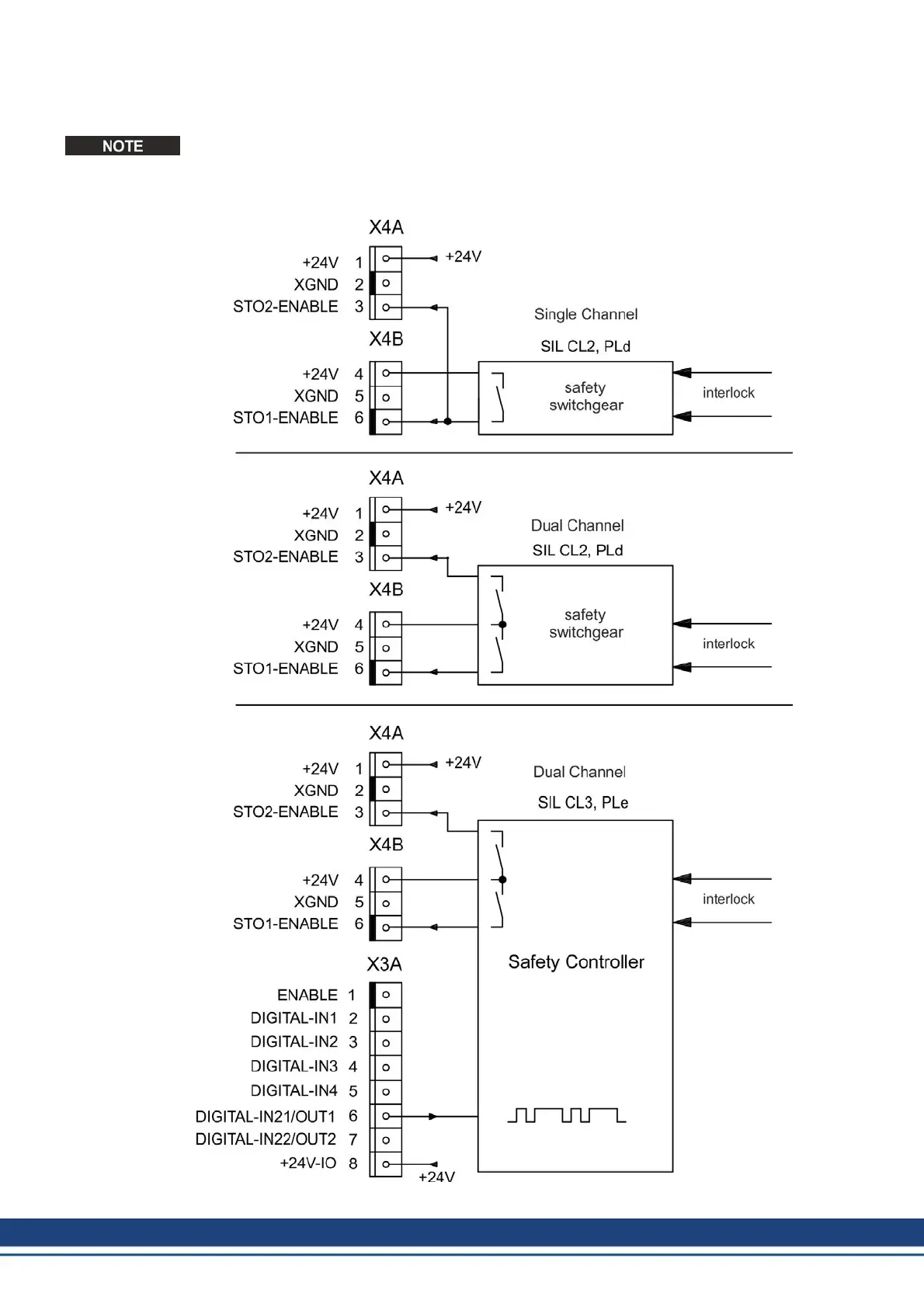

Pinout S701...S724
To achieve PLe / SIL CL3, the safe switching of the pulse inhibitor must be tested peri-
odically by analyzing the status signal from a safety control. Therefore the status must be
linked to one of the digital outputs DIGITAL-OUT1 or 2 (X3A/6 or X3A/7) with the ASCII com-
mand OxMODE70.
60 Kollmorgen | September 2015
