KT-70E / KT-90E / KT-70SE User Manual Page 16 of 59 24 April 2018

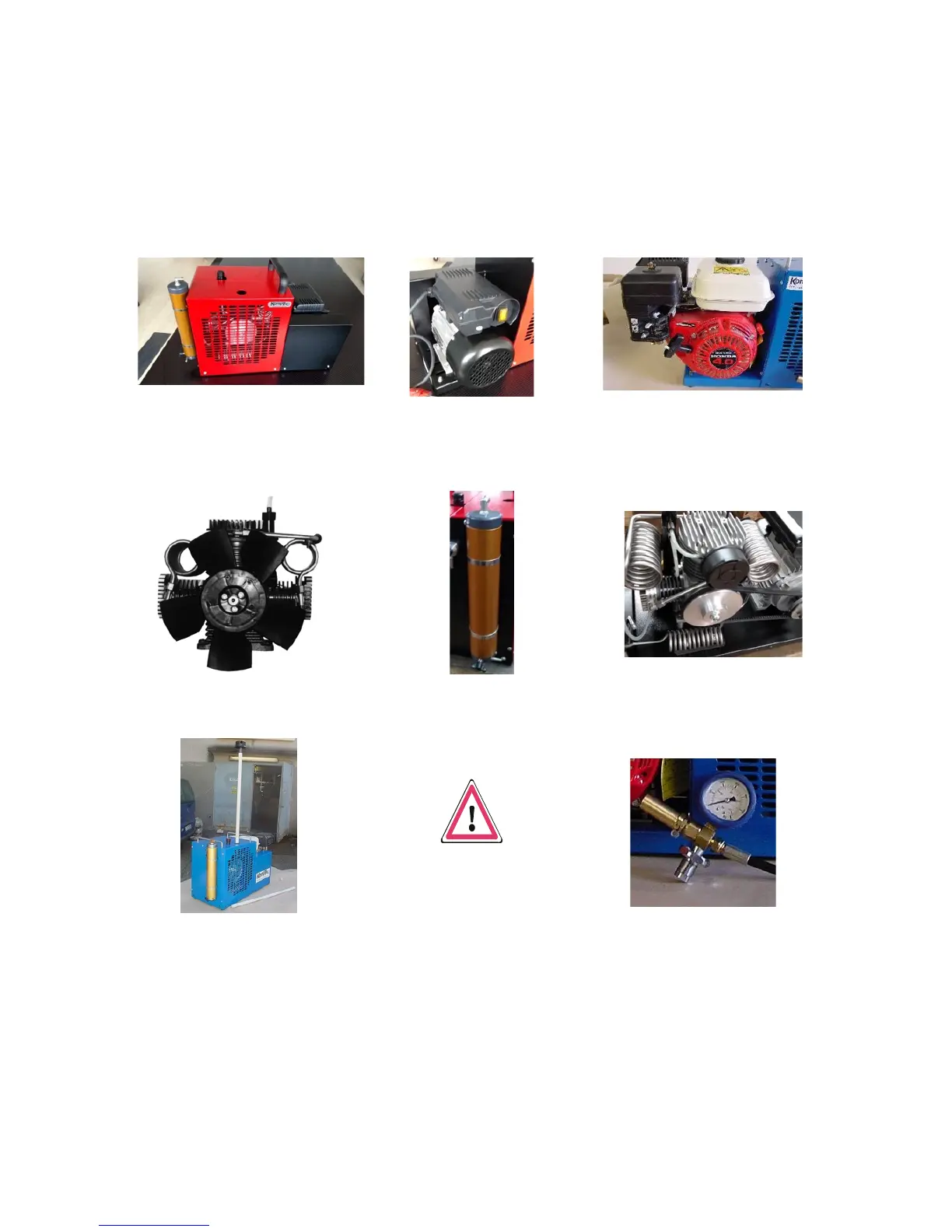

2.4. Functional Description
Standard Equipment
The housing consists of the
base plate with the cover.
Most components are
mounted on the base plate.
The drive consists of a 230V
motor, a pulley and drive
belt. See 115V photo below
The drive can also be a gas
motor with a V-belt pulley
and V-belts.
The compressor block con-
sists of 3 compressor stages.
The filter unit consists of a
high-definition filter and the
condensate drain.
The intake filter is incorpo-
rated in the housing for the
KT-70E / KT-90E.
In the gasoline version of the
KT-70E / KT-90E, a snorkel
may be fitted.
The intake filter for the gaso-
line version of the compres-
sor must be mounted at least
1 m above the compressor.
The filling unit (base config-
uration) consists of: pressure
gauge, safety valve and fill
port. See optional filling
unit description in sec. 8.1.2
