8. Operation
To avoid damage to property or life-threatening injuries in the operation of
the compressor, the following points must be observed:
- The compressor must only be used according to its intended use.
- Also read the chapter "General safety instructions".

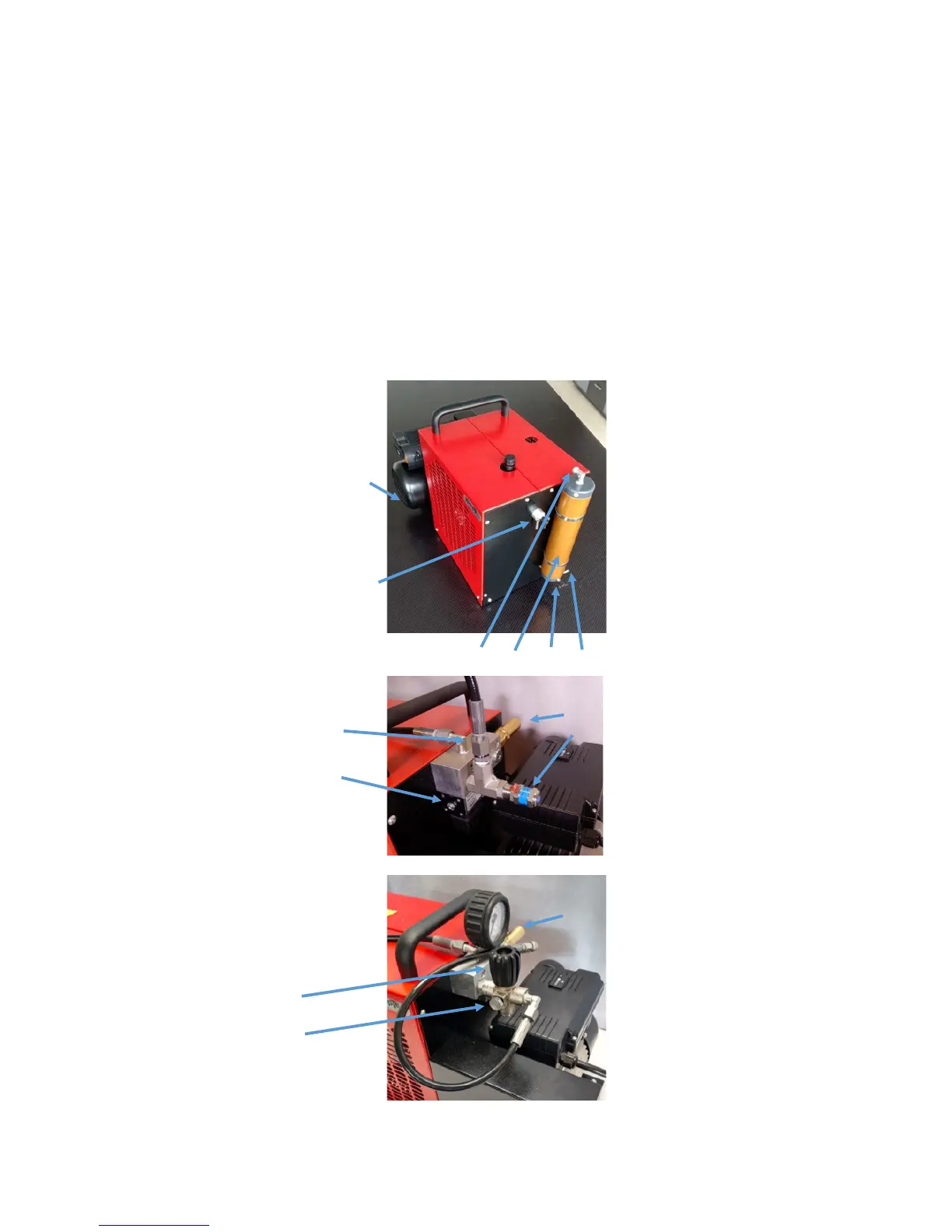

8.1. Description of the controls
8.1.1. Compressor
Base Configuration
1 Filter Unit
2 Condensate drain pipe
3 Drain Screw
4 Filling Hose Connection
5 Drive Motor (Electric)
6 Bleed screw / Intermedi-
ate stage condensate drain
Configurations 1 and 2
1 Fill Hose Connection
2 Safety Valve
3 Minimum Pressure Valve
4 Auto Shut-Off
KT-70SE
1. Fill Valve
2. Safety Valve
3. Bleed Screw
1
2
3
2
4
3
2
5
4
3
2
6
5
4
3
2
1
2
3
2
4
1
1
2
3
