KT-70E / KT-90E / KT-70SE User Manual Page 31 of 59 24 April 2018
8.1.2. Filling Hose

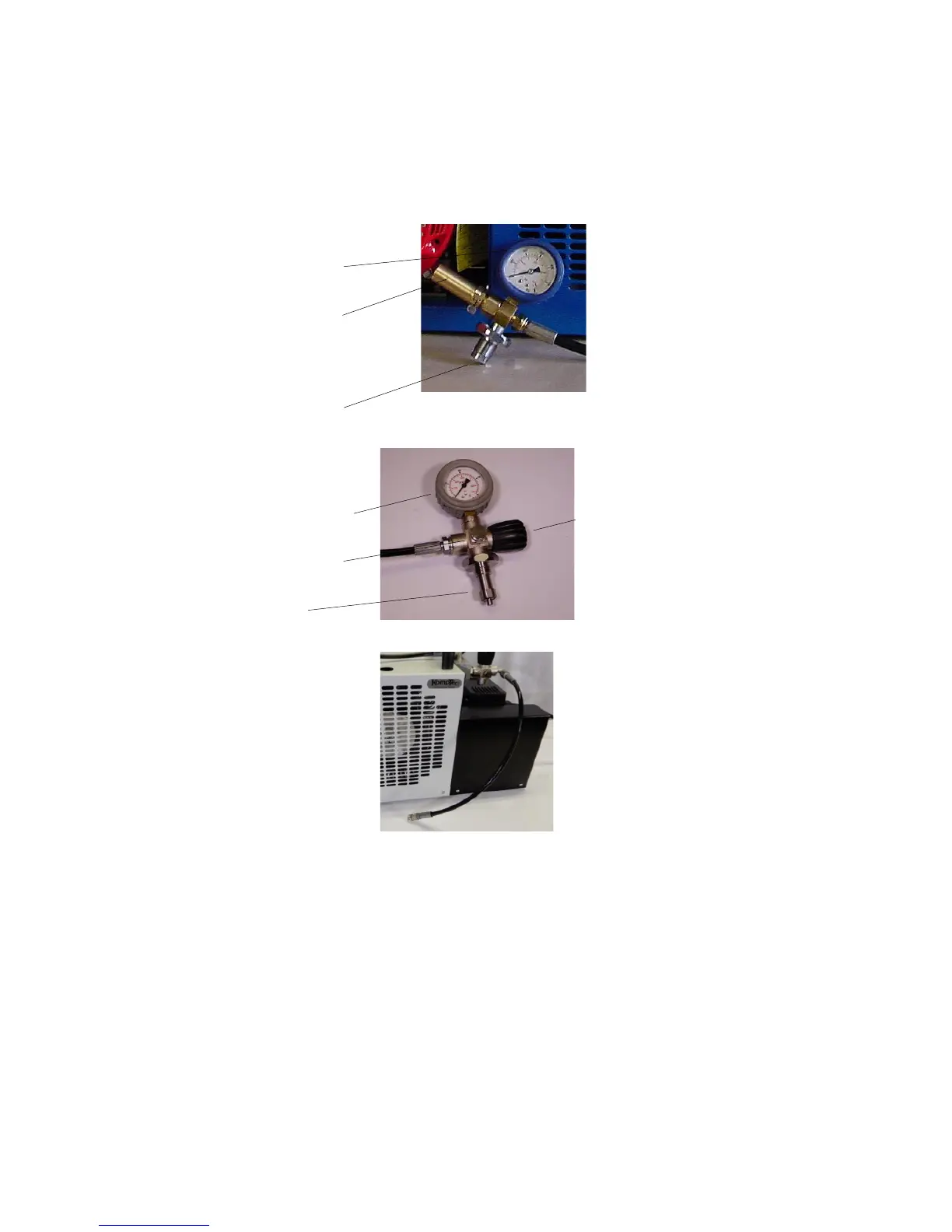

Base Configuration
1 Final pressure safety
valve
2 Pressure Gauge
3 Filling connection
DIN 200 bar or DIN 300
bar
Configurations 1 or 2
1 Filling connection, DIN
200 bar or DIN 300 bar
2 Bleed Valve
3 Fill Valve
4 Gauge
KT-70SE
Fill Hose connects to output
of Fill Valve and has a
Quick Disconnect fitting
3
1
3
2
1
2
4
