Konami Mocap Boxing - Attaching the Foot Protective Guard

6 Installation and assembling
6-3 Attaching the foot protective guard
SHOW to attach the foot protective guard - - - - - - - - - - - - = - -
Make sure the machine is secured on the adjusters.
Then place and fix the guard
in the specified position,
A
c
\
*Be sure to attach the foot protective guard in position.
tt is designed to
prevent players from getting their feet between the floor and the machine
bottom and from getting injured.
*Before attaching the foot protective guard, be sure that the adjusters are
fixed tight in place.
\
4
1
I

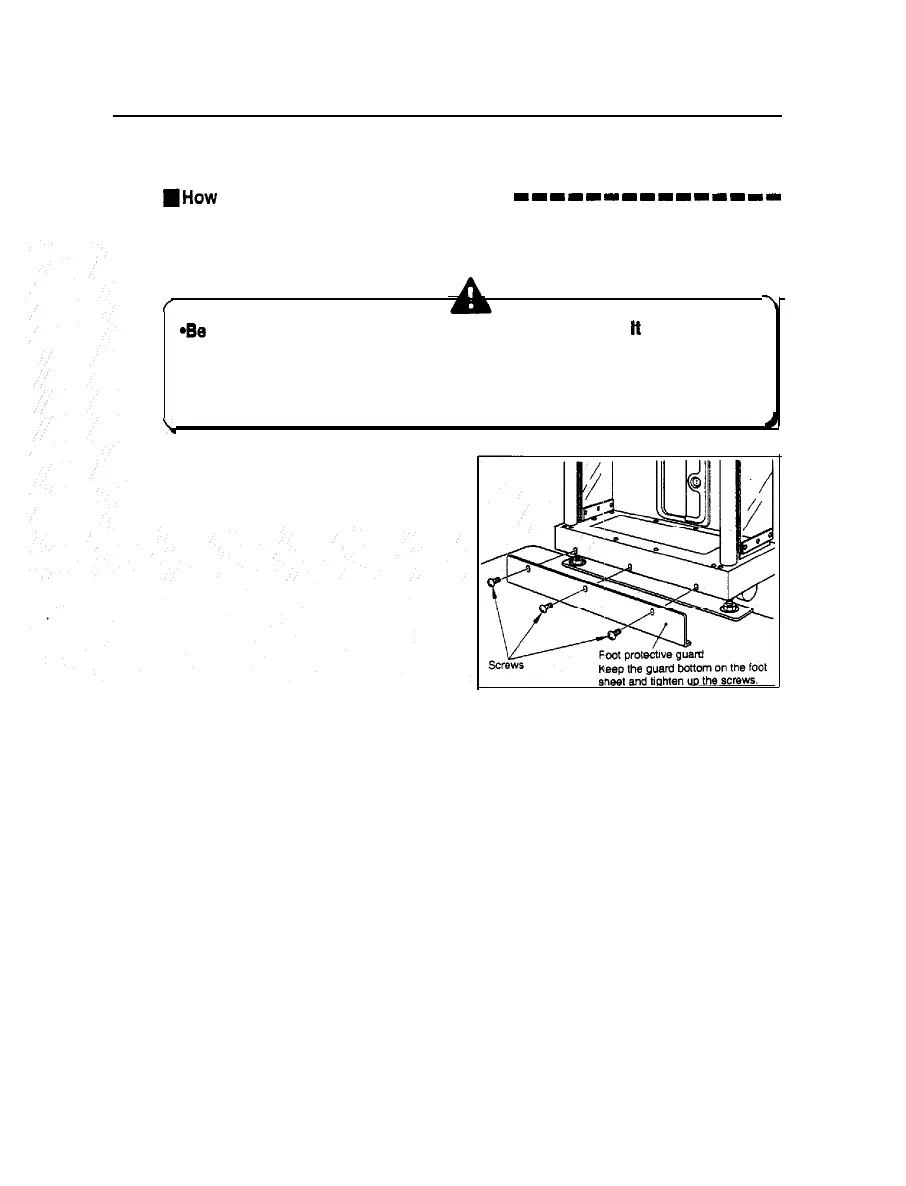

Using the screws, attach it in
position shown at the figure to the
right.
28
