6 Installation and assembling
6-4 Mounting the sensor frame
n

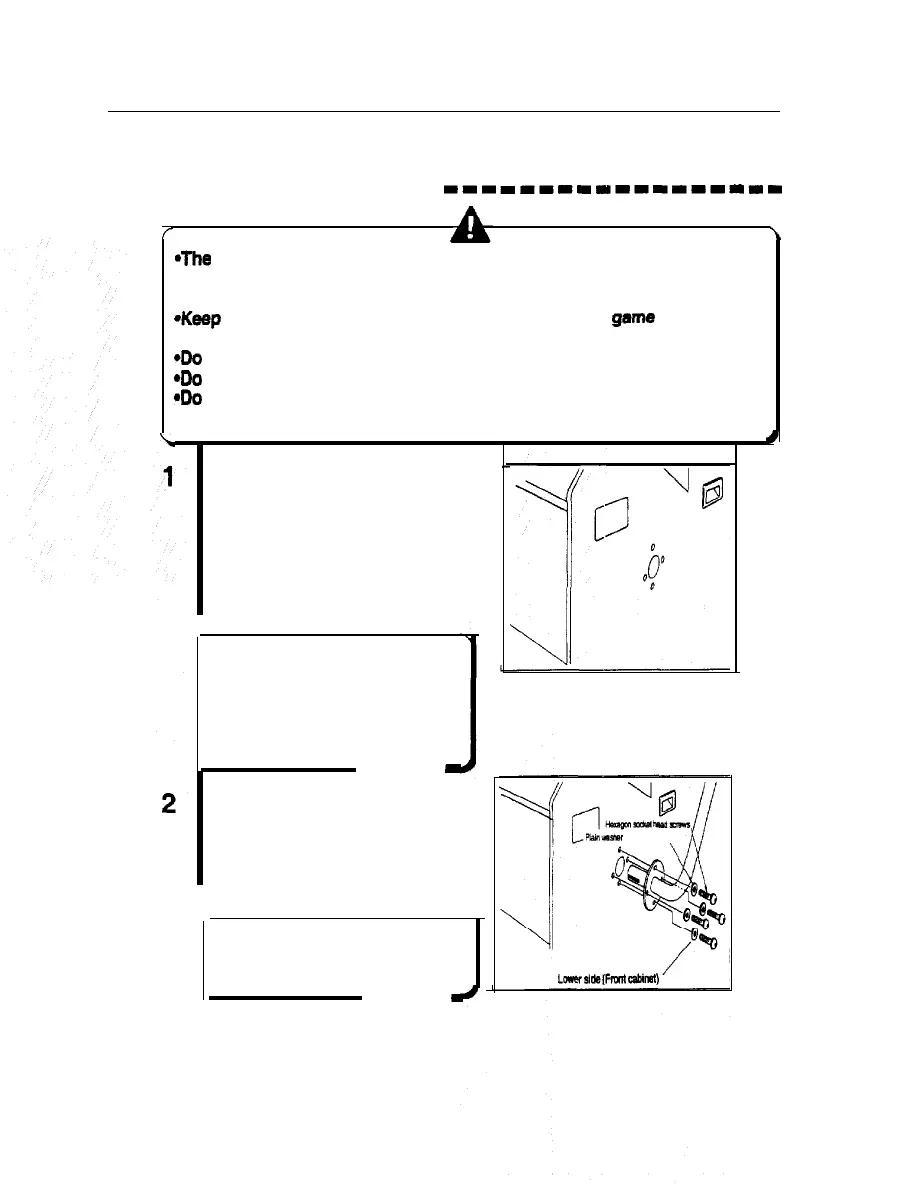

How to mount the sensor frame
111111mmm1111m1111
f
\
*The sensor frame weighs about 35.3 lb. The joint frame weighs about
26.6 lb. Be sure to have a team of 2 or more people in detaching and
attaching it and to use a stepladder for added safety.
‘Keep the specified clearances (see page 9) between the game machine
and wails as well as other products.
*Do not apply a strong force for moving the machine.
*Do not leave anything around the machine.
*Do not paint and do not stick a label or sign on the sensor elements of
the sensor frame and around them.
\
4
There are two mounting holes on
each side of the front end of the
cabinet. Attach the vertical support
brackets to each side of the front
end of the cabinet. Use the tamper
proof screws that are provided.
Since the support should be
mounted in advance, set aside the
sensor frame in a place where it
will not hinder the machine assem-
bling work.
MEMO
-
M
ake sure the vertical support bars
are mounted as shown in the
picture to the right.
*Mount the right and left supports
simultaneously in the same
procedure.
\
MEMO
-
29
