Konami Mocap Boxing - Circuit Protector Resetting

7 Maintenance
7-3 Resetting the circuit protector
*Before resetting the circuit protector, be sure to turn OFF the main power
switch and unplug the power cord from the receptacle.
*If the circuit protector trips soon again, immediately turn OFF the main
power switch, unplug the power cord and contact your nearest dealer.
*There is high voltage Inside the machine. Only the qualified industry
specialist is allowed to open the back door.
Wlth the back door open, be
very careful not to touch the monitor and its nearby parts.
*If the sub power switch of the sewlce panel ls turned OFF wlthout turning
OFF the main power switch of the power supply unit, some parts in the
units remain live. When opening the back door, be sure to turn OFF the
main power switch and unplug the power cord from the receptacle.
l lf the machine is in abnormal conditions and does not operate normally,
immediately turn OFF the main power switch, unplug the power cord from
the receptacle and contact your nearest dealer.
\
,
I
1
I
Be sure to turn OFF the main power
swith and unplug the power cord
from the receptacle.

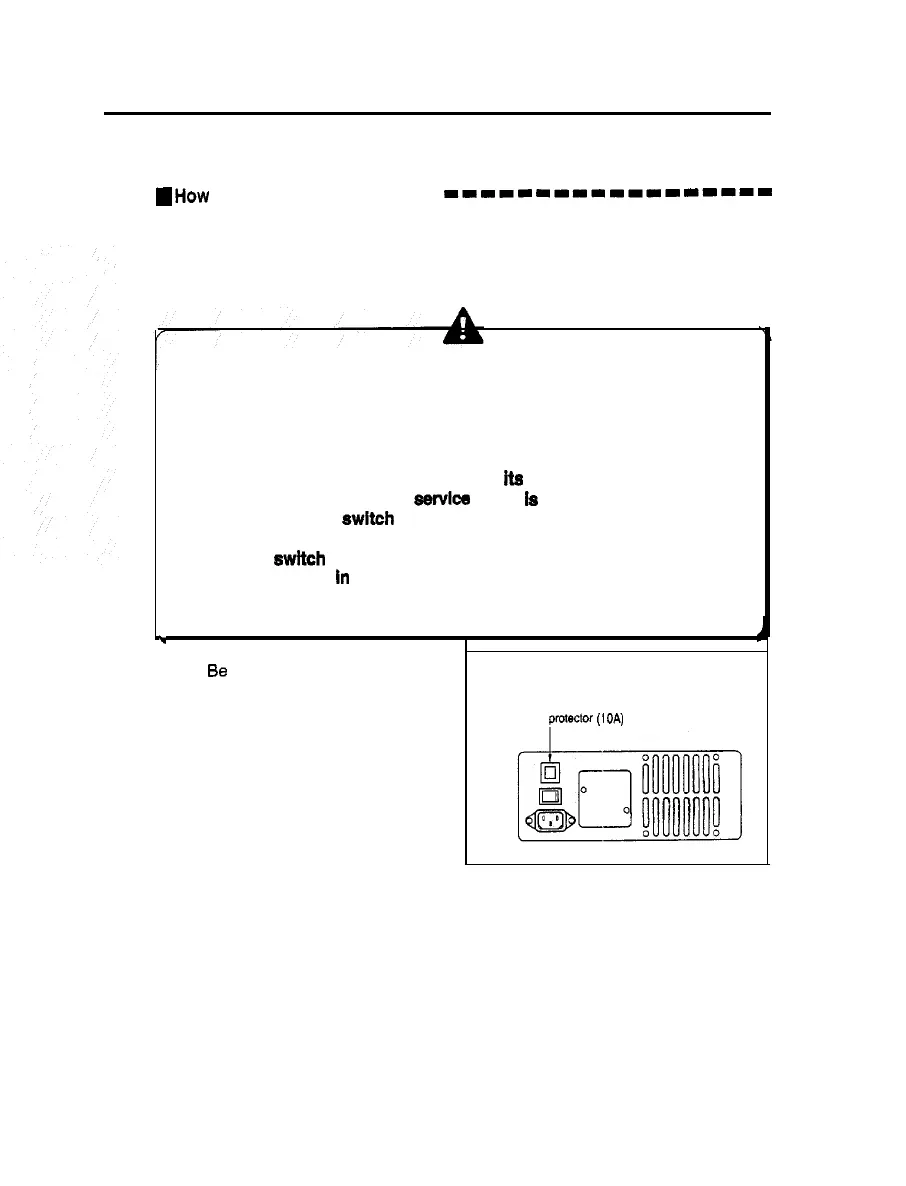

SHOW to reset the circuit protector
mm111m111111111111
If an overcurrent or short circuit occurs, the circuit protector will be automatically
actuated to protect the electric circuits of the game machine. When resetting the
circuit protector, turn OFF the main power switch, unplug the power cord from the
receptacle, eliminate the cause, and then press the button of the circuit protector.
2
I
Remove the cause of the trouble.
Press the button on the circuit
protector of the power unit.
Power unit
Circuit prelector (1 OA)
36
