397152/E

connectingthecNODEbatterychargertothemains.Thebatterywillbechargedwithin

1hour.TheLEDindicatorwillstaygreenwhenfullycharged.

Thetransponderisreadyforuse.

Turningonthetransponder

Thetransponderisdesignedforoperationinwateronly.Thetranspondermaybe

operatedinairfortestpurposesoverashortperiodoftime.

Prerequisites

Thetranspondermustbechargedbeforeuse.

Procedure

1GreasetheconnectorwithMolykote44Mediumorequivalentgrease.

LubricatingSEACONconnectors,page27

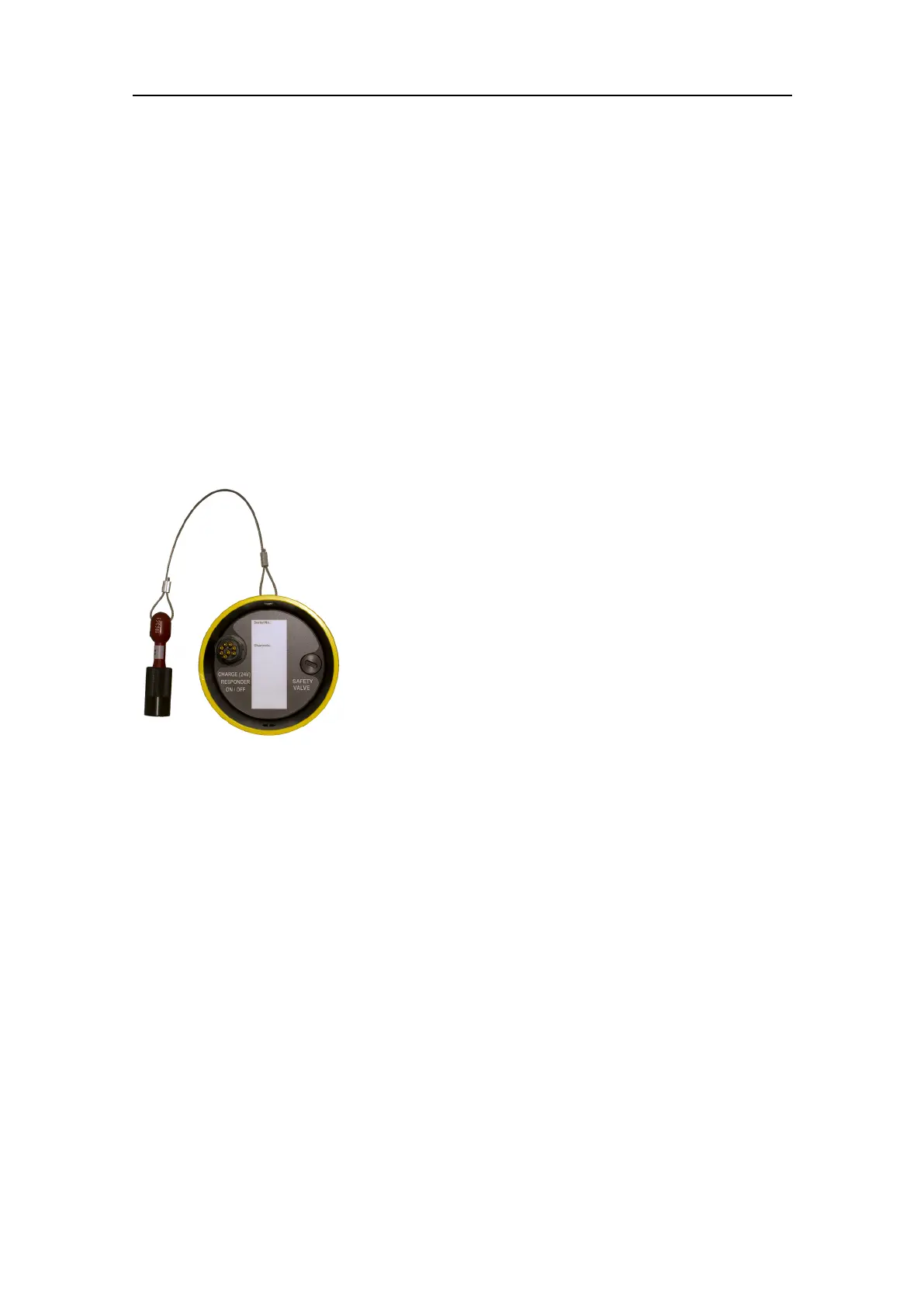

2Connecttheon/offplugtotheendcapconnector.

3Tightenthelockingsleevetotheendcapconnector.

Result

Abuzzcanbeheardwithin25secondsasaconrmationthatthetransponderisactivated.

Furtherrequirements

ItisrecommendedtotestthetransponderwiththeTestandCongurationunit(TTC)to

makesureitisworkingproperlybeforeoperation.

cNODEMiniSInstructionManual
