Konica Minolta 7013 - Packaging Contents; Parts of Your Machine

1.1
Getting started
Packaging contents

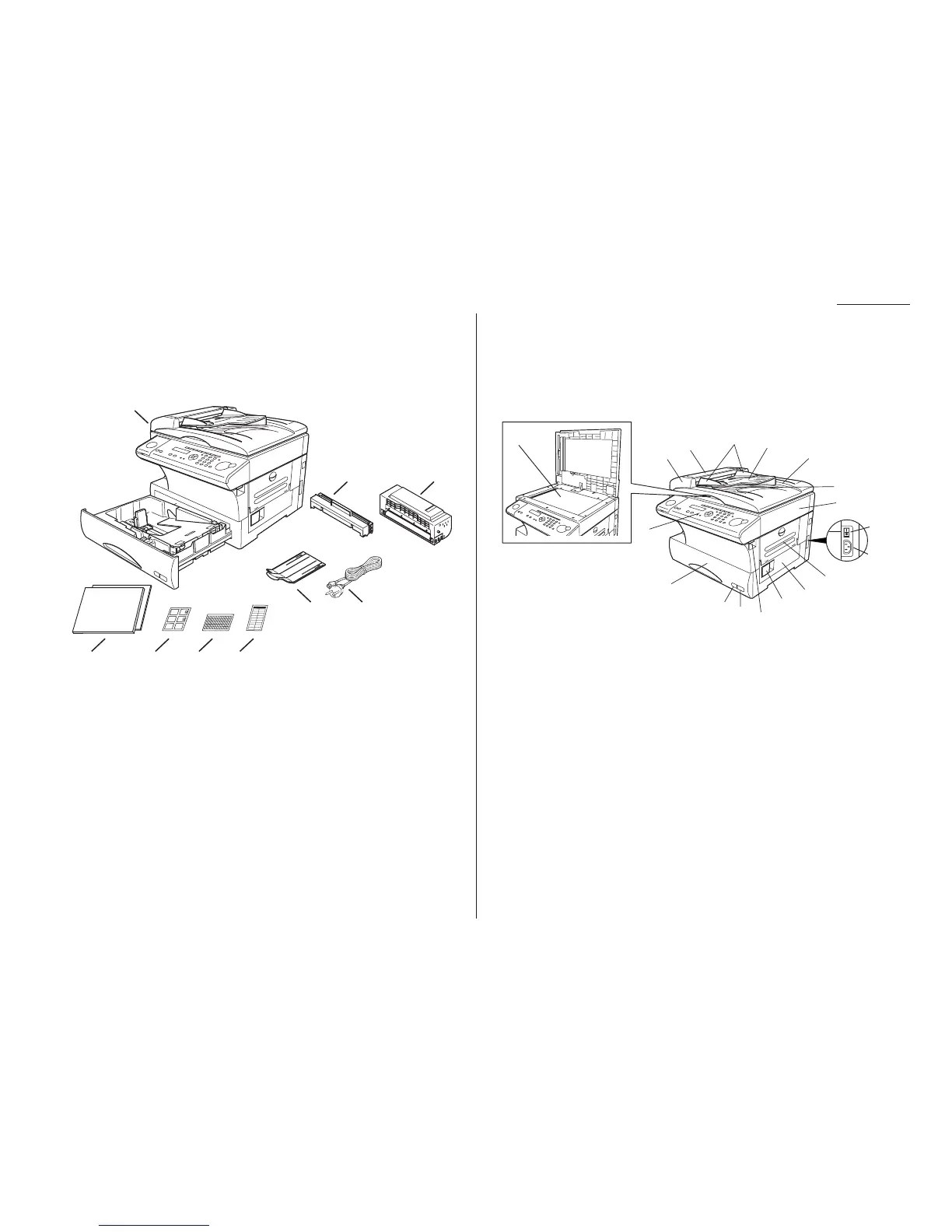

Included in your machine’s packaging:
1. Main unit with 500-sheet paper cassette installed
2. Drum cartridge 6. Operating instructions and Quick reference
3. Toner cartridge 7. Paper size stickers
4. Extension paper tray 8. One-touch labels
5. AC power cord 9. Soft Key labels
Note: Be sure to save the box (or boxes) and packing materials for reshipment.
Parts of your machine
Note: Any terms used here that are unclear to you right now will be explained in
detail in the coming pages.
1
Control Panel — The keys you use to operate your machine. (See pages
1.3–1.4 for more details.)
2
ADF
(Automatic Document Feeder) — The ADF automatically feeds
original document into the machine, one at a time. It can hold up to 50 pages.
3
Scanner cover — Opens this cover to remove original document jams.
4
Document guides — Adjust these to fit the width of the original document
so it will feed properly into the machine.
5
Document tray — Holds original documents placed for scanning into the
machine.
6
Platen cover — Opens to scan an original document using the platen glass.
7
Original document exit — Where your original document comes out after
being scanned.
8
Top cover — Opens to provide access for changing the toner and drum car-
tridge (or, occasionally, fixing printout jams).
9
AC power switch — Turns your fax machine on and off.
