AccurioPress C2070/C2070P/C2060/C3080/C3080P/C3070, AccurioPrint C2060L/C3070L 3-19
3.6 Details of quality adjustment items
3

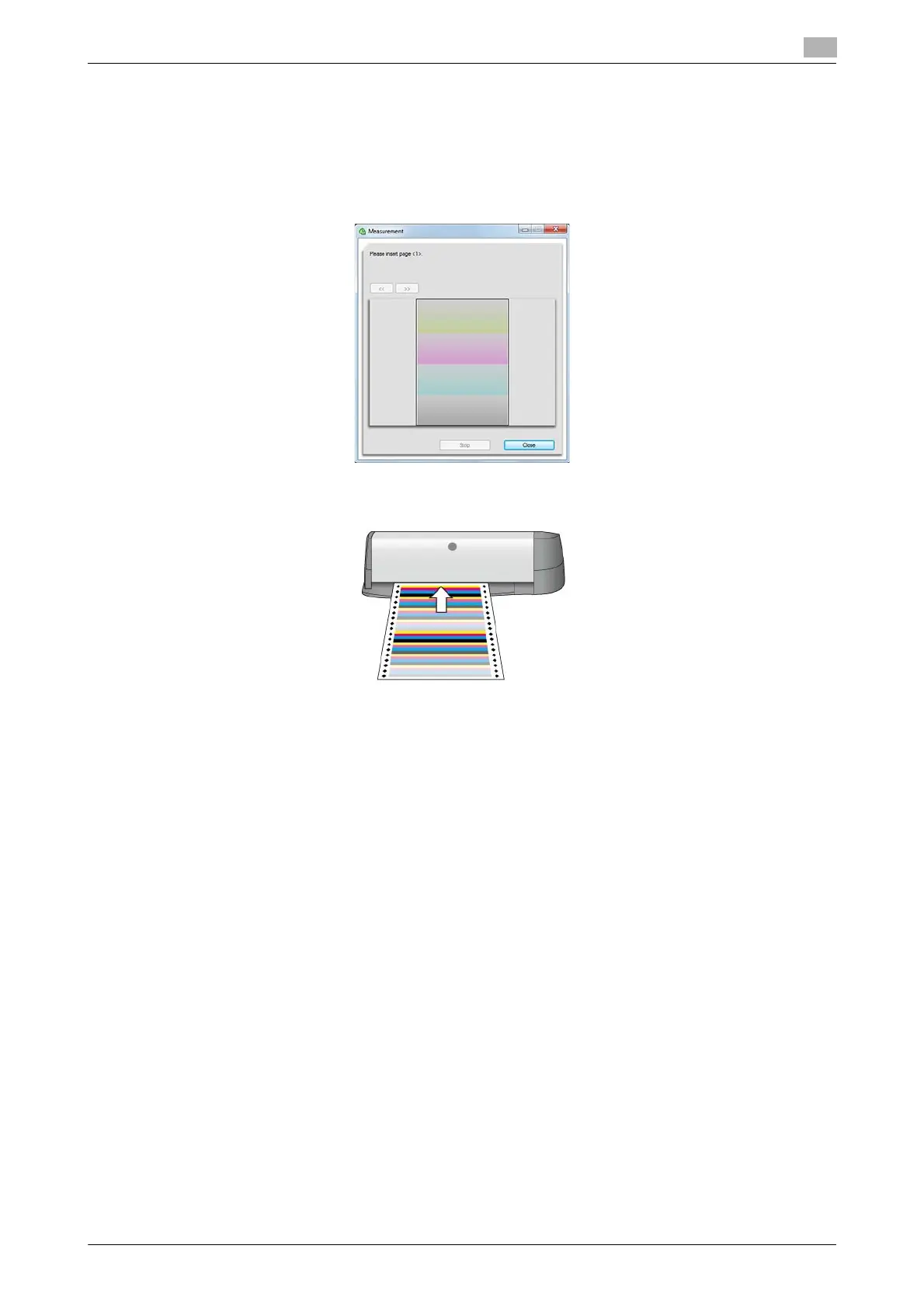

4 When the following message is displayed, insert the chart into i1iSisXL.
% Cut off the left side of the chart using scissors or such other tools so that the length between the
left end of the chart and the black diamond symbol becomes about 10 mm.
% Align the left end of the paper to the left end of the insert opening of i1iSisXL, and automatically
feed the paper one by one. When correctly inserted, the chart is pulled in a few centimeters and
comes back a little, and then after a little while, reading starts.
Measurement automatically starts.
Saving the measured data of the density balance
You can save the data of the density balance measured with the spectrophotometer to a USB device such
as a USB memory stick or to the computer on the network used by the machine.
