Troubleshooting

C252 5-19

Troubleshooting Chapter 5

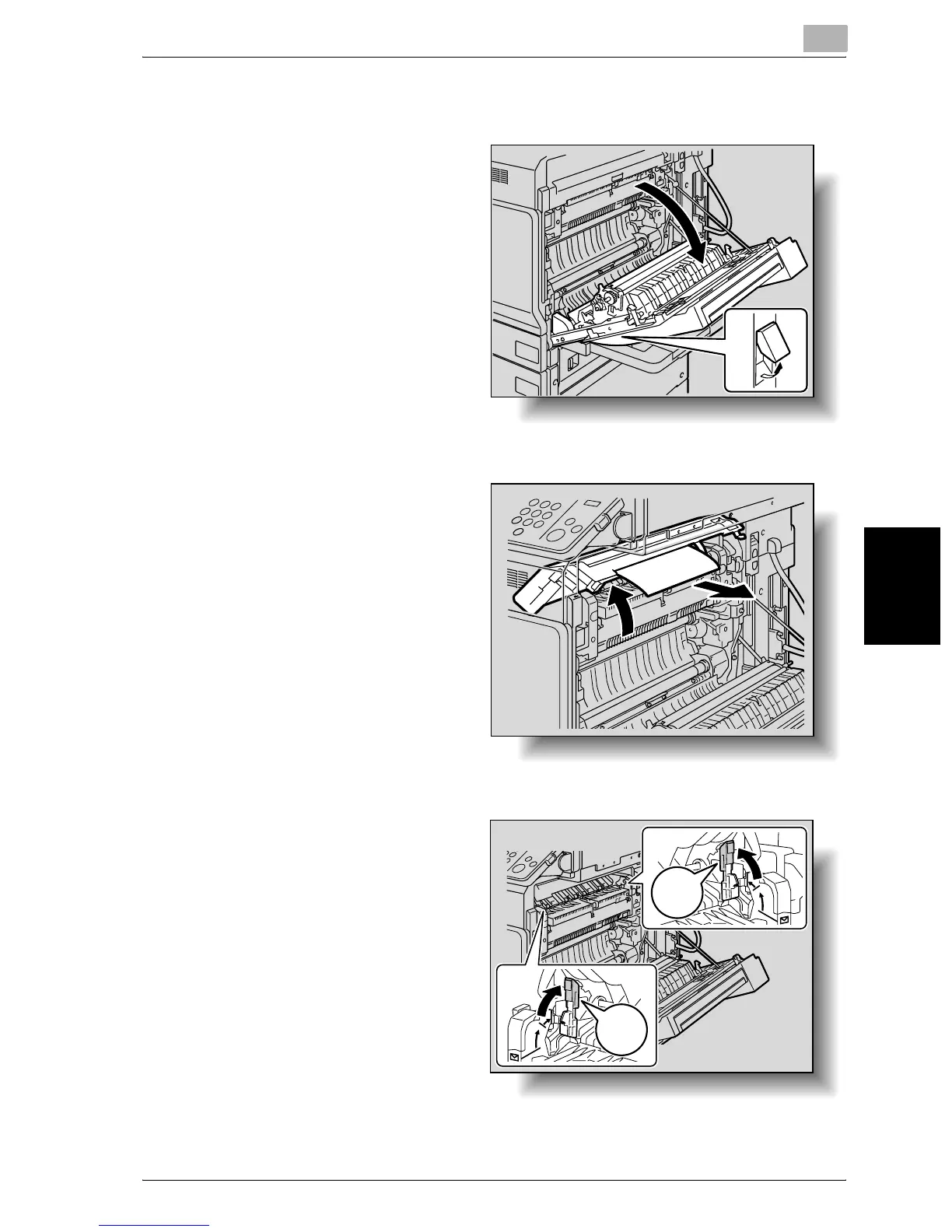

To clear a paper misfeed in the fusing unit

1 Pull up the upper right-

side door release lever,

and then open the upper

right-side door.

2 Push up the fusing unit

cover, and then pull out

any misfed paper.

3 Push up the M2 release

levers. Since the M2 re-

lease levers may be diffi-

cult to move, push them

up forcefully one at a

time.

– Do not manually re-

turn the M2 release

levers to their original

positions. They will

return to their original

positions when the

fusing unit cover is

closed.
