Replacing toner cartridges and staples and emptying waste containers

9-6 C252

Replacing toner cartridges and staples and emptying waste containers Chapter 9

To replace the toner cartridge

The procedure for replacing any of the toner cartridges (yellow (Y), magenta

(M), cyan (C) or black (K)) is the same.

Example: Replacing the black toner cartridge

0 When replacing the black toner cartridge, be sure to replace filter 2. A

new filter 2 is included in the package with the black toner cartridge.

0 When replacing the black

toner cartridge, be sure to

clean the electrostatic

charger wire.

For details on cleaning the

electrostatic charger wire,

refer to “Electrostatic

charger wire” on

page 10-6.

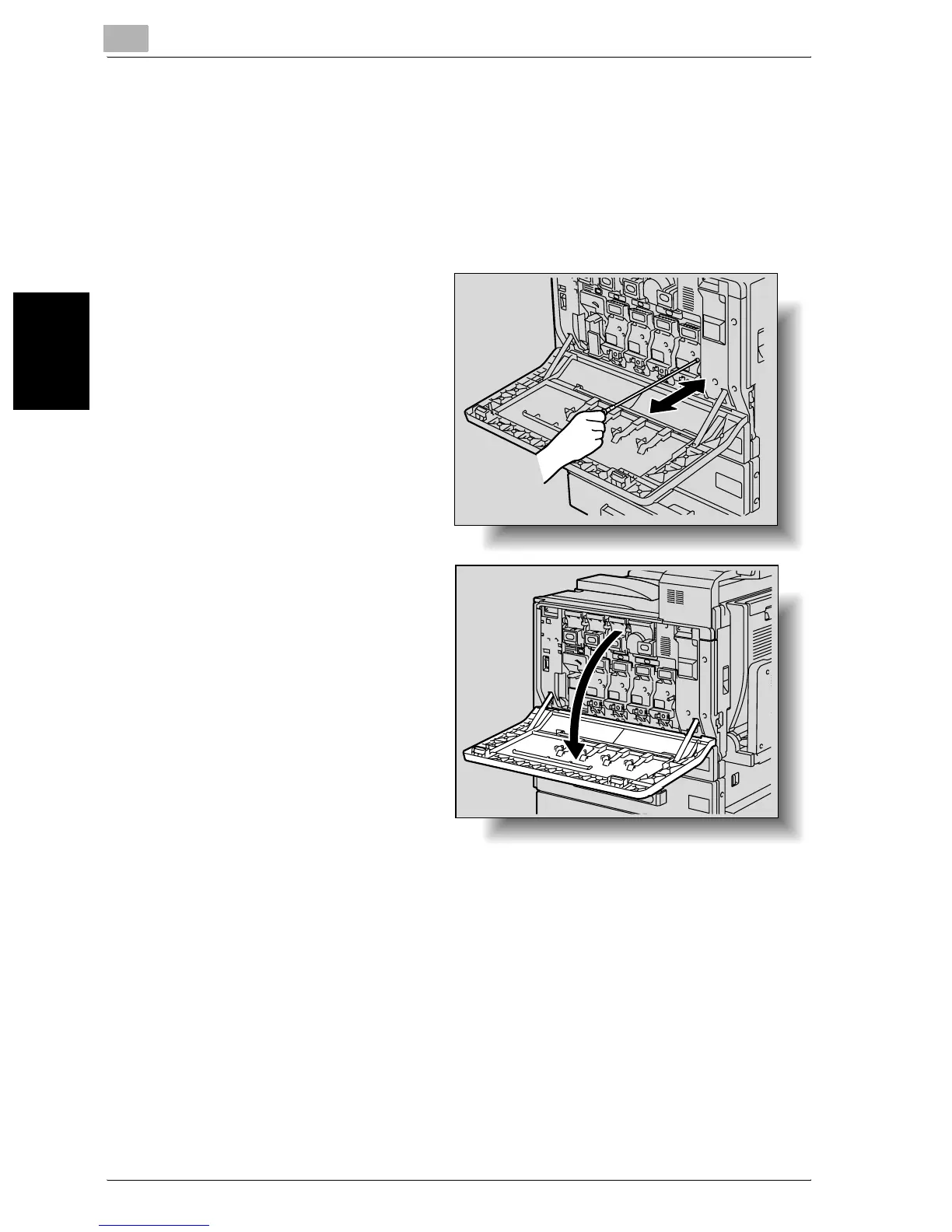

1 Open the machine’s

front door.
