To load tabbed sheets in paper feeder unit trays (tray 4 and 5)
0 The tray paper type should be specified as tabbed sheets. See page 9-44
for the details of Paper Setting.
1 Withdraw the tray to be loaded with tabbed sheets.
2 Place tabbed sheets on the tray.

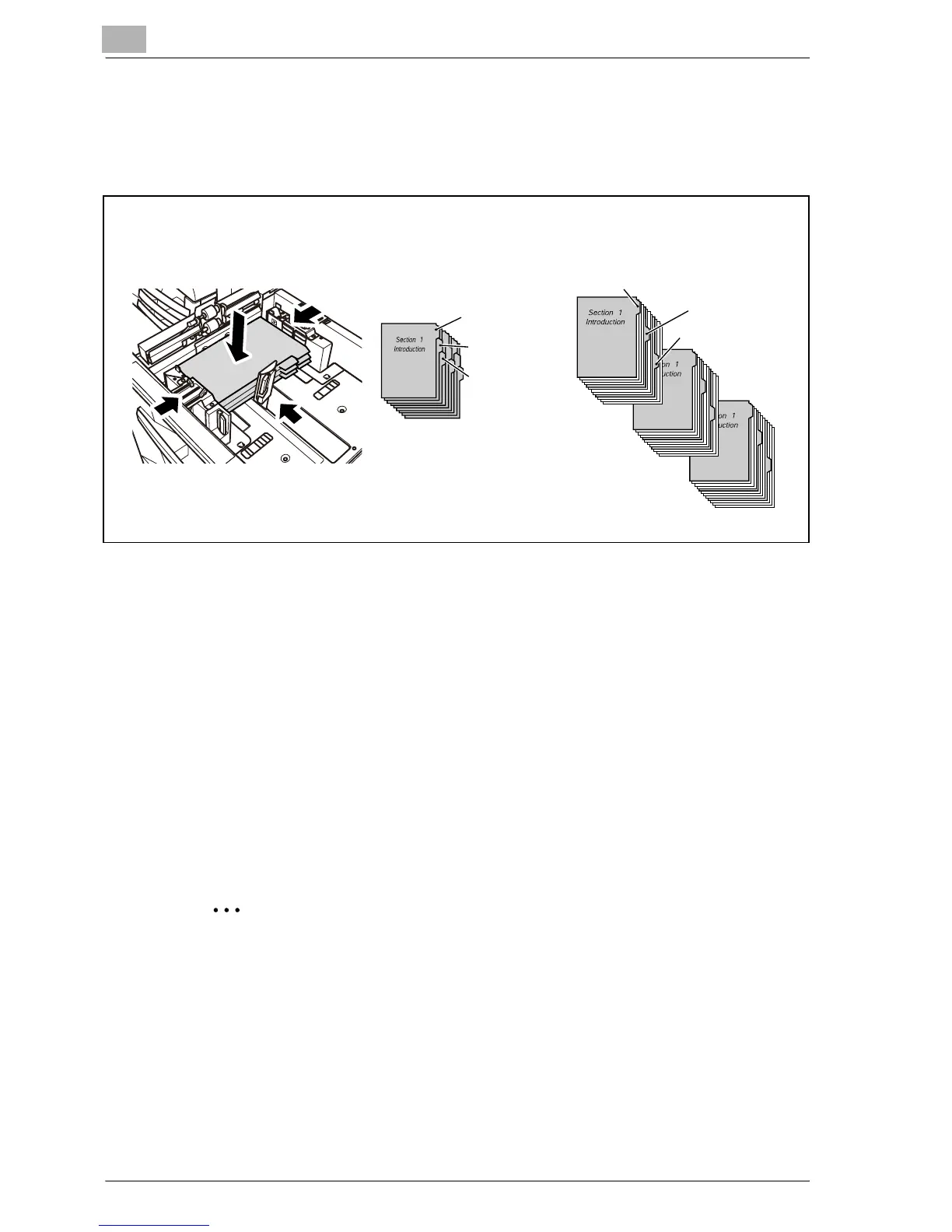

– Place paper referring to the illustration shown above.
3 Move the side guide plates to the edge of the paper.
– Set paper aligning it to the paper feed roller side of the tray.
– Press the release lever of the front side guide plate to move the side
guide plates, and also move the rear edge guide to the edge of the
paper.
4 Push in the tray until it locks into place.
2
Reminder
Do not load above the limit level on the side guide plate.
Be sure that the side guide plates and rear edge guide are securely
aligned to the paper; otherwise the machine cannot detect the correct
paper size, or machine trouble may occur.
1st TAB
2nd TAB
3rd TAB
1st TAB
2nd TAB
3rd TAB
Example: 9 Tabbed sheets loaded in position for 3 finished sets.
3 FINISHED SETS
