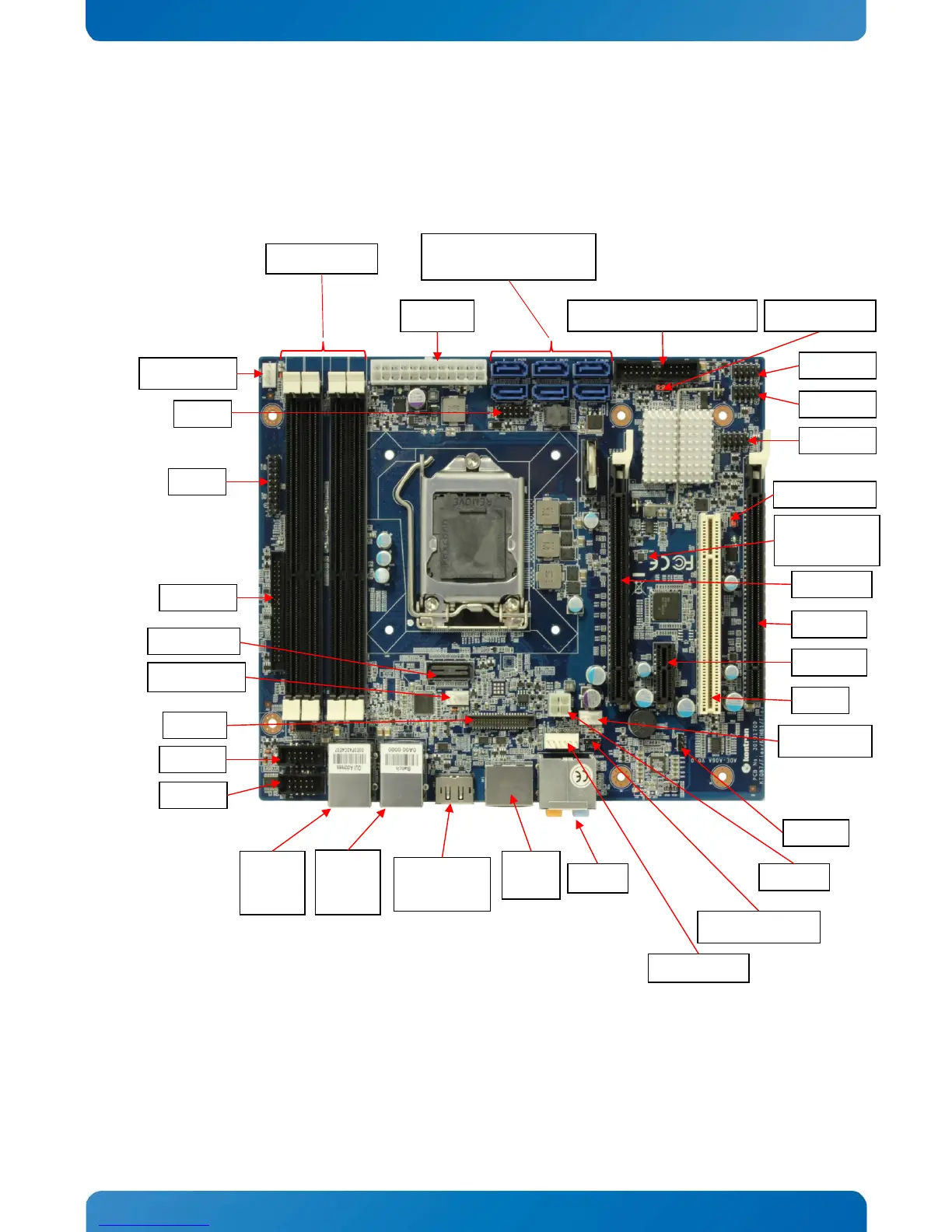

Kontron KTH81/mITX - KTQ87;Flex (KTH81;Flex) - frontside

KTD-N0882-I Page 31 Connector Location
KTQ87/KTH81 Users Guide
Sys_Fan1
CPU_Fan
LPC
SPI
Feature
ATX24P
COM1
COM2
SATA4 SATA0 SATA2
SATA1 SATA5 SATA3
PCI
LVDS
ATX4P
KBD/MSE
PCIex1
XDP (*)
Sys_Fan2
FRONTPNL, USB10/11
USB6/7
USB8/9
USB4/5
PCIex16
PCIex4
SPDIF
Front Speakers
Load default
Always On
DIMM4/2/3/1
Audio
DP1
DP0
DP2
(Q87 only)
LAN2
USB1
USB0
LAN1
USB3
USB2
(*) = Not Mounted.
SATA2 & SATA3 on Q87 only.
H81: SATA4 & SATA5 is SATA Gen.2
(DIMM4 & 2 only
on KTQ87/Flex)
System
temp. (U97)
4.2 KTQ87/Flex (KTH81/Flex) - frontside
