Kontron KTH81/mITX - South Bridge Configuration

KTD-N0882-I Page 79 BIOS - Advanced
KTQ87/KTH81 Users Guide
South Bridge Configuration
Function
Selection
Description
Port 80h Cycles
LPC Bus
PCI Bus
Control where the Port 80h cycles are sent.
State After G3
State S5
State S0
Specify what state to switch to when power is
re-applied after a power failure (G3 state).
PS/2 Legacy device wake
Disabled
Wake from S3 Only
Wake from S4 Only
Wake from S3 and S4
Wake from S5 Only
Wake from S3, S4 and S5
Allow wake and/or power-on with PS/2
keyboard or mouse.

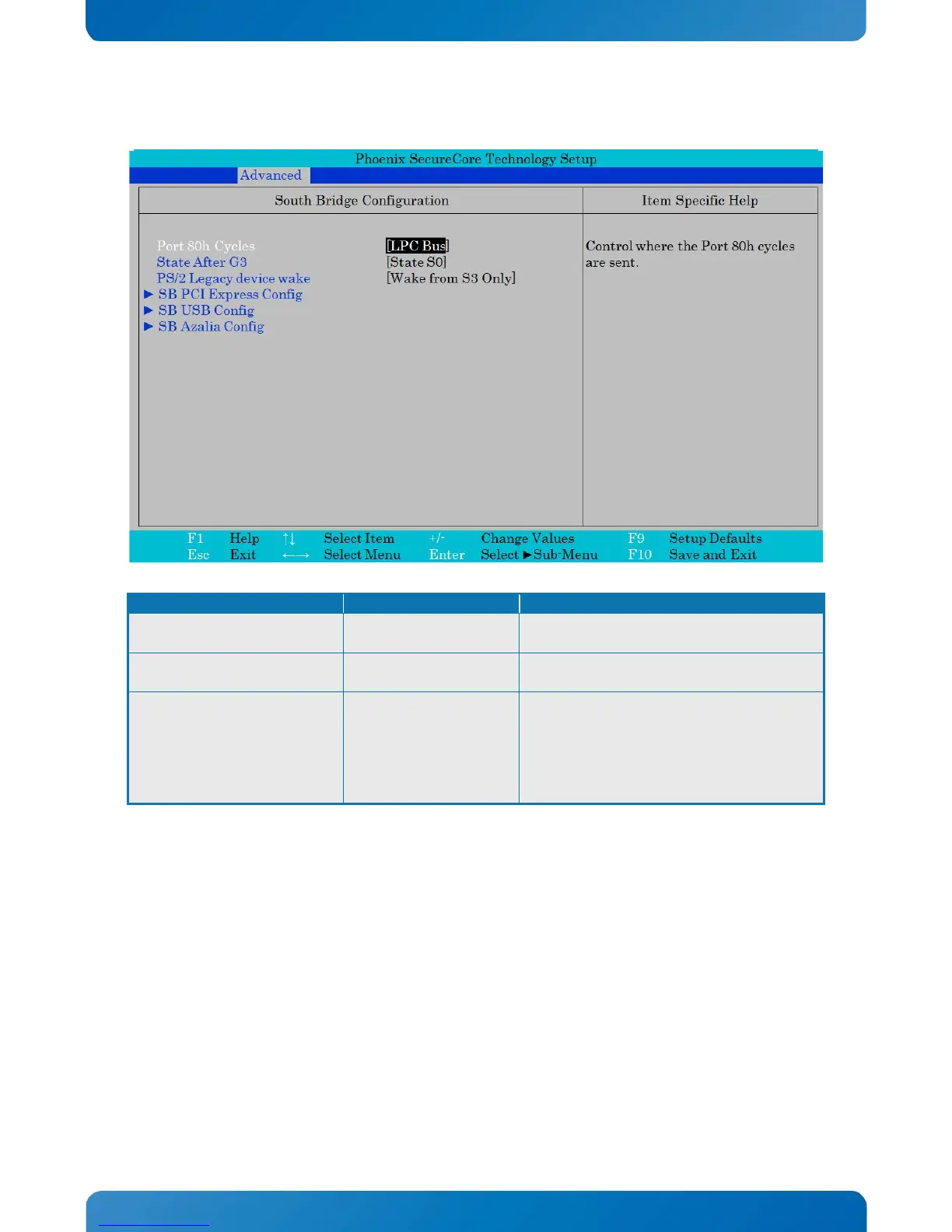

Phoenix SecureCore Technology Setup
Advanced
South Bridge Configuration Item Specific Help
Port 80h Cycles
State After G3
PS/2 Legacy device wake
► SB PCI Express Config
► SB USB Config
► SB Azalia Config
[LPC Bus]
[State S0]
[Wake from S3 Only]
Control where the Port 80h cycles
are sent.
F1
Help
↑↓
Select Item
+/-
Change Values
F9
Setup Defaults
Esc
Exit
←→
Select Menu
Enter
Select ►Sub-Menu
F10
Save and Exit
