KTD-N0882-I Page 78 BIOS - Advanced
KTQ87/KTH81 Users Guide
PEG Port Configuration
Function
Selection
Description
PEG –Gen X
Auto
Gen1
Gen2
Gen3
Configure PEG0 B0:D1:F0 Speed.
PEG1 – Gen X
Auto
Gen1
Gen2
Gen3
Configure PEG1 B0:D1:F1 Speed.
PEG2 – Gen X
Auto
Gen1
Gen2
Gen3
Configure PEG2 B0:D1:F2 Speed.
Always Enable PEG
Disabled
Enabled
Enable PEG.
PEG ASPM
Disabled
L0S
L1
L0S And L1
Auto
PEG ASPM Settings.
De-emphasis Control
-6 dB
-3.5 dB
DeEmphasis control for PEG

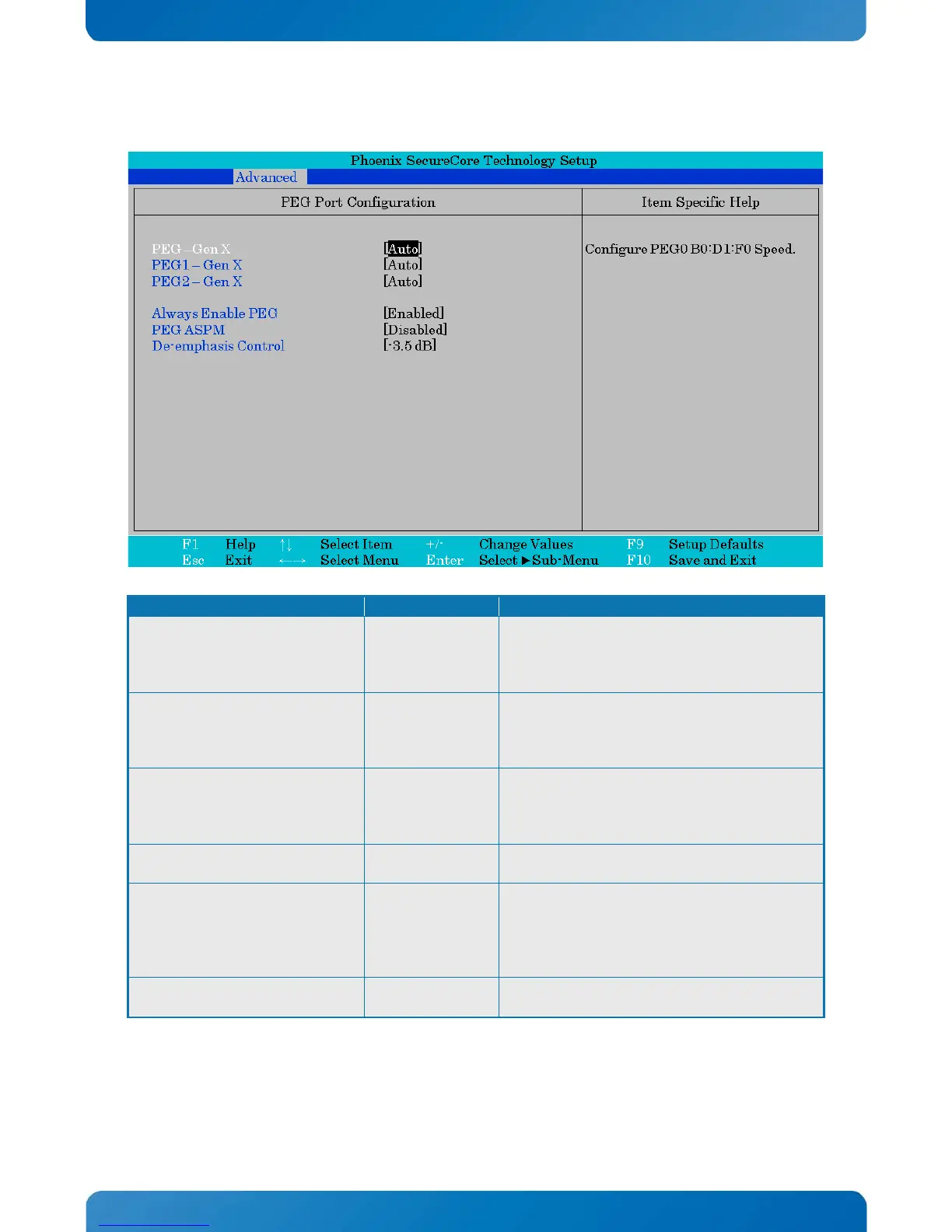

Phoenix SecureCore Technology Setup
Advanced
PEG Port Configuration Item Specific Help
PEG –Gen X
PEG1 – Gen X
PEG2 – Gen X
Always Enable PEG
PEG ASPM
De-emphasis Control
[Auto]
[Auto]
[Auto]
[Enabled]
[Disabled]
[-3.5 dB]
Configure PEG0 B0:D1:F0 Speed.
F1
Help
↑↓
Select Item
+/-
Change Values
F9
Setup Defaults
Esc
Exit
←→
Select Menu
Enter
Select ►Sub-Menu
F10
Save and Exit
