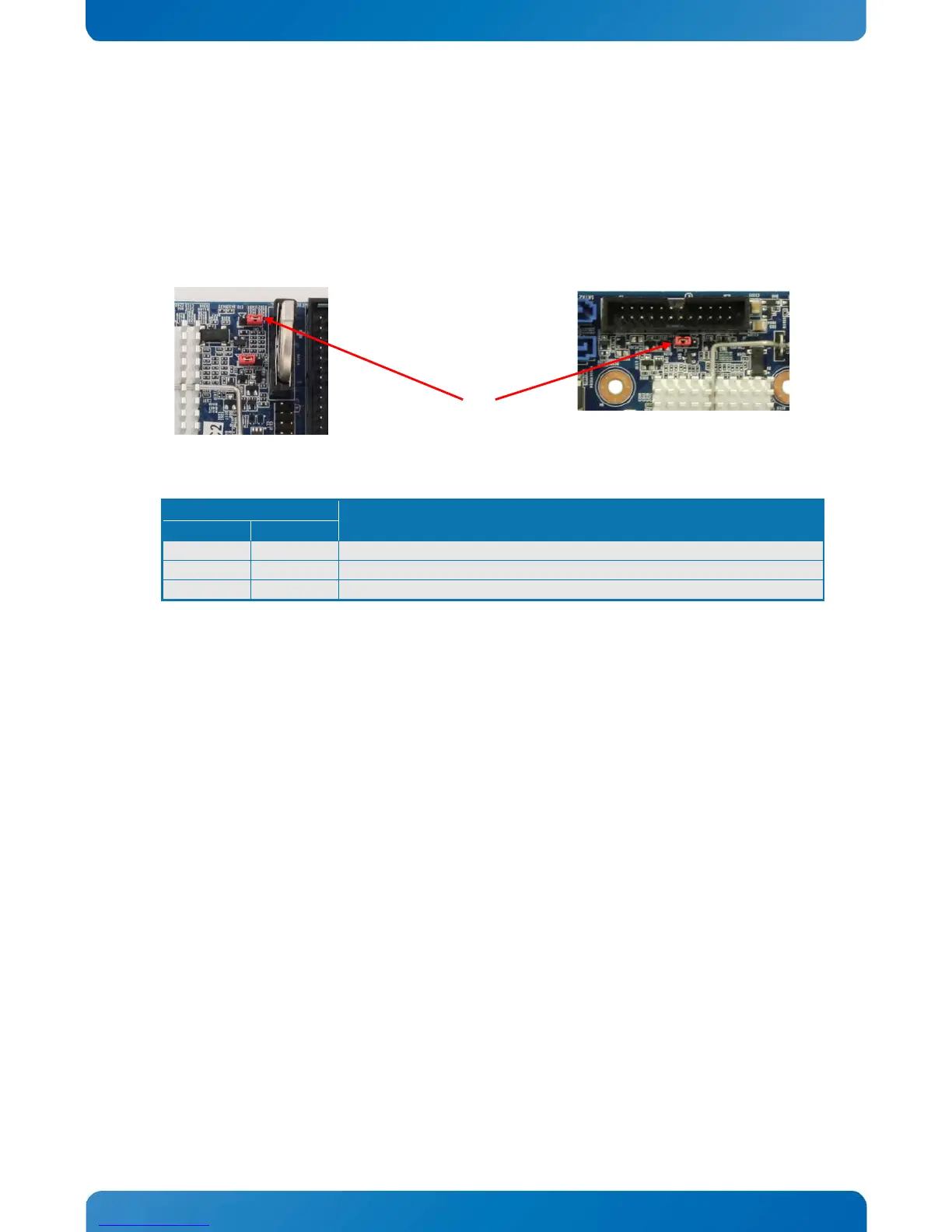

Always ON Jumper
(Shown in Default position)
7.13 “Always On” (Always On) (A_ON)
The “Always On” can be used to implement hardware controlled Always ON by jumper. When “Always On” is
selected, then the board will power up automatically when power is connected.
The board can still be shut down by PWRBTN_IN# (power button in) activation (via Front Panel connector).
Always On
Description
pin1-2
pin2-3
X
-
Always On selection
-
X
Default position
-
-
No function. Note: may load default BIOS settings after several minutes
