Flex, Total System power example

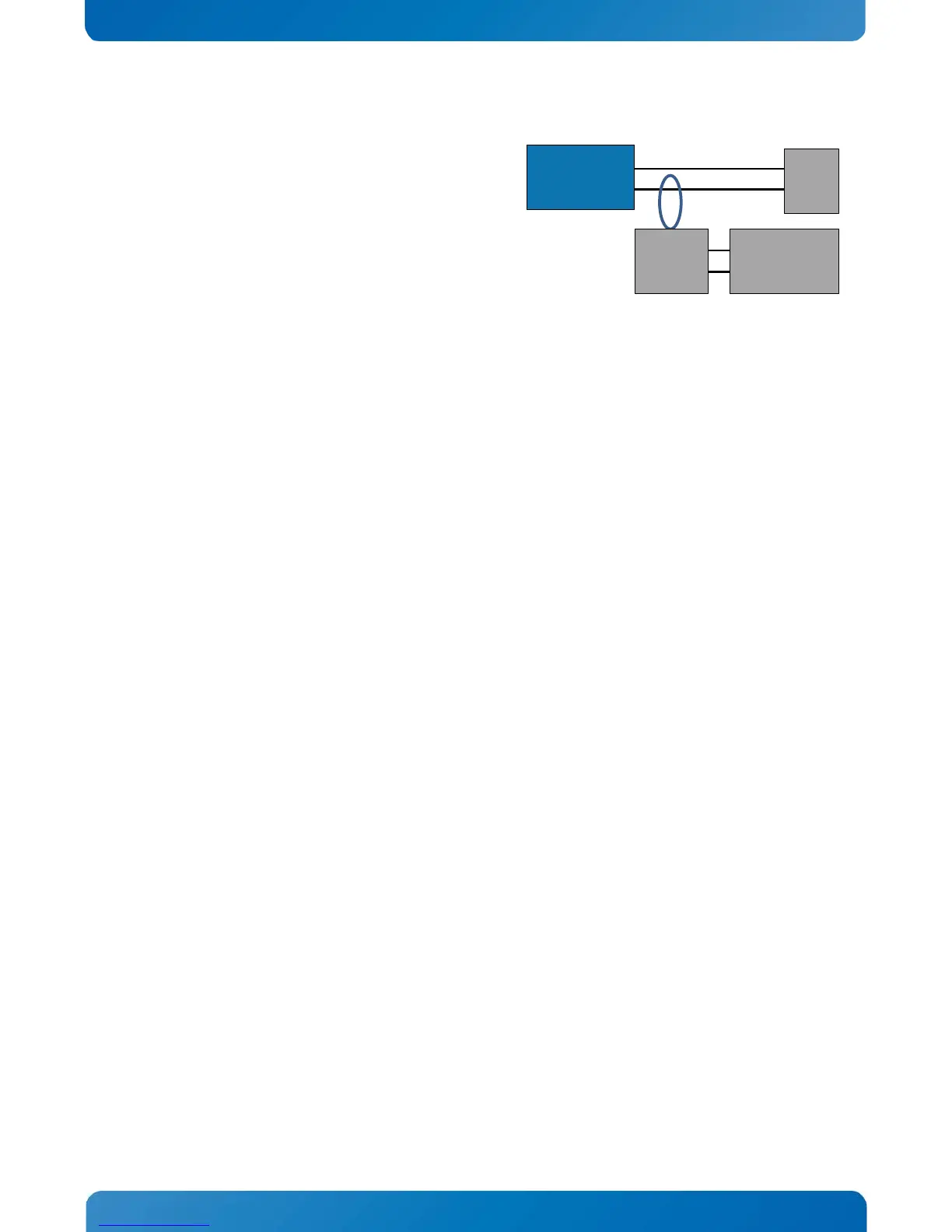

The principal test system and test equipment used
1. 12V active cooler (Delta AUC0912D)
2. USB Keyboard/Mouse (Lemel)
3. Graphic Card (HD 7750)
4. PCI Card (Intel 82557 10/100 ethernet pci adapter)
5. PCI-e Cards (TUSB7320 DEMO EVM REV C(PCIEx1 Card)
Intel® 82575EB Gigabit Network Conection (PCIEx4 Card))
6. 3.5” HDD: WD WD500AAKX-001CA0, Seagate ST500DM002 & ST9160310AS, WD WD5000AAKX-00ERMA0
7. ATX 400W Power (GPB400S)
8. Oscilloscope (Tektronix DPO 4054)
9. Current Probe (Tektronix TCP0030 Current Probe)
10. USB Flash: Transcend JetFlash 4GB, ADATA C906 8GB, TDK 8GB, Kingston DTI/1G
11. Monitors: ASUS VS209N,ViewSonic VA1912MA-LED
12. Memory: SAMSUNG M391B1G73BH0-CK0 8GB PC3-12800E-11-11-E3
13. Intel Haswell CPU: QFZQ 2.20GHz (35W), QEEG 2.30GHz (45W), QE74 2.90GHz (65W)
Note: The power consumption of Display and HDD are not included.
Low Power Configuration Setup:
KTQ87/Flex equipped with Internal graphics, 2x SATA disks, PCI card, CPU (i5) 35W, 2x DIMM PC3-10600
(2x 2GB), 1x DP Monitor, Keyboard & Mouse. 1x 1-8GB USB Stick.
Medium Power Configuration Setup:
KTQ87/Flex equipped with Internal graphics, 4x SATA disks, PCI card, PCIex4 card, CPU (i5) 45W, 4x DIMM
PC3-12800 (4x 4GB), 2x DP Monitors, Keyboard & Mouse. 2x 1-8GB USB Stick.
High Power Configuration Setup:
KTQ87/Flex equipped with PCIex16 Gen3 Graphic card, 4x SATA disks, PCI Card, PCIex1 card, PCIex4 card,
CPU (i7) 65W, 4x DIMM PC3-12800 (4x 8Gb), 2x DP Monitors, Keyboard & Mouse, 4x 1-8GB USB Sticks
Note: KTH81/Flex power results are similar to KTQ87/Flex.
