KTD-N0882-I Page 81 BIOS - Advanced
KTQ87/KTH81 Users Guide

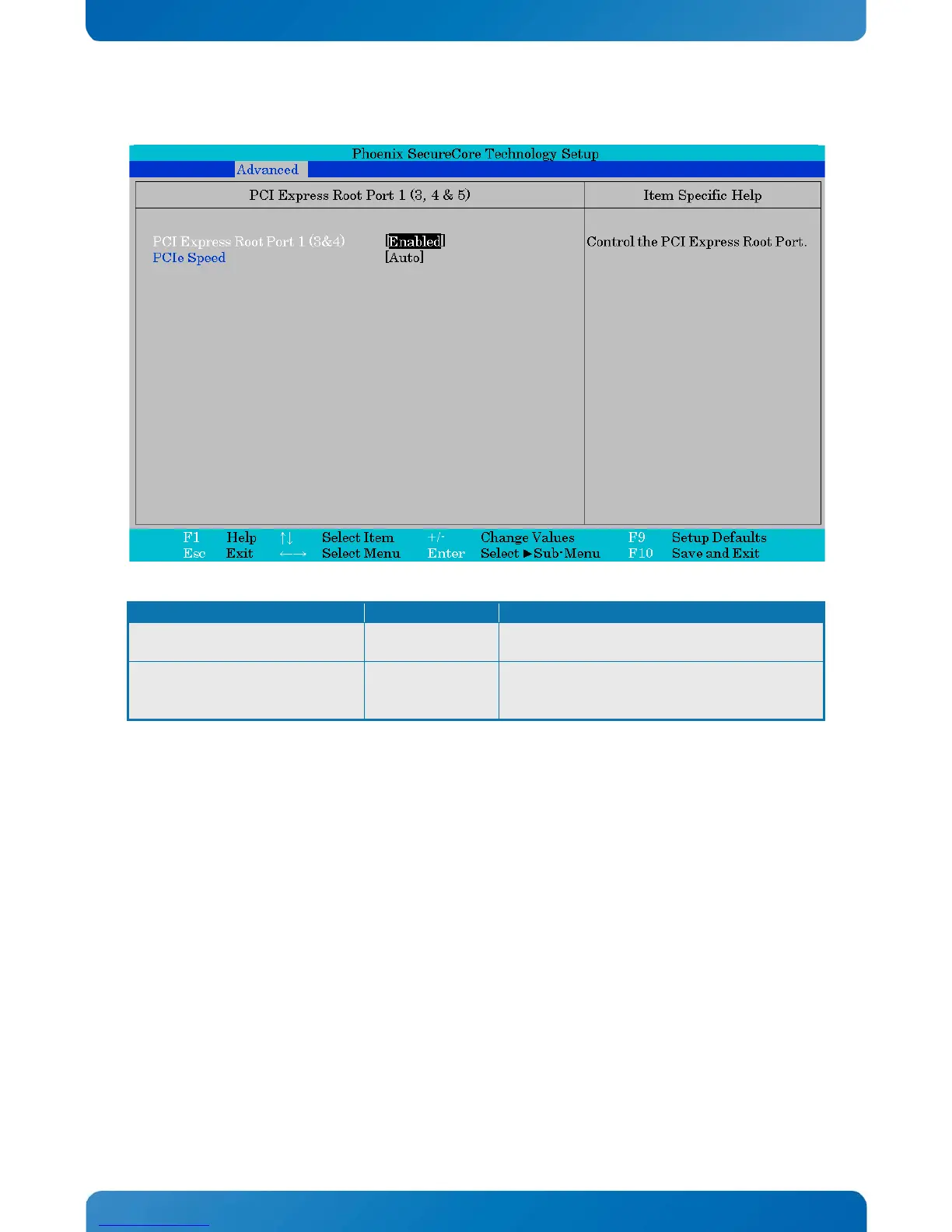

PCI Express Root Port 1 (3, 4 & 5)
Phoenix SecureCore Technology Setup
Advanced
PCI Express Root Port 1 (3, 4 & 5) Item Specific Help
PCI Express Root Port 1 (3&4)
PCIe Speed
[Enabled]
[Auto]
Control the PCI Express Root Port.
F1
Help
↑↓
Select Item
+/-
Change Values
F9
Setup Defaults
Esc
Exit
←→
Select Menu
Enter
Select ►Sub-Menu
F10
Save and Exit
Function
Selection
Description
PCI Express Root Port x
(x= 1, 3,4 or 5)
Disabled
Enabled
Control the PCI Express Root Port.
PCIe Speed
Auto
Gen1
Gen2
Select PCIe Speed to Gen1 or Gen2.
