Korg minilogue User Manual

4
Controls and Connections
Front Panel Controls

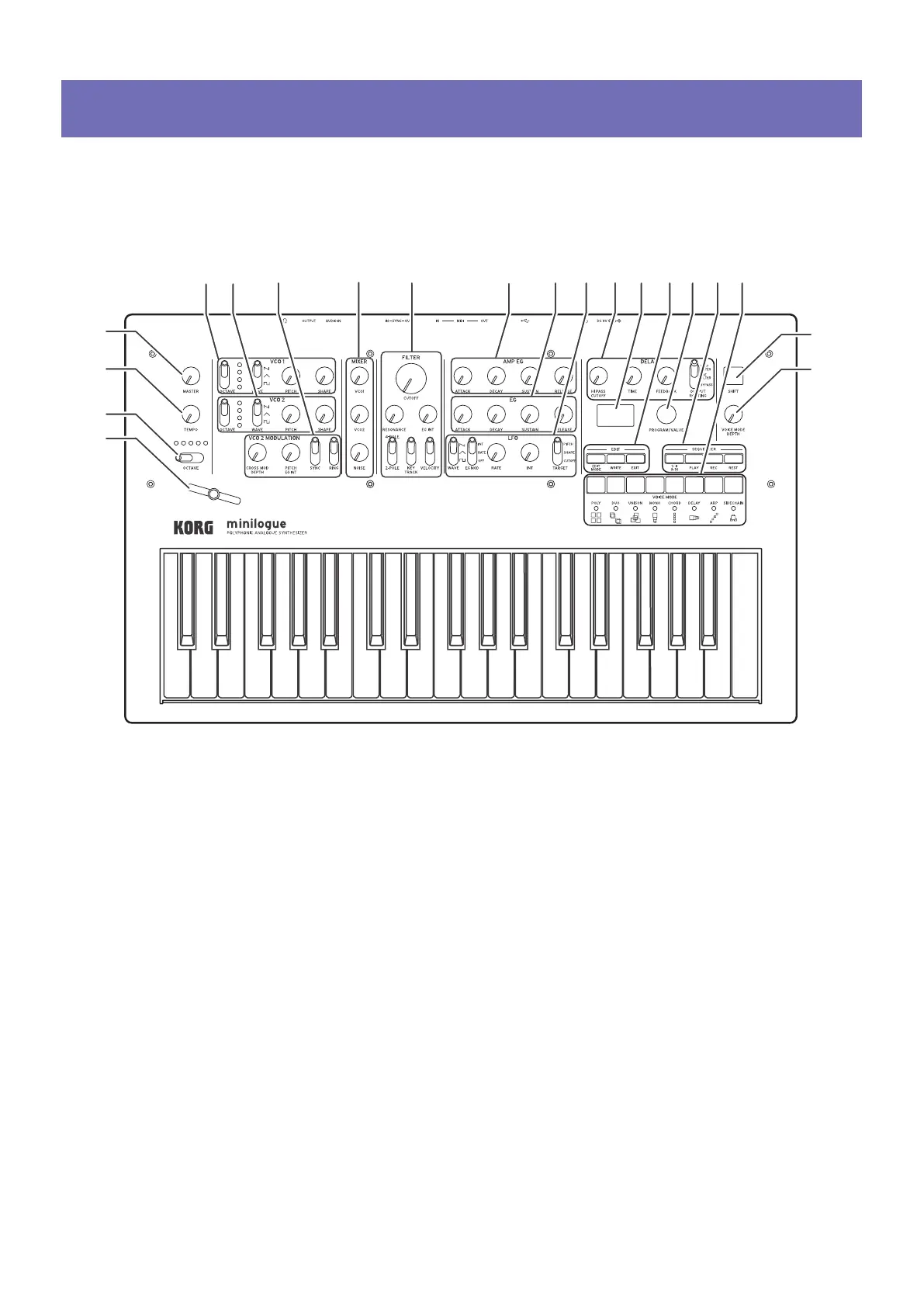

This diagram shows the layout of the front panel knobs, switches, and buons.
1
2
3
4
56 78910
11 12 13 15 17 18
19
20
16
14
1.
MASTER knob
2.
TEMPO knob
3.
OCTAVE switch
4.
Slider
5.
VCO 1
6.
VCO 2
OCTAVE switch
WAVE switch
PITCH knob
SHAPE knob
7.
VCO 2 MODULATION
CROSS MOD DEPTH knob
PITCH EG DEPTH knob
SYNC switch
RING switch
8.
MIXER
VCO 1 knob
VCO 2 knob
NOISE knob
9.
FILTER
CUTOFF knob
RESONANCE knob
EG INT knob
FILTER TYPE switch
KEY TRACK switch
VELOCITY switch
10.
AMP EG
11.
EG
ATTACK knob
DECAY knob
SUSTAIN knob
RELEASE knob
12.
LFO
WAVE switch
EG MOD switch
RATE knob
INT knob
TARGET switch
13.
DELAY
HI PASS CUTOFF knob
TIME knob
FEEDBACK knob
OUTPUT ROUTING switch
14.
Display
15.
EDIT
EDIT MODE buon
EXIT buon
WRITE buon
16.
PROGRAM/VALUE knob
17.
SEQUENCER
1–8/9–16 buons
PLAY buon
REC buon
REST buon
18.
Buttons 1–8
19.
SHIFT button
20.
VOICE MODE DEPTH knob

Korg minilogue Specifications

General

Product type	Analog synthesizer
Product color	Silver
User presets quantity	100
Keyboard number of keys	37
Maximum polyphony (notes)	4
Display type	OLED
Built-in display	Yes
Headphone outputs	1
DC input voltage	9 V
Power source type	AC

Weight and Dimensions

Depth	300 mm
Width	500 mm
Height	85 mm
Weight	2800 g
