Effects
Mono-Mono Serial (Mono-Mono)
82: P4EQ - Mt. Delay
(Parametric 4-Band EQ -
Multitap Delay)
This effect combines a mono four-band parametric equalizer
and a multitap delay.
83: Comp - Wah
(Compressor - Wah/Auto Wah)
This effect combines a mono compressor and a wah. You can
change the order of the connection.
P4EQ
a [E]Trim 0...100
Sets the parametric EQ input
level
b
[E]B1 Cutoff
[Hz]
20...1.00k
Sets the center frequency of
Band 1
Q 0.5...10.0 Sets the bandwidth of Band 1
Gain [dB] –18...+18 Sets the gain of Band 1
c
[E]B2 Cutoff
[Hz]
50...5.00k
Sets the center frequency of
Band 2
Q 0.5...10.0 Sets the bandwidth of Band 2
Gain [dB] –18...+18 Sets the gain of Band 2
d
[E]B3 Cutoff
[Hz]
300...10.00k
Sets the center frequency of
Band 3
Q 0.5...10.0 Sets the bandwidth of Band 3
Gain [dB] –18...+18 Sets the gain of Band 3
e
[E]B4 Cutoff
[Hz]
500...20.00k
Sets the center frequency of
Band 4
Q 0.5...10.0 Sets the bandwidth of Band 4
Gain [dB] –18...+18 Sets the gain of Band 4
MULTITAP DELAY
f
[D]Tap1 Time
[msec]
0.0...1360.0 Sets the Tap1 delay time
Tap1 Level 0...100
Sets the Tap1 output level
g
[D]Tap2 Time
[msec]
0.0...1360.0 Sets the Tap2 delay time
Feedback
(Tap2)
–100...+100 Sets the Tap2 feedback amount
h
[D]High
Damp [%]
0...100
Sets the damping amount in
the high range
i
[D]Mt.Delay
Wet/Dry
Dry,
1:99...99:1,
Wet
Sets the multitap delay effect
balance
Src Off...Tempo
Selects the Wet/Dry
modulation source for the
multitap delay
Amt –100...+100
Sets the Wet/Dry modulation
amount for the multitap delay
j
Wet/Dry
Dry,
1:99...99:1,
Wet
Balance between the wet and
dry signal
Src Off...Tempo
Table , “Dynamic Modulation
sources,” on page 283
Amt –100...+100 Amount of modulation source
Left
Right
FX Amt
FX Amt
FX Amt = 100: Mono In - Mono Out / FX Amt = 0: Stereo In - Stereo Out
Trim
+
Parametric 4Band EQ Multitap Delay
Feedback
High Damp
Delay
(2)
(1)
Mt.Dly FX Amt
COMPRESSOR
a
[C]
Sensitivity
1...100 Sets the sensitivity
b
[C]Attack 1...100 Sets the attack level
Output Level 0...100 Sets the compressor output level
c [C]EQ Trim 0...100 Sets the EQ input level
d
[C]Pre LEQ
Gain [dB]
–15...+15 Sets the gain of Low EQ
Pre HEQ Gain
[dB]
–15...+15 Sets the gain of High EQ
WAH
e
[W]Frequency
Bottom
0...100
Sets the lower limit of the wah
center frequency
Frequency Top 0...100
Sets the upper limit of the wah
center frequency
f
[w]Sweep
Mode
Auto,
D-mod,
LFO
Selects the control from auto-wah,
modulation source, and LFO
Src Off...Tempo
Selects the modulation source for
the wah when Sweep Mode=D-mod
g
[W]LFO
Frequency [Hz]
0.02...20.00 Sets the speed of the LFO
Resonance 0...100 Sets the resonance amount
LPF Off, On
Switches the wah low pass filter on
and off
h
[W]Wet/Dry
Dry,
1 : 99...99 : 1,
Wet
Sets the wah effect balance
Src Off...Tempo
Selects the Wet/Dry modulation
source for the wah
Amt –100...+100
Sets the Wet/Dry modulation
amount for the wah
iRouting
Comp Wah,
Wah Comp
Switches the order of the
compressor and wah
j
Wet/Dry
Dry, 1:99...99:1,
Wet
Balance between the wet and dry
signal
Src Off...Tempo
Table , “Dynamic Modulation
sources,” on page 283
Amt –100...+100 Amount of modulation source
Left
Right
FX Amt
FX Amt
FX Amt
FX Amt = 100: Mono In - Mono Out / FX Amt = 0: Stereo In - Stereo Out
+
Compressor
Routing
Wah/Auto Wah
Wah
D
-mod
Envelope
Sweep Mode
D-mod
Auto
LFO
LFO
LEQ HEQ
EQ Trim
Output Level
Envelope - Control
Comp

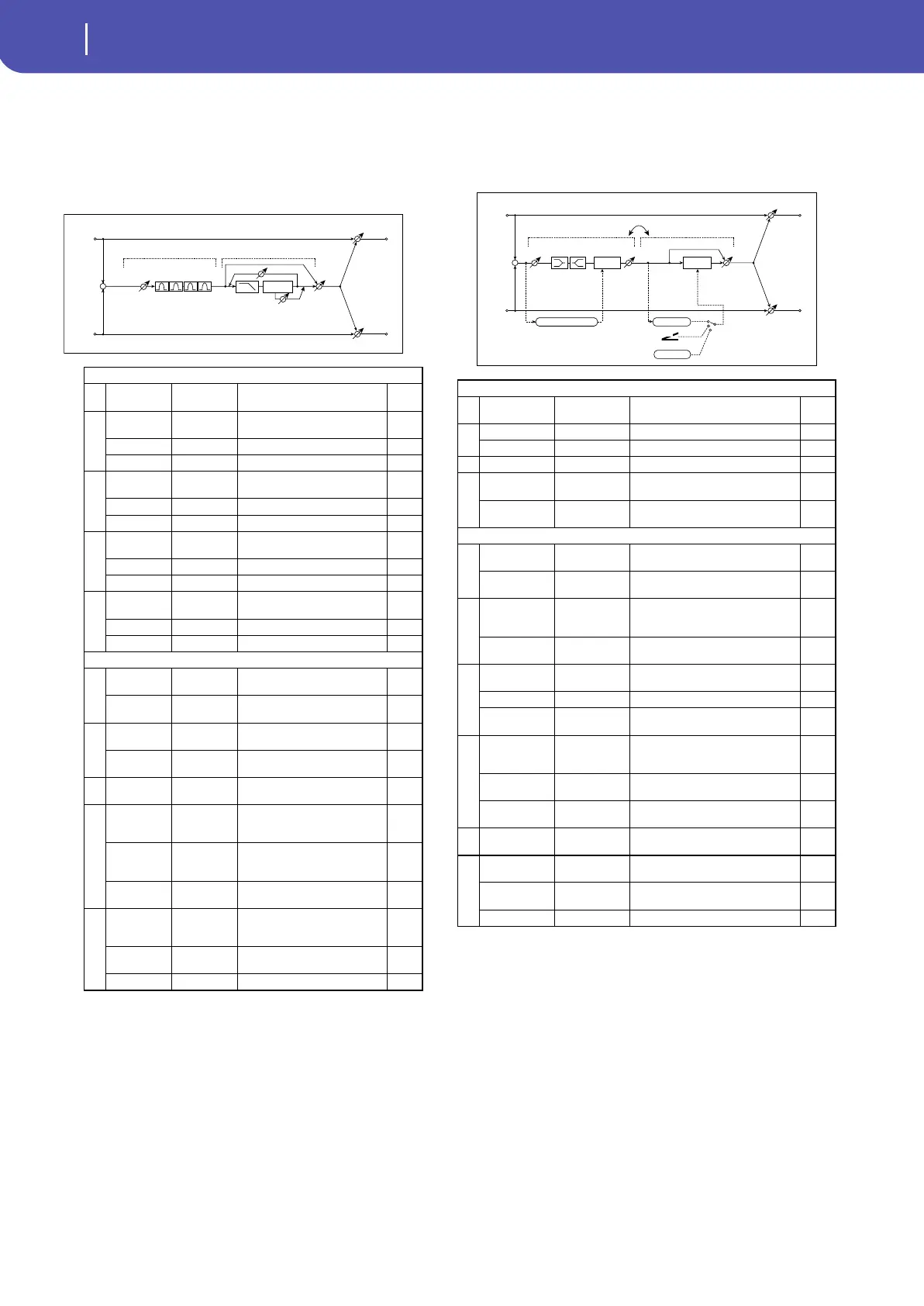

Pa300 User Manual v150 (English).book Page 330 Saturday, March 29, 2014 5:29 PM
