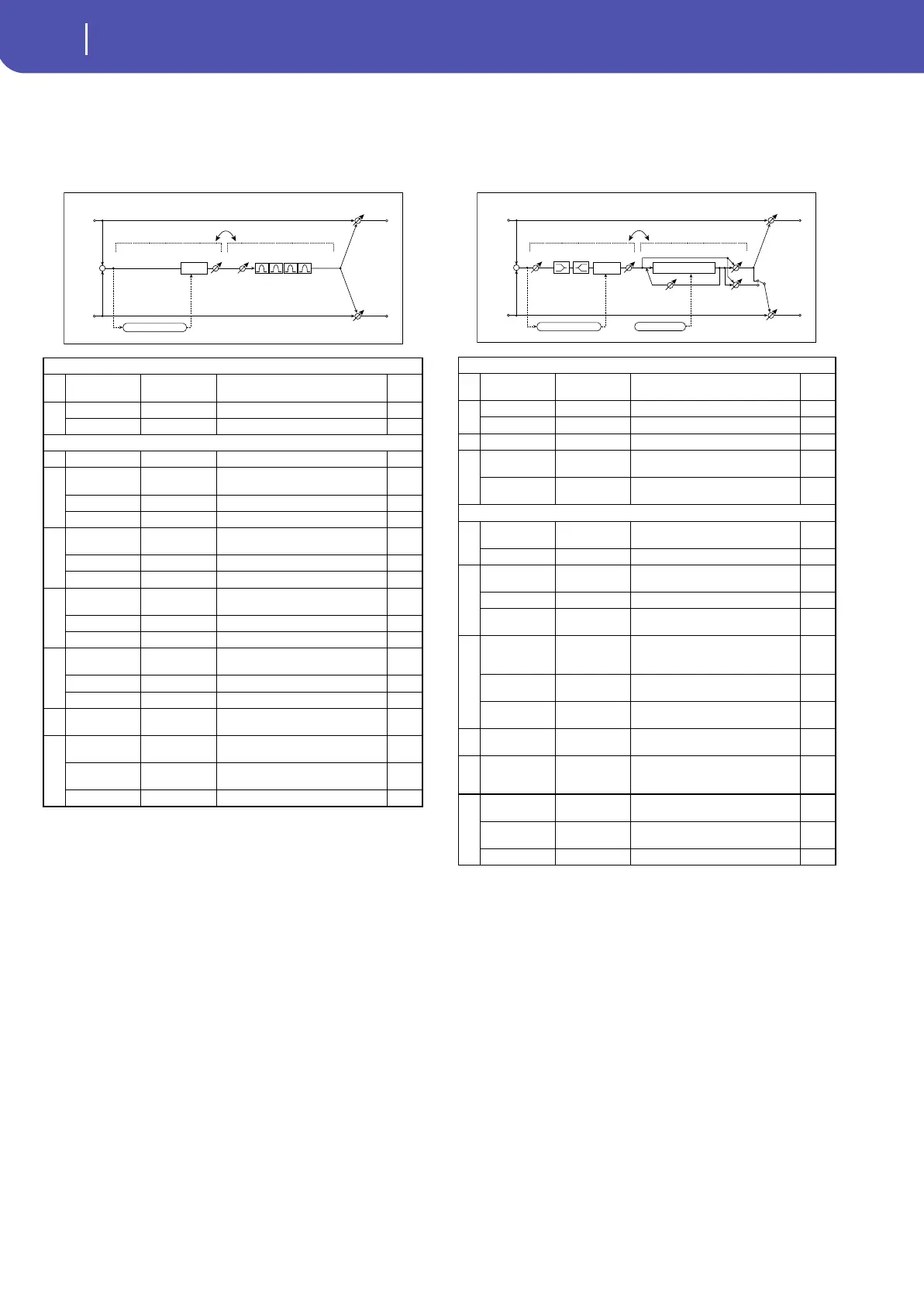

332
Effects
Mono-Mono Serial (Mono-Mono)
86: Comp - P4EQ
(Compressor - Parametric 4-Band EQ)
This effect combines a mono compressor and a four-band para-
metric equalizer. You can change the order of the effects.
87: Comp - Cho/Flng
(Compressor - Chorus/Flanger)
This effect combines a mono compressor and a chorus/flanger.
You can change the order of the effects.
h: [F]Output Mode
i: Routing
When Wet Invert is selected, the right channel phase of the cho-
rus/flanger effect sound is inverted. This creates pseudo-stereo
effects and adds spread.
However, if a mono-input type effect is connected after this
effect, the left and right sounds may cancel each other, eliminat-
ing the chorus/flanger effects.
When “Routing” is set to Flanger→ Comp, “[F]Output Mode”
will be set to Normal.
COMPRESSOR
a
[C]
Sensitivity
1...100 Sets the sensitivity
b
[C]Attack 1...100 Sets the attack level
Output Level 0...100 Sets the compressor output level
P4EQ
c [E]Trim 0...100 Sets the parametric EQ input level
d
[E]B1 Cutoff
[Hz]
20...1.00k Sets the center frequency of Band 1
Q 0.5...10.0 Sets the bandwidth of Band 1
Gain [dB] –18...+18 Sets the gain of Band 1
e
[E]B2 Cutoff
[Hz]
50...5.00k Sets the center frequency of Band 2
Q 0.5...10.0 Sets the bandwidth of Band 2
Gain [dB] –18...+18 Sets the gain of Band 2
f
[E]B3 Cutoff
[Hz]
300...10.00k Sets the center frequency of Band 3
Q 0.5...10.0 Sets the bandwidth of Band 3
Gain [dB] –18...+18 Sets the gain of Band 3
g
[E]B4 Cutoff
[Hz]
500...20.00k Sets the center frequency of Band 4
Q 0.5...10.0 Sets the bandwidth of Band 4
Gain [dB] –18...+18 Sets the gain of Band 4
hRouting
Comp P4EQ,
P4EQ Comp
Switches the order of the
compressor and parametric EQ
i
Wet/Dry
Dry, 1:99...99:1,
Wet
Balance between the wet and dry
signal
Src Off...Tempo
Table , “Dynamic Modulation
sources,” on page 283
Amt –100...+100 Amount of modulation source
Left
Right
FX Amt
FX Amt
FX Amt = 100: Mono In - Mono Out / FX Amt = 0: Stereo In - Stereo Out
+
Routing
Compressor
Trim
Parametric 4Band EQ
Output Level
Envelope - Control
Comp
COMPRESSOR
a
[C]
Sensitivity
1...100 Sets the sensitivity
b
[C]Attack 1...100 Sets the attack level
Output Level 0...100 Sets the compressor output level
c [C]EQ Trim 0...100 Sets the EQ input level
d
[C]Pre LEQ
Gain [dB]
–15...+15 Sets the gain of Low EQ
Pre HEQ Gain
[dB]
–15...+15 Sets the gain of High EQ
CHORUS/FLANGER
e
[F]LFO
Frequency [Hz]
0.02...20.00 Sets the speed of the LFO
LFO Waveform Triangle, Sine Selects the LFO Waveform
f
[F]Delay Time
[msec]
0.0...1350.0 Sets the delay time
Depth 0...100 Sets the depth of LFO modulation
Feedback –100...+100
Sets the feedback amount
g
[F]Cho/Flng
Wet/Dry
-Wet, -
1:99...Dry...99:1
, Wet
Sets the effect balance of the
chorus/flanger
,
Src Off...Tempo
Selects the Wet/Dry modulation
source for the chorus/flanger
Amt –100...+100
Sets the Wet/Dry modulation
amount for the chorus/flanger
h
[F]Output
Mode
Normal,
Wet Invert
Selects the output mode for the
chorus/flanger
iRouting
Comp
Flanger,
Flanger Comp
Switches the order of the
compressor and chorus/flanger
j
Wet/Dry
Dry, 1:99...99:1,
Wet
Balance between the wet and dry
signal
Src Off...Tempo
Table , “Dynamic Modulation
sources,” on page 283
Amt –100...+100 Amount of modulation source
Left
Right
FX Amt
FX Amt
FX Amt = 100: Mono In - Stereo Out / FX Amt = 0: Stereo In - Stereo Out
+
Routing
Compressor
Chorus/Flanger
Chorus/Flanger
Feedback
LFO: Tri / Sine
Cho/Flng FX Amt
Normal
Wet Invert
Output Mode
–
+
LEQ HEQ
EQ Trim
Comp
Output Level
Envelope - Control
Pa300 User Manual v150 (English).book Page 332 Saturday, March 29, 2014 5:29 PM
