Korg PA4X User Manual

Choosing the SongBook Entries |103
Choosing the SongBook Entries from the Book list
A large database is already included with the instrument. You may browse
through this database and choose a SongBook Entry.
Choose a SongBook Entry
1 While you are in Style Play or Song Play mode, press the SONGBOOK but-
ton to open the SongBook page.
2 Browse through the Entries.
Use the scrollbar or the VALUE controls to scroll.
Keep the SHIFT button pressed and touch one of the arrows of the scrollbar
to jump to the previous or next alphabetical section.

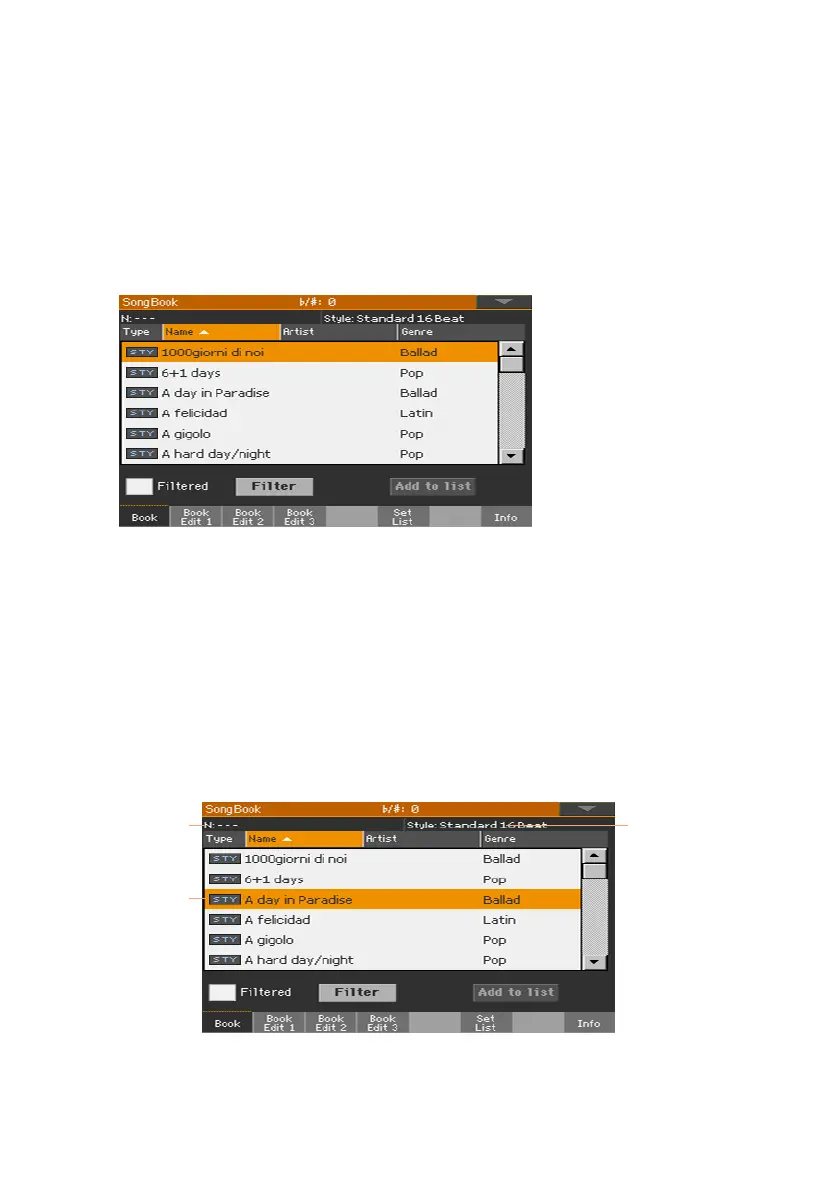

3 When the Entry you are looking for appears in the display, touch it to assign
it to the Arranger or the Player.
After choosing the Entry, its name will appear just under the title bar (N:),
next to the name of the associated Style or Song. The name of the Entry in
the list will appear highlighted.
Name of
the selected
Entry
Selected
Entry
Associated
Style or Song
The associated Style or Song will be recalled. The Song will be assigned to
Player 1, unless it is already playing.

Korg PA4X Specifications

General

Polyphony	128 voices
Type	Arranger Keyboard
USB	USB to Host, USB to Device
Keyboard	76 keys (PA4X-76) / 61 keys (PA4X-61), semi-weighted with velocity and aftertouch
Sound Engine	EDS-X (Enhanced Definition Synthesis – Expanded)
Display	7-inch TFT color touchscreen
Connectivity	MIDI In/Out/Thru, USB to Host, USB to Device
Dimensions	PA4X-61: 980 x 364.4 x 125.56 mm
Sounds	512 User Sounds
Sequencer	16-track sequencer
Audio Inputs	2 x 1/4" (line), 1 x XLR (mic)
Audio Outputs	Left/Right, Headphones, Sub 1/2
Storage	Internal SSD and microSD slot
Weight	PA4X-76: 16.3 kg / PA4X-61: 13.9 kg
