Korg PA4X User Manual

106| Using the SongBook
3 If you like, select a Meter and/or a range of Tempo values to be included in
your filter criteria.
4 Delete the filter criteria you don’t need:
▪ Touch the Clear button to delete the text string or reset the parameter to a
default value.
▪ Touch the Clear All button to reset all filter criteria.

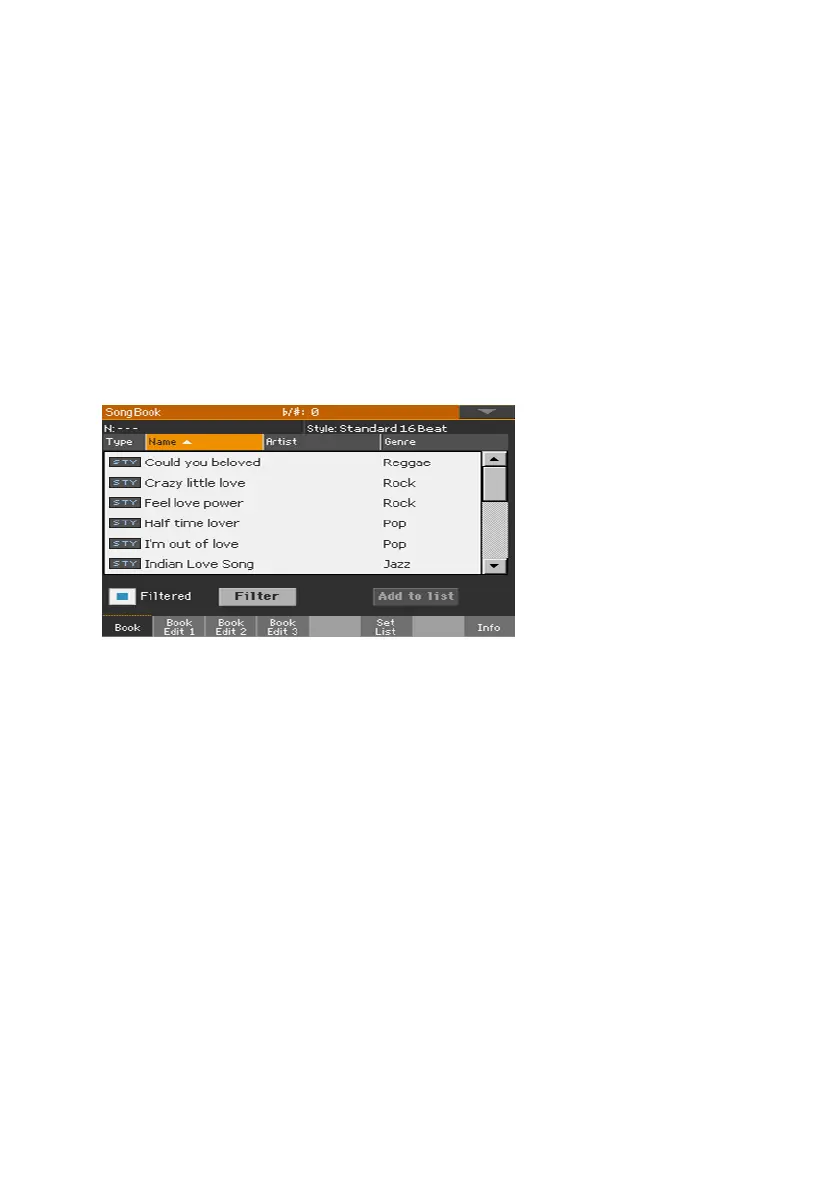

5 When done editing the filter parameters, touch the OK button to close the
Filter dialog and return to the Book page.
The Filtered checkbox will be automatically selected, and the filter will be
activated. Only the Entries matching the entered criteria will be seen in the
Book list.
Remove the filters and see all the Entries again
▪ Touch the Filtered checkbox to deselect it.

Korg PA4X Specifications

General

Polyphony	128 voices
Type	Arranger Keyboard
USB	USB to Host, USB to Device
Keyboard	76 keys (PA4X-76) / 61 keys (PA4X-61), semi-weighted with velocity and aftertouch
Sound Engine	EDS-X (Enhanced Definition Synthesis – Expanded)
Display	7-inch TFT color touchscreen
Connectivity	MIDI In/Out/Thru, USB to Host, USB to Device
Dimensions	PA4X-61: 980 x 364.4 x 125.56 mm
Sounds	512 User Sounds
Sequencer	16-track sequencer
Audio Inputs	2 x 1/4" (line), 1 x XLR (mic)
Audio Outputs	Left/Right, Headphones, Sub 1/2
Storage	Internal SSD and microSD slot
Weight	PA4X-76: 16.3 kg / PA4X-61: 13.9 kg
