Korg PA4X User Manual

20| Powering up

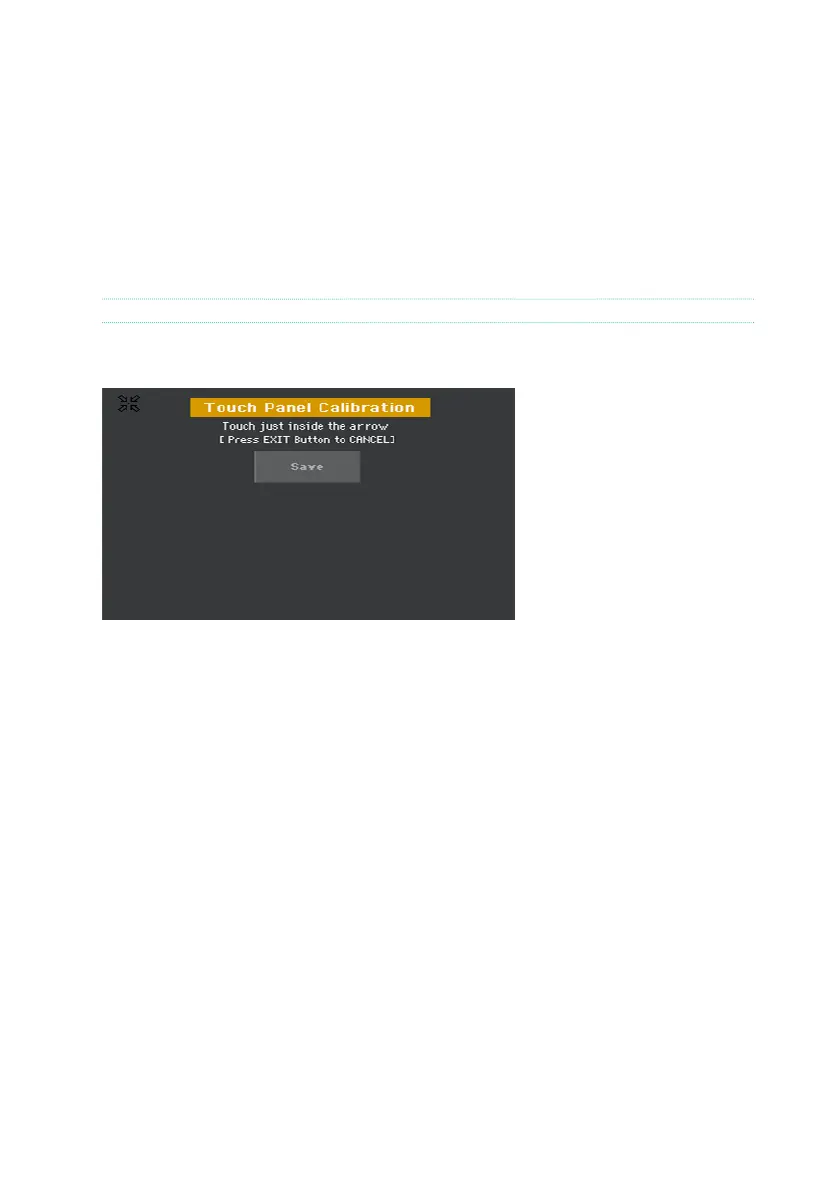

Calibrating the touch screen
Calibrating the screen
From time to time (for example, after loading a new operating system), cali-
brating your Color TouchView™ display may be necessary to make pointing
more precise.
Warning: Do not use sharp objects, or you will damage your screen!
1 Keep the GLOBAL button pressed, until the Touch Panel Calibration page
appears.
2 First touch exactly inside the set of arrows in the upper left corner of the
display.
3 The arrows will subsequently move to the other corners of the display. Touch
exactly inside them.
4 Finally, touch Save to confirm the new calibration.
▪ In case you want to exit and cancel the calibration, press the EXIT button
before completing the procedure.

Korg PA4X Specifications

General

Polyphony	128 voices
Type	Arranger Keyboard
USB	USB to Host, USB to Device
Keyboard	76 keys (PA4X-76) / 61 keys (PA4X-61), semi-weighted with velocity and aftertouch
Sound Engine	EDS-X (Enhanced Definition Synthesis – Expanded)
Display	7-inch TFT color touchscreen
Connectivity	MIDI In/Out/Thru, USB to Host, USB to Device
Dimensions	PA4X-61: 980 x 364.4 x 125.56 mm
Sounds	512 User Sounds
Sequencer	16-track sequencer
Audio Inputs	2 x 1/4" (line), 1 x XLR (mic)
Audio Outputs	Left/Right, Headphones, Sub 1/2
Storage	Internal SSD and microSD slot
Weight	PA4X-76: 16.3 kg / PA4X-61: 13.9 kg
