Korg PA4X User Manual

Adjust the display brightenss |21
Adjust the display brightenss
Brightness can be adjusted to match the ambient’s light.
▪ Keep the MENU button pressed, and use the VALUE controls to adjust the
display brightness.
Tilting the display
For optimal visibility under any seating position, the display’s tilt angle can
be adjusted.
Lifting the display
1 Press the UNLOCK button to unlatch the display.
2 Keep the UNLOCK button pressed, and adjust the tilt angle.
3 Release the UNLOCK button to fix the display to the current position.
Closing the display
1 Keep the UNLOCK button pressed, and accompany the display down.

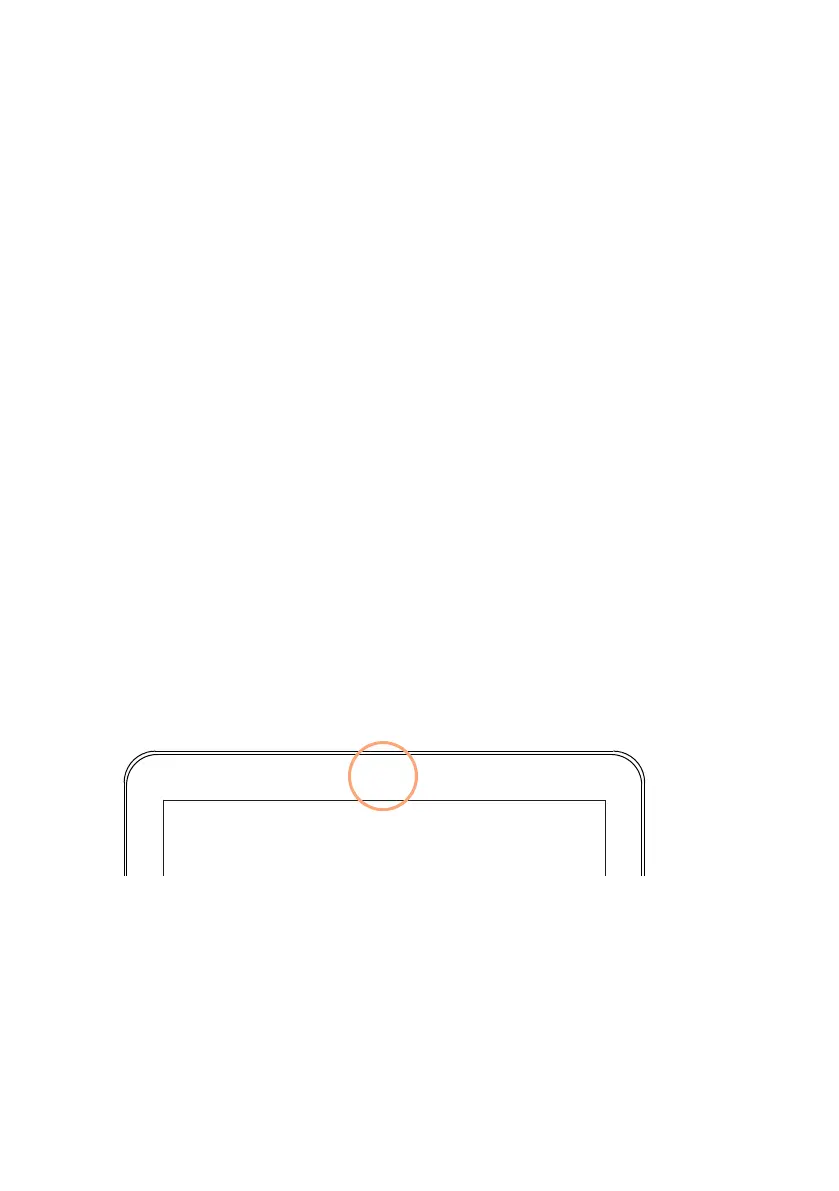

2 Release the UNLOCK button, and gently press the center of the top border
of the display to lock it in the initial position.

Korg PA4X Specifications

General

Polyphony	128 voices
Type	Arranger Keyboard
USB	USB to Host, USB to Device
Keyboard	76 keys (PA4X-76) / 61 keys (PA4X-61), semi-weighted with velocity and aftertouch
Sound Engine	EDS-X (Enhanced Definition Synthesis – Expanded)
Display	7-inch TFT color touchscreen
Connectivity	MIDI In/Out/Thru, USB to Host, USB to Device
Dimensions	PA4X-61: 980 x 364.4 x 125.56 mm
Sounds	512 User Sounds
Sequencer	16-track sequencer
Audio Inputs	2 x 1/4" (line), 1 x XLR (mic)
Audio Outputs	Left/Right, Headphones, Sub 1/2
Storage	Internal SSD and microSD slot
Weight	PA4X-76: 16.3 kg / PA4X-61: 13.9 kg
