Korg PA4X User Manual

The user interface in detail |25

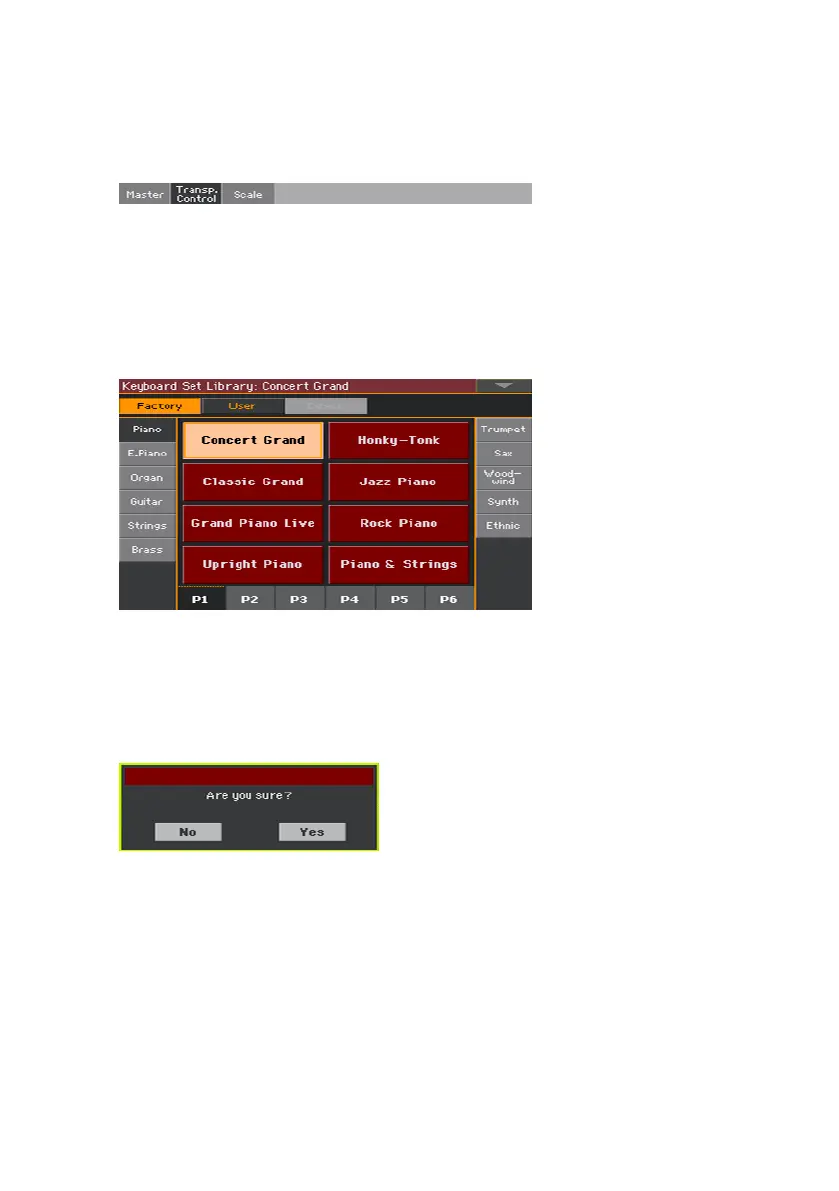

Pages and tabs
Parameters are grouped into separate pages, to be selected by touching the
corresponding tabs on the lower area of the display.
Overlapping windows
Several windows, like the Style Select or Sound Select, the Global, the Media,
or the Lyrics, overlap the current window. After you select an item in the win-
dow, or press the EXIT button, the window closes, and the underlying page
is shown again. (The following example is the Keyboard Set Select window).
Dialogs
Similar to selecting windows, dialogs overlap the underlaying page. Touch
one of the button on the display to give Pa4X an answer, and the dialog will
close.
Page menus
Touch the down-pointing arrow icon in the upper right corner of each page,
and a menu with suitable commands for the current page will appear.

Korg PA4X Specifications

General

Polyphony	128 voices
Type	Arranger Keyboard
USB	USB to Host, USB to Device
Keyboard	76 keys (PA4X-76) / 61 keys (PA4X-61), semi-weighted with velocity and aftertouch
Sound Engine	EDS-X (Enhanced Definition Synthesis – Expanded)
Display	7-inch TFT color touchscreen
Connectivity	MIDI In/Out/Thru, USB to Host, USB to Device
Dimensions	PA4X-61: 980 x 364.4 x 125.56 mm
Sounds	512 User Sounds
Sequencer	16-track sequencer
Audio Inputs	2 x 1/4" (line), 1 x XLR (mic)
Audio Outputs	Left/Right, Headphones, Sub 1/2
Storage	Internal SSD and microSD slot
Weight	PA4X-76: 16.3 kg / PA4X-61: 13.9 kg
