Korg PA4X User Manual

26| Interface basics

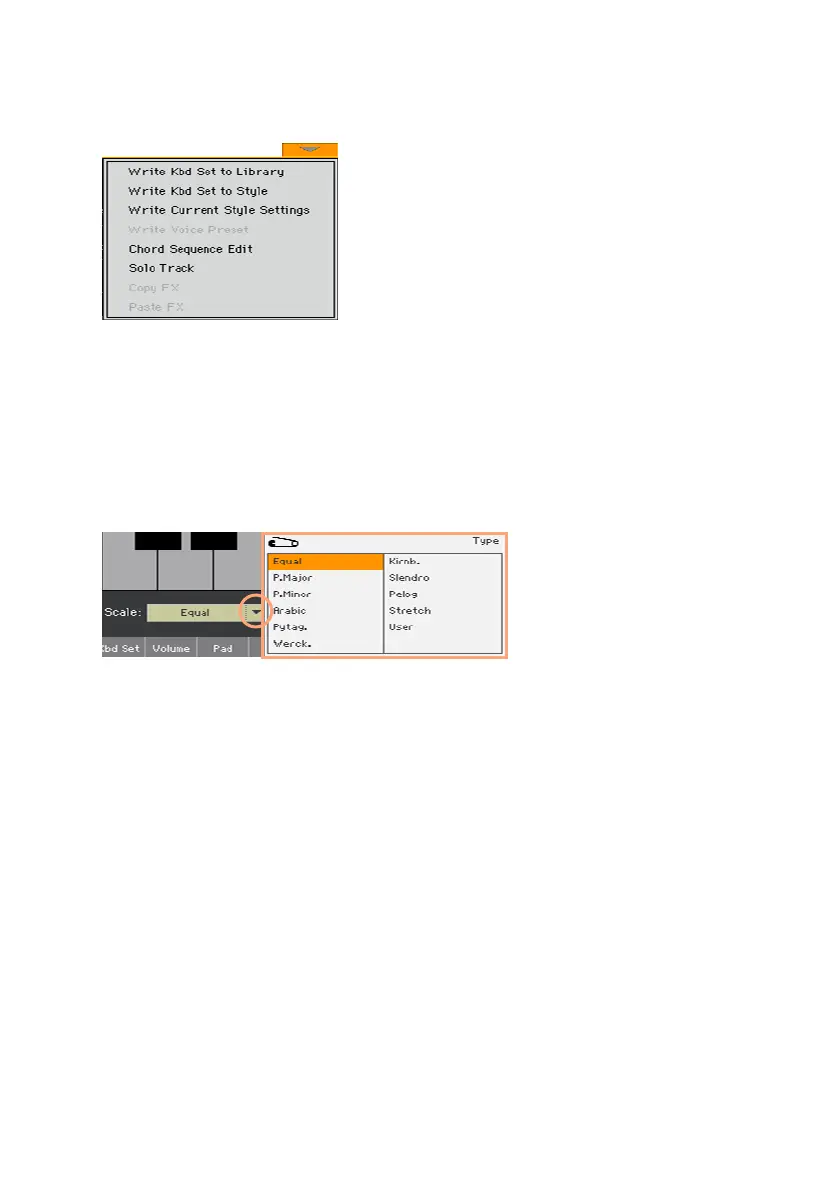

Touch one of the available commands to select it. (Or, touch anywhere else
on the screen to make it disappear, with no command selected).
Pop-up menus
When a down-pointing arrow appears next to a parameter name, either
touch the arrow to open the pop-up menu and choose an option from there,
or use the VALUE controls to scroll the list of options.
If you want to make the menu disappear without selecting anything, touch
anywhere else on the display.
Lists and scrollbars
Files on storage media, as well as other kinds of data, are shown as lists. Use
the scrollbar to scroll the list content. Also, you can use the VALUE controls
to scroll.

Korg PA4X Specifications

General

Polyphony	128 voices
Type	Arranger Keyboard
USB	USB to Host, USB to Device
Keyboard	76 keys (PA4X-76) / 61 keys (PA4X-61), semi-weighted with velocity and aftertouch
Sound Engine	EDS-X (Enhanced Definition Synthesis – Expanded)
Display	7-inch TFT color touchscreen
Connectivity	MIDI In/Out/Thru, USB to Host, USB to Device
Dimensions	PA4X-61: 980 x 364.4 x 125.56 mm
Sounds	512 User Sounds
Sequencer	16-track sequencer
Audio Inputs	2 x 1/4" (line), 1 x XLR (mic)
Audio Outputs	Left/Right, Headphones, Sub 1/2
Storage	Internal SSD and microSD slot
Weight	PA4X-76: 16.3 kg / PA4X-61: 13.9 kg
