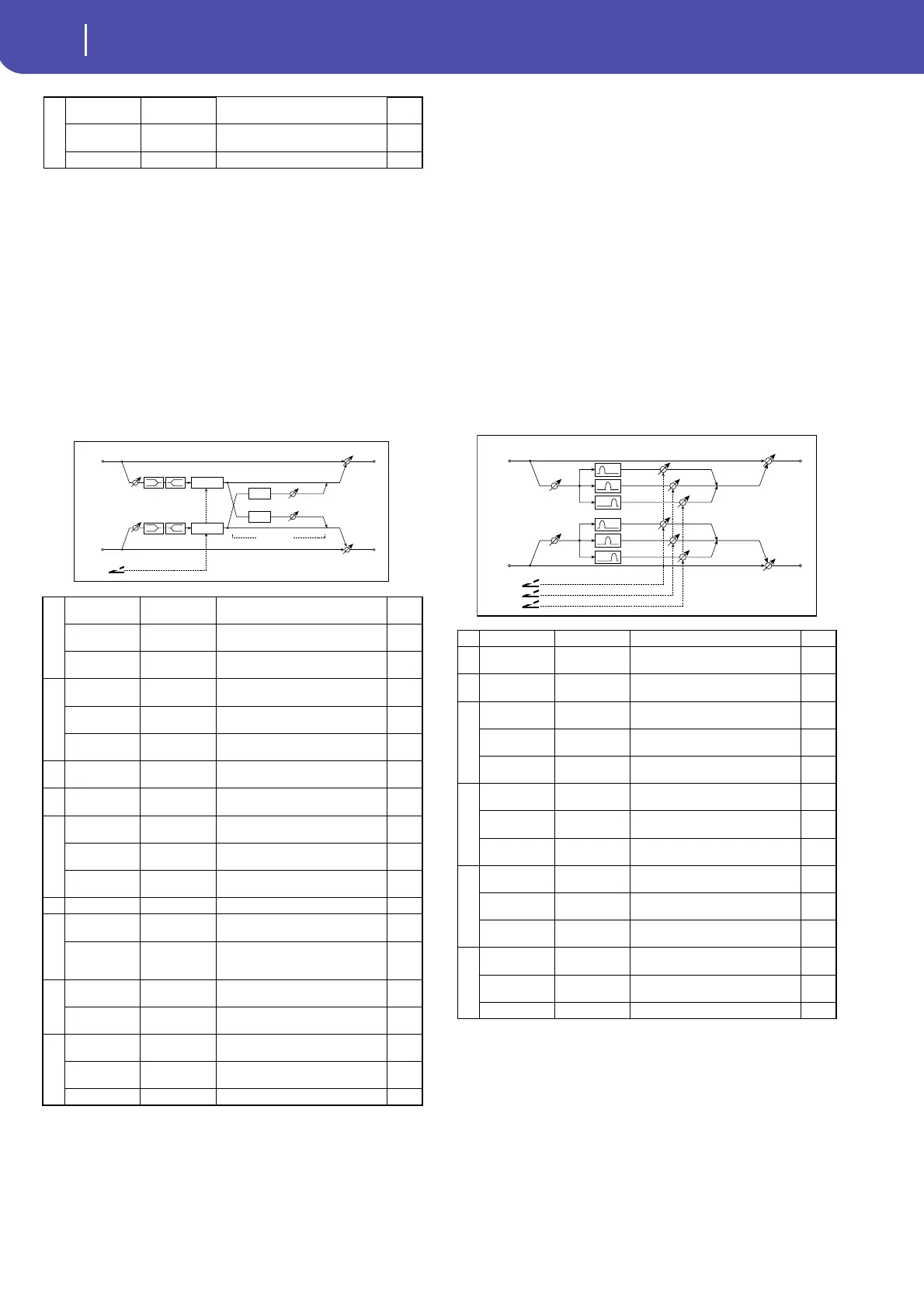

248
Effects
EQ and Filters (EQ/Filter)
a: Type
This parameter selects a combination of center frequencies for
each band. The center frequency of each band is shown in the
right of the screen.
You can configure a 21-Band Graphic EQ ranging from 80 Hz to
18 kHz if you route three Graphic 7-Band EQ effects in series,
with a setting of 7:Low, 9:Mid, and 11:High for each EQ.
8: St.Exciter/Enhncr
(Stereo Exciter/Enhancer)
This effect is a combination of the Exciter, which adds a punch
to the sound and the Enhancer, which adds spread and presence.
a: Exciter Blend
This parameter sets the depth (intensity) of the Exciter effect.
Positive values give a frequency pattern (to be emphasized) dif-
ferent from negative values.
b: Emphasis Freq
This parameter sets the frequency to be emphasized. Higher val-
ues will emphasize lower frequencies.
c: Enhancer Delay L [msec]
d: Enhancer Delay R [msec]
These parameters set the delay time for the Enhancer left and
right channel. Specifying a slightly different delay time for the
left and right channel will add a stereo image, depth, and width
to the sound.
9: Stereo Isolator
This is a stereo effect that separates the input signal into low,
mid, and high-frequency bands, and controls the volume of each
band independently. For example you can separately boost or cut
the kick, snare, and hi-hat sounds from a drum signal in real-
time.
j
Wet/Dry
Dry, 1:99...99:1,
Wet
Balance between the wet and dry
signal
Src Off...Tempo
Table , “Dynamic Modulation
sources,” on page 243
Amt –100...+100 Amount of modulation source
a
Exciter Blend –100...+100
Sets the intensity (depth) of the
Exciter effect
Src Off...Tempo
Selects the modulation source of the
Exciter intensity
Amt –100...+100
Sets the modulation amount of the
Exciter intensity
b
Emphasis Freq 0...70
Sets the frequency to be empha-
sized
Src Off...Tempo
Selects the modulation source of the
frequency to be emphasized
Amt –70...+70
Sets the amount of modulation of the
frequency to be emphasized
c
Enhancer
Delay L [msec]
0.0...50.0
Sets the delay time for the Enhancer
left channel
d
Enhancer
Delay R [msec]
0.0...50.0
Sets the delay time for the Enhancer
right channel
e
Enhancer
Depth
0...100
Sets the determines to what degree
the Enhancer effect is applied
Src Off...Tempo
Selects the modulation source of the
Enhancer width
Amt –100...+100
Sets the modulation amount of the
Enhancer width
f EQ Trim 0...100 Sets the 2-band EQ input level
g
Pre LEQ Fc
Low,
Mid-Low
Selects the cutoff frequency (low or
mid-low) of the low-range equalizer
Pre HEQ Fc
High,
Mid-High
Selects the cutoff frequency (high or
mid-high) of the high-range
equalizer
h
Pre LEQ Gain
[dB]
–15.0...+15.0 Gain of the Lo EQ
Pre HEQ Gain
[dB]
–15.0...+15.0 Gain of the High EQ
i
Wet/Dry
Dry, 1:99...99:1,
Wet
Balance between the wet and dry
signal
Src Off...Tempo
Table , “Dynamic Modulation
sources,” on page 243
Amt –100...+100 Amount of modulation source
Left
Right
FX Amt
FX Amt
Stereo In - Stereo Out
EQ Trim
LEQ HEQ
EQ Trim
Delay
Delay
Depth
D
-mod
Exciter
Exciter
Enhancer
a Trim 0...100 Sets the input level
b Low/Mid [Hz] 100...500
Sets the frequency at which the low
and mid bands are divided
c Mid/High [Hz] 2000...6000
Sets the frequency at which the mid
and high bands are divided
d
Low Gain [dB]
–Inf,
–59...+12
Sets the low-frequency gain
Src Off...Tempo
Selects the source that will
modulate low-frequency gain
Amt –72...+72
Sets the amount by which the low-
frequency gain will be modulated
e
Mid Gain [dB]
–Inf,
–59...+12
Sets the mid-frequency gain
Src Off...Tempo
Selects the modulation source for
mid-frequency gain
Amt –72...+72
Sets the amount by which the mid-
frequency gain will be modulated
f
High Gain [dB]
–Inf,
–59...+12
Sets the high-frequency gain
Src Off...Tempo
Selects the modulation source for
high-frequency gain
Amt –72...+72
Sets the amount by which the high-
frequency gain will be modulated
g
Wet/Dry
Dry, 1:99...99:1,
Wet
Balance between the wet and dry
signal
Src Off...Tempo
Table , “Dynamic Modulation
sources,” on page 243
Amt –100...+100 Amount of modulation source
D
-mod
D
-mod
D
-mod
Left
Right
FX Amt
FX Amt
Stereo In - Stereo Out
Trim
Isolator
Low
Mid
High
Trim
Low
Mid
High
