247
Effects
EQ and Filters (EQ/Filter)
Appendix

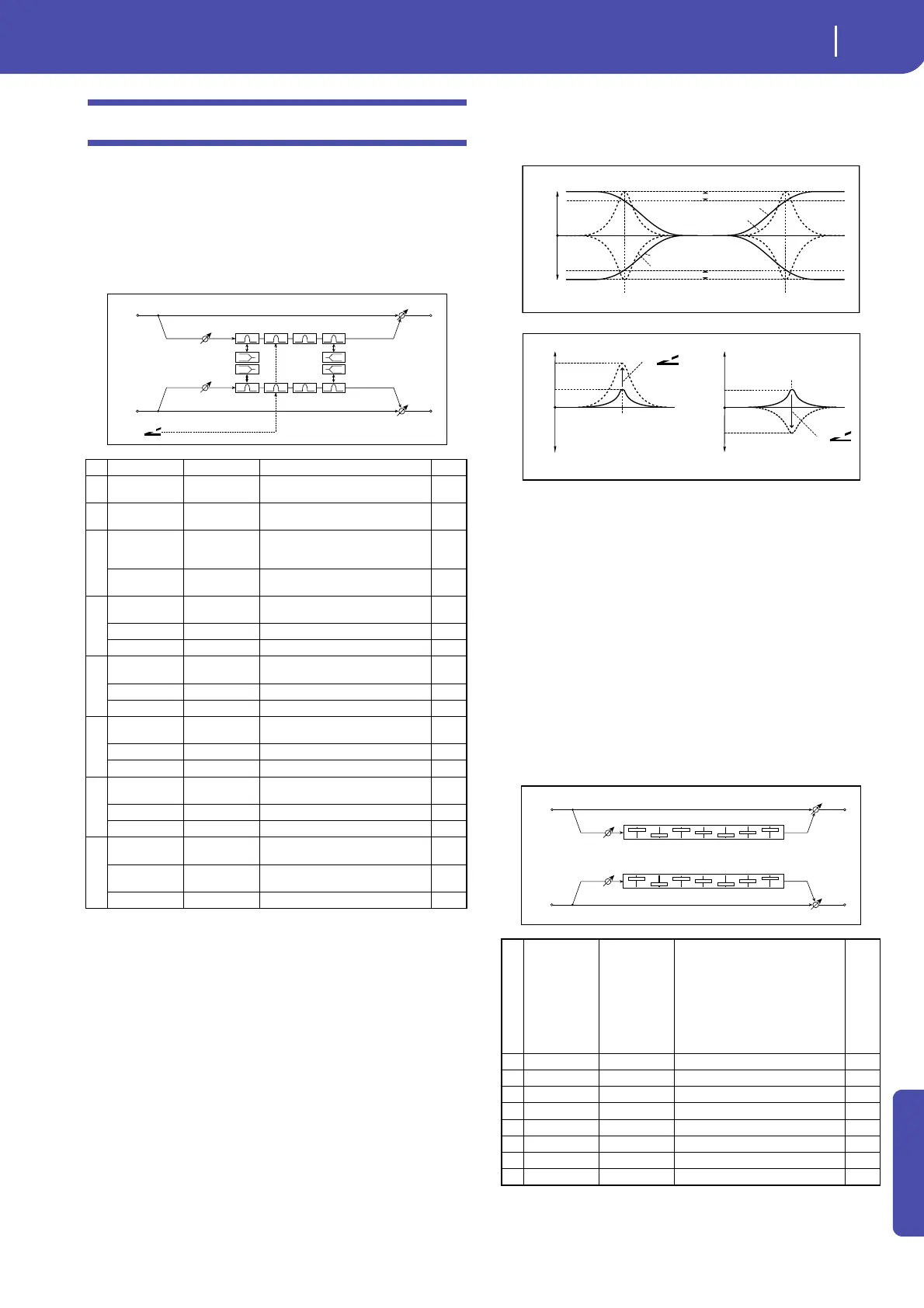

EQ and Filters (EQ/Filter)
6: St.Parametric4EQ
(Stereo Parametric 4-Band EQ)
This is a stereo 4-band parametric equalizer. You can select
peaking type or shelving type for Band 1 and 4. The gain of Band
2 can be controlled by dynamic modulation.
b: Band1 Type
c: Band4 Type
Selects a filter type for Band 1 and 4.
e, f, g, h: Q
These parameters set the bandwidth of each equalizer. The
higher the value, the narrower the band becomes.
d: Band2 Dynamic Gain Src
d: Amt [dB]
You can control the gain of Band 2 using the modulation source.
7: St. Graphic 7EQ
(Stereo Graphic 7-Band EQ)
This is a stereo 7-band graphic equalizer. The bar graph of the
gain setting for each band gives you a clear, visual idea of fre-
quency responses. You can select a center frequency setting for
each band from twelve types, according to the sound.
a Trim 0...100 Sets the input level
bBand1 Type
Peaking,
Shelving-Low
Selects the type of Band 1
cBand4 Type
Peaking,
Shelving-High
Selects the type of Band 4
d
Band2
Dynamic Gain
Src
Off...Tempo
Selects the modulation source of the
Band 2 gain
Amt [dB] –18.0...+18.0
Sets the modulation amount of
Band 2 gain
e
Band1 Cutoff
[Hz]
20...1.00k Sets the center frequency of Band 1
Q 0.5...10.0 Sets the bandwidth of Band 1
Gain [dB] –18.0...+18.0 Sets the gain of Band 1
f
Band2 Cutoff
[Hz]
50...10.00k Sets the center frequency of Band 2
Q 0.5...10.0 Sets the bandwidth of Band 2
Gain [dB] –18.0...+18.0 Sets the gain of Band 2
g
Band3 Cutoff
[Hz]
300...10.00k Sets the center frequency of Band 3
Q 0.5...10.0 Sets the bandwidth of Band 3
Gain [dB] –18.0...+18.0 Sets the gain of Band 3
h
Band4 Cutoff
[Hz]
500...20.00k Sets the center frequency of Band 4
Q 0.5...10.0 Sets the bandwidth of Band 4
Gain [dB] –18.0...+18.0 Sets the gain of Band 4
i
Wet/Dry
Dry, 1:99...99:1,
Wet
Balance between the wet and dry
signal
Src Off...Tempo
Table , “Dynamic Modulation
sources,” on page 243
Amt –100...+100 Amount of modulation source
Left
Right
FX Amt
FX Amt
Stereo In - Stereo Out
Band1 Band2 Band3 Band4
PEQ PEQ PEQ PEQ
LEQ
LEQ
HEQ
HEQ
PEQ PEQ PEQ PEQ
Trim
Trim
D
-mod
aType
1:Wide 1, 2:Wide
2, 3:Wide 3,
4:Half Wide 1,
5:Half Wide 2,
6:Half Wide 3,
7:Low,
8:Wide Low,
9:Mid, 10:Wide
Mid, 11:High,
12:Wide High
Selects a combination of center
frequencies for each band
b Trim 0...100 Sets the input level
c Band1 [dB] –18.0...+18.0 Sets the gain of Band 1
d Band2 [dB] –18.0...+18.0 Sets the gain of Band 2
e Band3 [dB] –18.0...+18.0 Sets the gain of Band 3
f Band4 [dB] –18.0...+18.0 Sets the gain of Band 4
g Band5 [dB] –18.0...+18.0 Sets the gain of Band 5
h Band6 [dB] –18.0...+18.0 Sets the gain of Band 6
i Band7 [dB] –18.0...+18.0 Sets the gain of Band 7
3dB
3dB
Band1 Cutoff
Band4 Cutoff
0dB
+Gain
–Gain
Band1 Type=Peaking
Band1 Type=Shelving Low
Band4 Type=Peaking
Band4 Type=Shelving High
Parametric 4EQ - Band1, Band4 Type
Band2 Cutoff
Band2 Cutoff
0dB
+6dB
+15dB
Band2 Gain[dB]= +6.0
Band2 Gain Mod Amount[dB]= +9.0
D
-mod
0dB
+6dB
–9dB
Band2 Gain[dB]= +6.0
Band2 Gain Mod Amount[dB]= –15.0
D
-mod
Parametric 4EQ - Band2 Gain Mod
Left
Right
FX Amt
FX Amt
Stereo In - Stereo Out
Band1 Band2 Band3 Band4
Trim
Trim
Band5 Band6 Band7
Band1 Band2 Band3 Band4 Band5 Band6 Band7
