289
Effects
Mono-Mono Serial (Mono-Mono)
Appendix

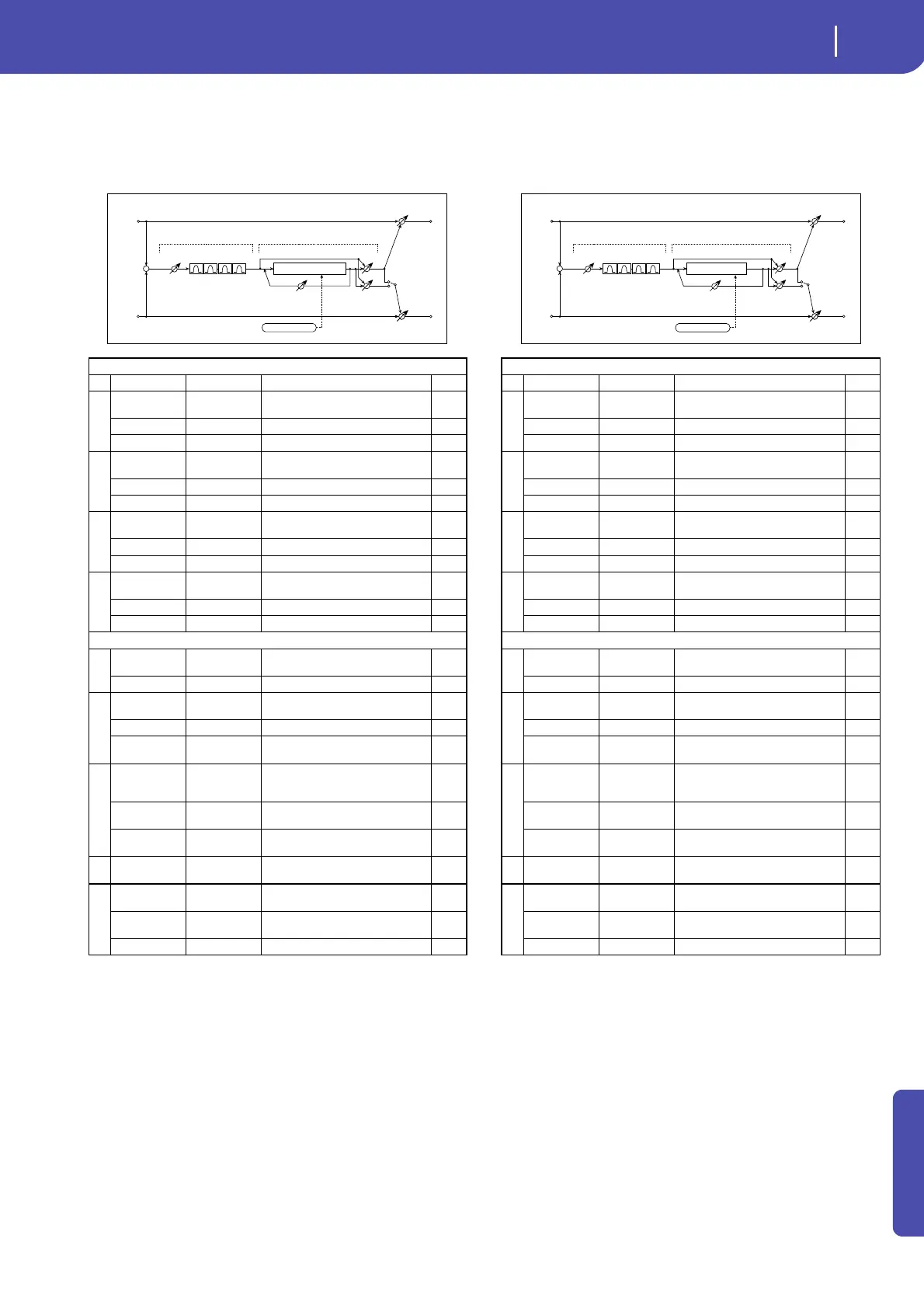

80: P4EQ - Cho/Flng
(Parametric 4-Band EQ - Chorus/Flanger)
This effect combines a mono four-band parametric equalizer
and a chorus/flanger.
i: Output Mode
When Wet Invert is selected, the right channel phase of the cho-
rus/flanger effect sound is inverted. This creates pseudo-stereo
effects and adds spread.
However, if a mono-input type effect is connected after this
effect, the left and right sounds may cancel each other, eliminat-
ing the chorus/flanger effects.
81: P4EQ - Phaser
(Parametric 4-Band EQ - Phaser)
This effect combines a mono four-band parametric equalizer
and a phaser.
P4EQ
a [E]Trim 0...100 Sets the parametric EQ input level
b
[E]B1 Cutoff
[Hz]
20...1.00k Sets the center frequency of Band 1
Q 0.5...10.0 Sets the bandwidth of Band 1
Gain [dB] –18...+18 Sets the gain of Band 1
c
[E]B2 Cutoff
[Hz]
50...5.00k Sets the center frequency of Band 2
Q 0.5...10.0 Sets the bandwidth of Band 2
Gain [dB] –18...+18 Sets the gain of Band 2
d
[E]B3 Cutoff
[Hz]
300...10.00k Sets the center frequency of Band 3
Q 0.5...10.0 Sets the bandwidth of Band 3
Gain [dB] –18...+18 Sets the gain of Band 3
e
[E]B4 Cutoff
[Hz]
500...20.00k Sets the center frequency of Band 4
Q 0.5...10.0 Sets the bandwidth of Band 4
Gain [dB] –18...+18 Sets the gain of Band 4
CHORUS/FLANGER
f
[F]LFO
Frequency [Hz]
0.02...20.00 Sets the speed of the LFO
LFO Waveform Triangle, Sine Selects the LFO Waveform
g
[F]Delay Time
[msec]
0.0...1350.0 Sets the delay time
Depth 0...100 Sets the depth of LFO modulation
Feedback –100...+100
Sets the feedback amount
h
[F]Cho/Flng
Wet/Dry
-Wet, -
1:99...Dry...99:1
, Wet
Sets the effect balance of the
chorus/flanger
Src Off...Tempo
Selects the Wet/Dry modulation
source for the chorus/flanger
Amt –100...+100
Sets the Wet/Dry modulation
amount for the chorus/flanger
i
[F]Output
Mode
Normal,
Wet Invert
Selects the output mode for the
chorus/flanger
j
Wet/Dry
Dry, 1:99...99:1,
Wet
Balance between the wet and dry
signal
Src Off...Tempo
Table , “Dynamic Modulation
sources,” on page 243
Amt –100...+100 Amount of modulation source
Left
Right
FX Amt
FX Amt = 100: Mono In - Stereo Out / FX Amt = 0: Stereo In - Stereo Out
Trim
+
Parametric 4Band EQ
Chorus/Flanger
FX Amt
Chorus/Flanger
Feedback
LFO: Tri / Sine
Cho/Flng FX Amt
Normal
Wet Invert
Output Mode
+
–
P4EQ
a [E]Trim 0...100 Sets the parametric EQ input level
b
[E]B1 Cutoff
[Hz]
20...1.00k Sets the center frequency of Band 1
Q 0.5...10.0 Sets the bandwidth of Band 1
Gain [dB] –18...+18 Sets the gain of Band 1
c
[E]B2 Cutoff
[Hz]
50...5.00k Sets the center frequency of Band 2
Q 0.5...10.0 Sets the bandwidth of Band 2
Gain [dB] –18...+18 Sets the gain of Band 2
d
[E]B3 Cutoff
[Hz]
300...10.00k Sets the center frequency of Band 3
Q 0.5...10.0 Sets the bandwidth of Band 3
Gain [dB] –18...+18 Sets the gain of Band 3
e
[E]B4 Cutoff
[Hz]
500...20.00k Sets the center frequency of Band 4
Q 0.5...10.0 Sets the bandwidth of Band 4
Gain [dB] –18...+18 Sets the gain of Band 4
PHASER
f
[P]LFO
Frequency [Hz]
0.02...20.00 Sets the speed of the LFO
LFO Waveform Triangle, Sine Selects the LFO Waveform
g
[P]Manual 0...100
Sets the frequency to which the
effect is applied
Depth 0...100 Sets the depth of LFO modulation
Resonance –100...+100
Sets the resonance amount
h
[P]Phaser Wet/
Dry
-Wet, -
1:99...Dry...99:1
, Wet
Sets the phaser effect balance
Src Off...Tempo
Selects the Wet/Dry modulation
source for the phaser
Amt –100...+100
Sets the Wet/Dry modulation
amount for the phaser
i
[P]Output
Mode
Normal,
Wet Invert
Selects the phaser output mode
j
Wet/Dry
Dry, 1:99...99:1,
Wet
Balance between the wet and dry
signal
Src Off...Tempo
Table , “Dynamic Modulation
sources,” on page 243
Amt –100...+100 Amount of modulation source
Left
Right
FX Amt
FX Amt
FX Amt = 100: Mono In - Stereo Out / FX Amt = 0: Stereo In - Stereo Out
Trim
+
Parametric 4Band EQ Phaser
Phaser
Resonance
LFO: Tri / Sine
Phaser FX Amt
Normal
Wet Invert
Output Mode
–
+
