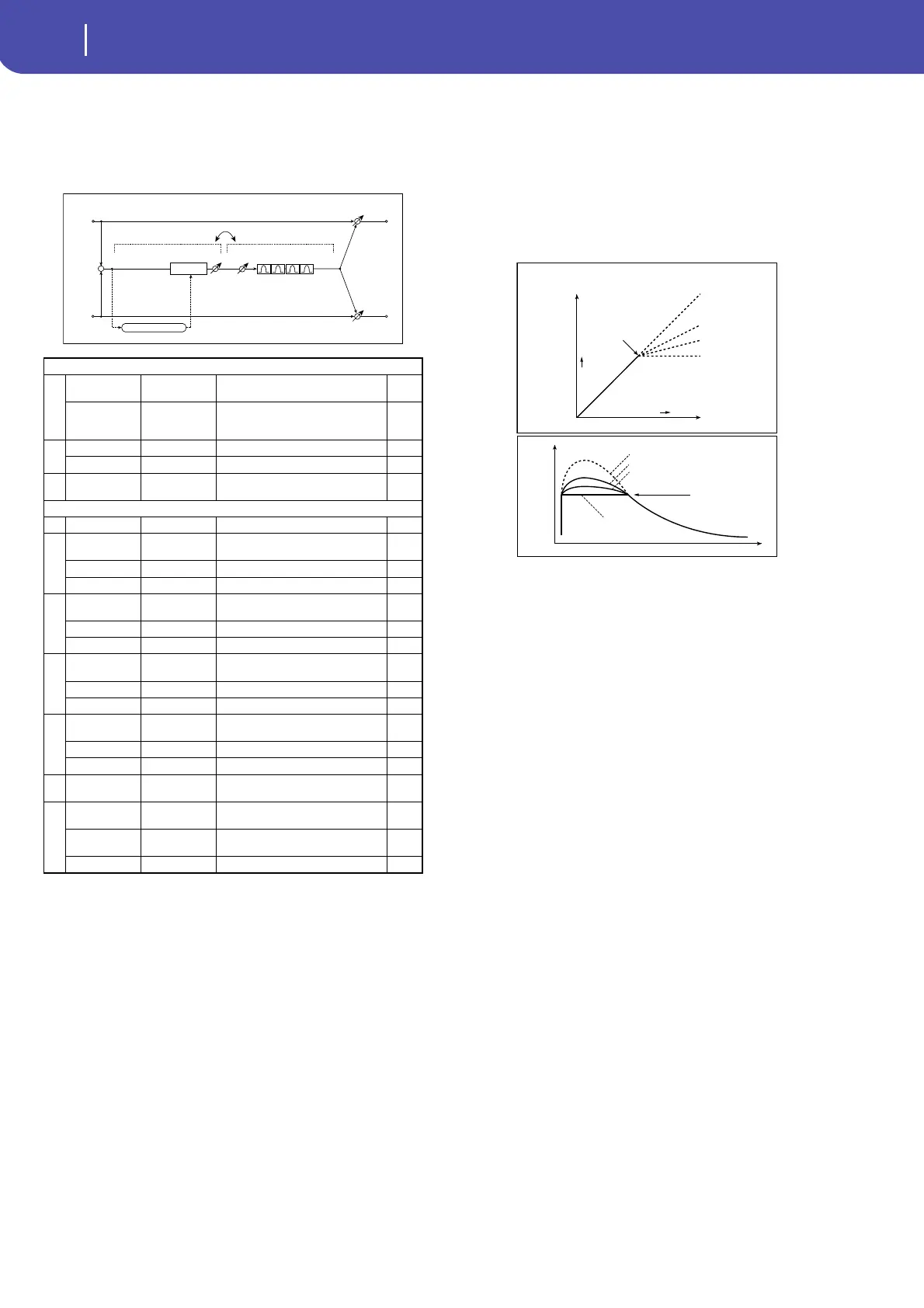

Effects
Mono-Mono Serial (Mono-Mono)
90: Limiter - P4EQ
(Limiter - Parametric 4-Band EQ)
This effect combines a mono limiter and a four-band parametric
equalizer. You can change the order of the effects.
a: [L]Ratio
a: Threshold [dB]
c: [L]Gain Adjust [dB]
This parameter sets the signal compression “[L]Ratio”. Compres-
sion is applied only when the signal level exceeds the “Thresh-
old” value.
Adjust the output level using the “Gain Adjust” parameter, since
compression causes the entire level to be reduced.
LIMITER
a
[L]Ratio
1.0 : 1...
50.0 : 1, Inf : 1
Sets the signal compression ratio
Threshold [dB] –40...0
Sets the level above which the
compressor is applied
b
[L]Attack 1...100 Sets the attack time
Release 1...100 Sets the release time
c
[L]Gain Adjust
[dB]
–Inf,
–38...+24
Sets the limiter output gain
P4EQ
d [E]Trim 0...100 Sets the parametric EQ input level
e
[E]B1 Cutoff
[Hz]
20...1.00k Sets the center frequency of Band 1
Q 0.5...10.0 Sets the bandwidth of Band 1
Gain [dB] –18...+18 Sets the gain of Band 1
f
[E]B2 Cutoff
[Hz]
50...5.00k Sets the center frequency of Band 2
Q 0.5...10.0 Sets the bandwidth of Band 2
Gain [dB] –18...+18 Sets the gain of Band 2
g
[E]B3 Cutoff
[Hz]
300...10.00k Sets the center frequency of Band 3
Q 0.5...10.0 Sets the bandwidth of Band 3
Gain [dB] –18...+18 Sets the gain of Band 3
h
[E]B4 Cutoff
[Hz]
500...20.00k Sets the center frequency of Band 4
Q 0.5...10.0 Sets the bandwidth of Band 4
Gain [dB] –18...+18 Sets the gain of Band 4
iRouting
Limiter P4EQ,
P4EQ Limiter
Switches the order of the limiter and
parametric EQ
j
Wet/Dry
Dry, 1:99...99:1,
Wet
Balance between the wet and dry
signal
Src Off...Tempo
Table , “Dynamic Modulation
sources,” on page 243
Amt –100...+100 Amount of modulation source
Left
Right
FX Amt
FX Amt
FX Amt = 100: Mono In - Mono Out / FX Amt = 0: Stereo In - Stereo Out
+
Routing
Limiter
Trim
Parametric 4Band EQ
Limiter
Gain Adjust
Envelope - Control
Input Level
Output Level
Threshold
Ratio=1.0 : 1
Ratio=2.0 : 1
Ratio=4.0 : 1
Ration=Inf : 1
Louder
Louder
Time
Level
Threshold
Ratio=Inf : 1
Ratio=2.0 : 1
Ratio=4.0 : 1
Dry
Ratio=1.0 : 1
Limiter - Threshold / Ratio
