297
Effects
Mono-Mono Serial (Mono-Mono)
Appendix

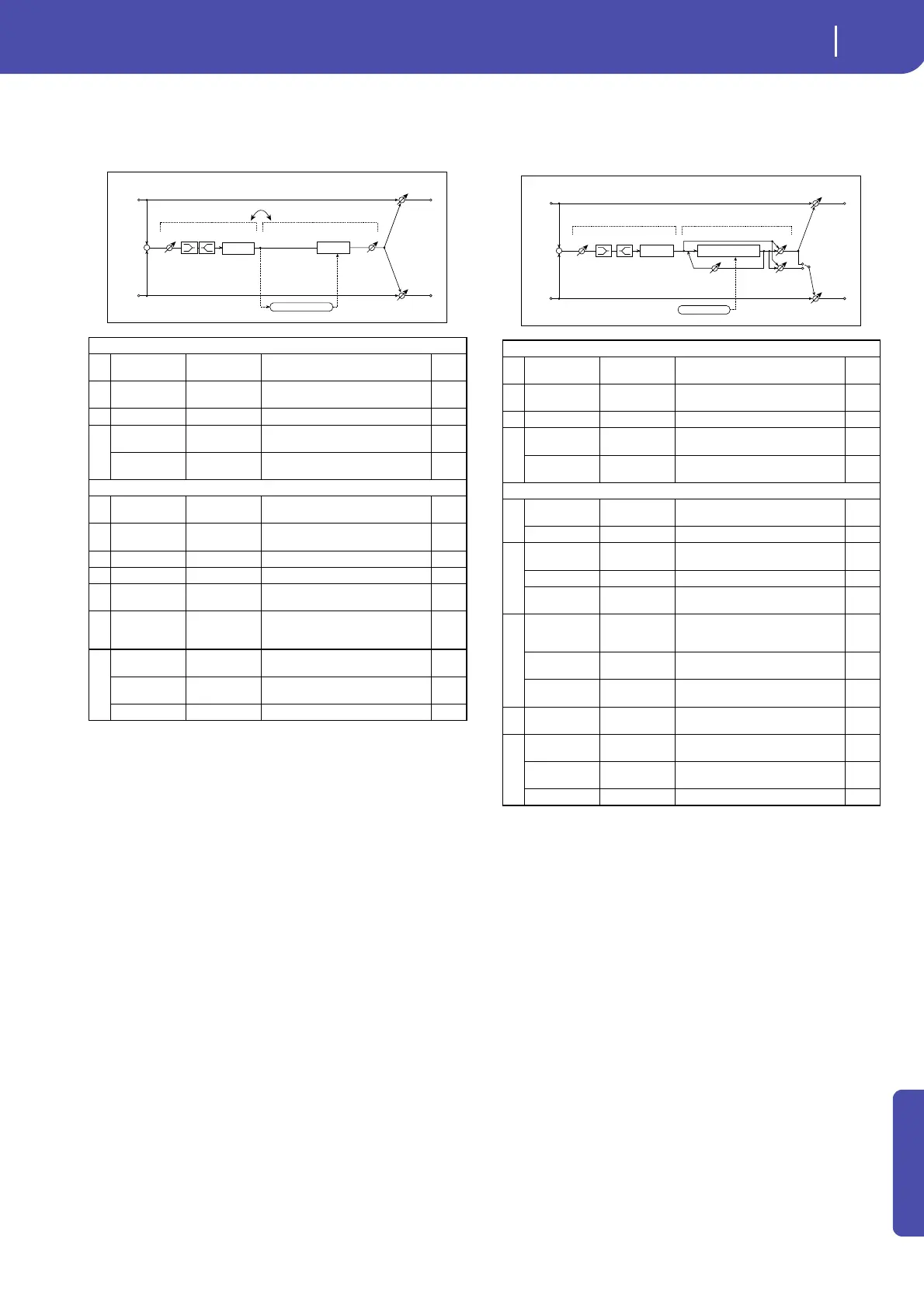

95: Exciter - Limiter
This effect combines a mono exciter and a limiter. You can
change the order of the effects.
96: Exciter - Cho/Flng
(Exciter - Chorus/Flanger)
This effect combines a mono limiter and a chorus/flanger.
EXCITER
a
[X]Exciter
Blend
–100...+100
Sets the intensity (depth) of the
Exciter effect
b
[X]Emphasis
Frequency
0...70
Sets the frequency range to be
emphasized
c [X]Trim 0...100 Sets the EQ input level
d
[X]Pre LEQ
Gain [dB]
–15...+15 Sets the gain of Low EQ
Pre HEQ Gain
[dB]
–15...+15 Sets the gain of High EQ
LIMITER
e[L]Ratio
1.0 : 1...
50.0 : 1, Inf : 1
Sets the signal compression ratio
f
[L]Threshold
[dB]
–40...0
Sets the level above which the
compressor is applied
g [L]Attack 1...100 Sets the attack time
Release 1...100 Sets the release time
h
[L]Gain Adjust
[dB]
–Inf,
–38...+24
Sets the limiter output gain
iRouting
Exciter
Limiter, Limiter
Exciter
Switches the order of the exciter
and limiter
j
Wet/Dry
Dry, 1:99...99:1,
Wet
Balance between the wet and dry
signal
Src Off...Tempo
Table , “Dynamic Modulation
sources,” on page 243
Amt –100...+100 Amount of modulation source
Left
Right
FX Amt
FX Amt
FX Amt = 100: Mono In - Mono Out / FX Amt = 0: Stereo In - Stereo Out
+
Routing
LEQ HEQ
EQ Trim
Exciter
Exciter
Limiter
Limiter
Gain Adjust
Envelope - Control
EXCITER
a
[X]Exciter
Blend
–100...+100
Sets the intensity (depth) of the
Exciter effect
b
[X]Emphasis
Frequency
0...70
Sets the frequency range to be
emphasized
c [X]Trim 0...100 Sets the EQ input level
d
[X]Pre LEQ
Gain [dB]
–15...+15 Sets the gain of Low EQ
Pre HEQ Gain
[dB]
–15...+15 Sets the gain of High EQ
CHORUS/FLANGER
e
[F]LFO
Frequency [Hz]
0.02...20.00 Sets the speed of the LFO
LFO Waveform Triangle, Sine Selects the LFO Waveform
f
[F]Delay Time
[msec]
0.0...1350.0 Sets the delay time
Depth 0...100 Sets the depth of LFO modulation
Feedback –100...+100
Sets the feedback amount
g
[F]Cho/Flng
Wet/Dry
-Wet, -
1:99...Dry...99:1
, Wet
Sets the effect balance of the
chorus/flanger
Src Off...Tempo
Selects the Wet/Dry modulation
source for the chorus/flanger
Amt –100...+100
Sets the Wet/Dry modulation
amount for the chorus/flanger
h
[F]Output
Mode
Normal,
Wet Invert
Selects the output mode for the
chorus/flanger
i
Wet/Dry
Dry, 1:99...99:1,
Wet
Balance between the wet and dry
signal
Src Off...Tempo
Table , “Dynamic Modulation
sources,” on page 243
Amt –100...+100 Amount of modulation source
Left
Right
FX Amt
FX Amt
FX Amt = 100: Mono In - Stereo Out / FX Amt = 0: Stereo In - Stereo Out
+
Chorus/Flanger
Chorus/Flanger
Feedback
LFO: Tri / Sine
Cho/Flng FX Amt
Normal
Wet Invert
Output Mode
–
+
LEQ HEQ
EQ Trim
Exciter
Exciter
