KR Electrical Defrost Unit Coolers (PN E108318_S) 16

8.1

AIR DEFROST MODELS WIRING DIAGRAMS

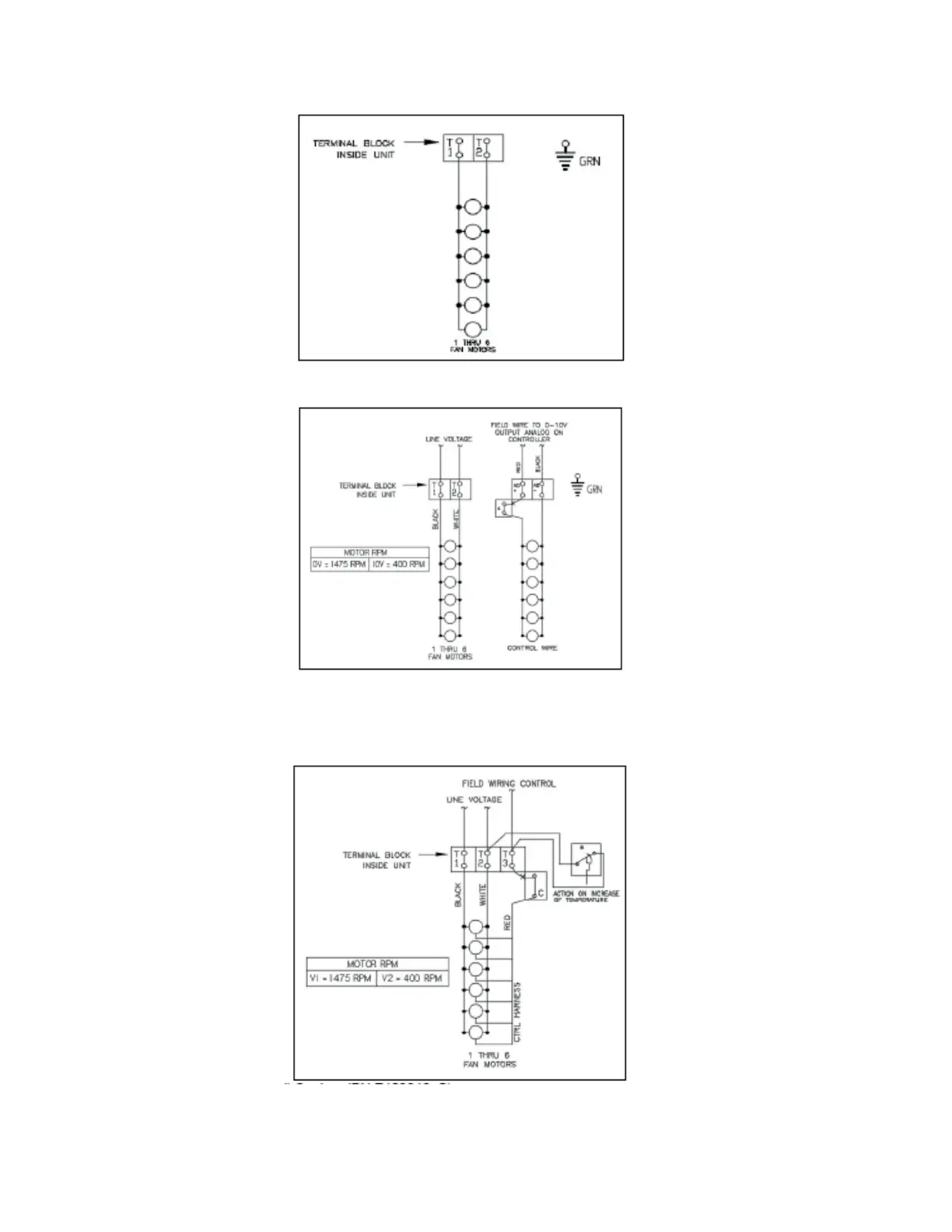

FIGURE 4A: AIR DEFROST WIRING DIAGRAM FOR MOTOR TYPE B

FIGURE 4B: AIR DEFROST WIRING DIAGRAM FOR MOTOR TYPE V

FIGURE 4C: AIR DEFROST WIRING DIAGRAM FOR MOTOR TYPE D
