KR Electrical Defrost Unit Coolers (PN E108318_S) 24

8.3

GAS DEFROST MODELS WIRING DIAGRAMS

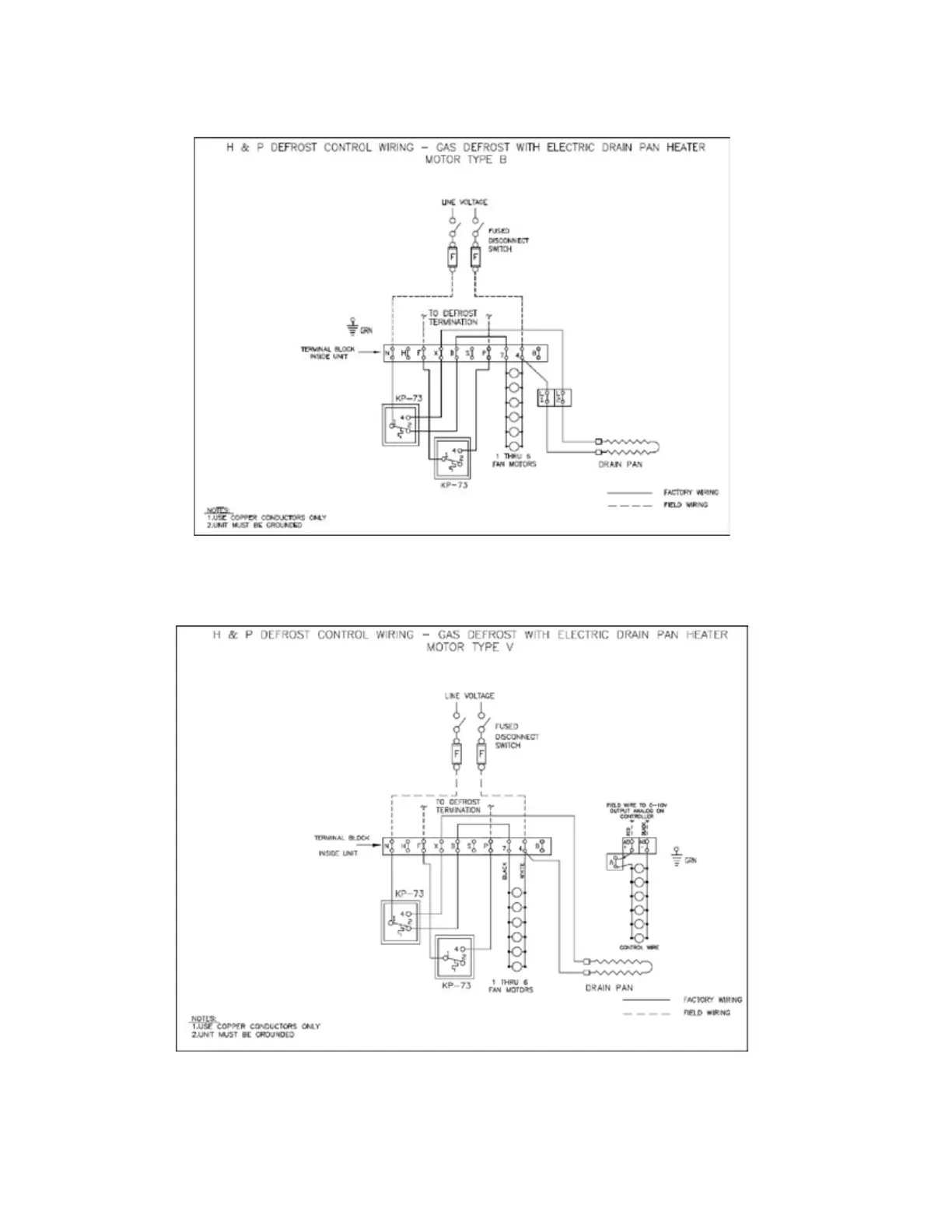

FIGURE 9A: H - 3 PIPE HOT GAS WITH ELECTRIC PAN HEAT AND P - 2 PIPE KOOL

GAS WITH ELECTRIC PAN HEAT – MOTOR TYPE B

FIGURE 9B: H - 3 PIPE HOT GAS WITH ELECTRIC PAN HEAT AND P - 2 PIPE KOOL

GAS WITH ELECTRIC PAN HEAT – MOTOR TYPE V
