21KR Electrical Defrost Unit Coolers (PN E108318_S)

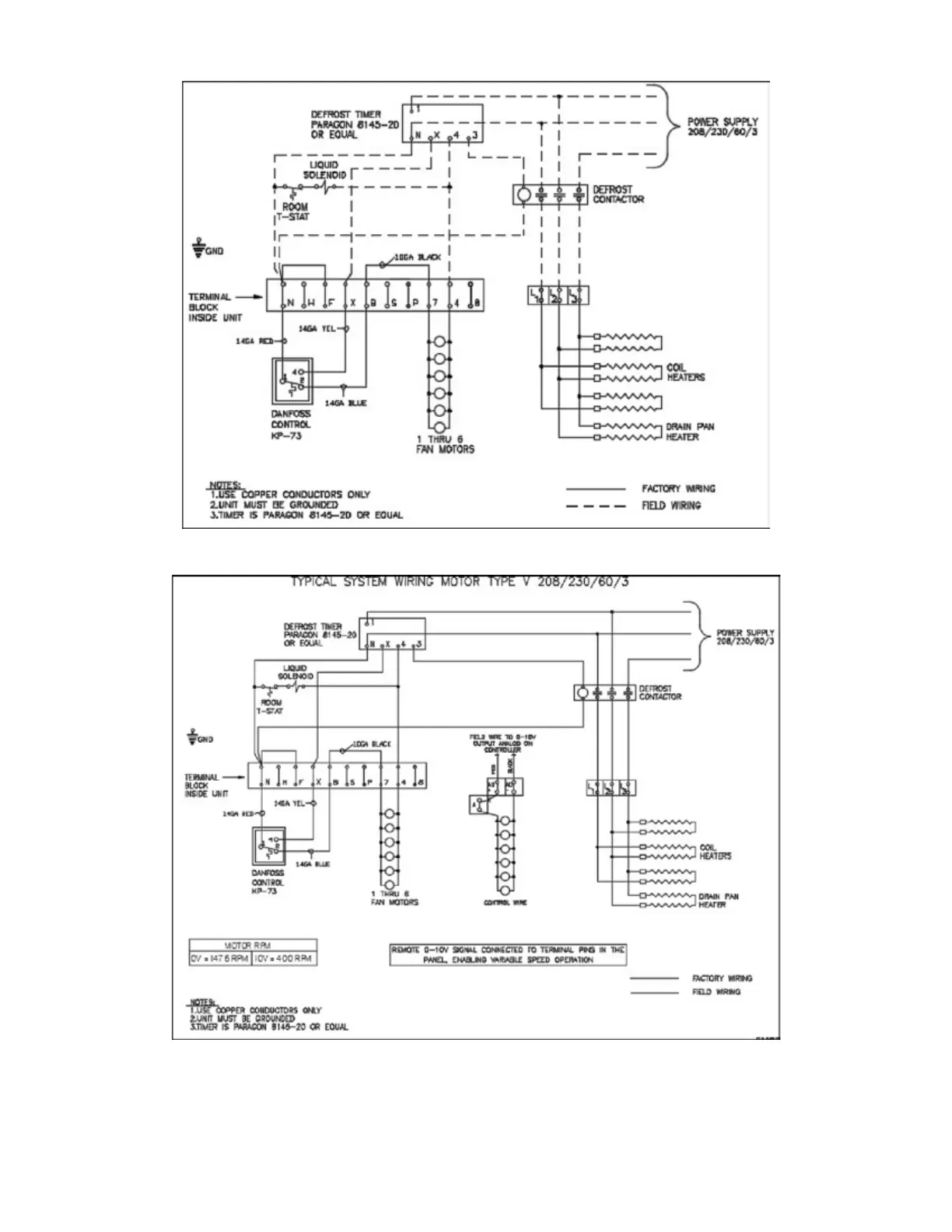

FIGURE 7A: ELECTRIC DEFROST SYSTEM WIRING MOTOR TYPE B - 3 PHASE HEATERS

FIGURE 7B: ELECTRIC DEFROST SYSTEM WIRING MOTOR TYPE V - 3 PHASE HEATERS
