16 Accessories
16.1 Installation
16 Accessories
16.1 Installation
16.1.1 Connecting items

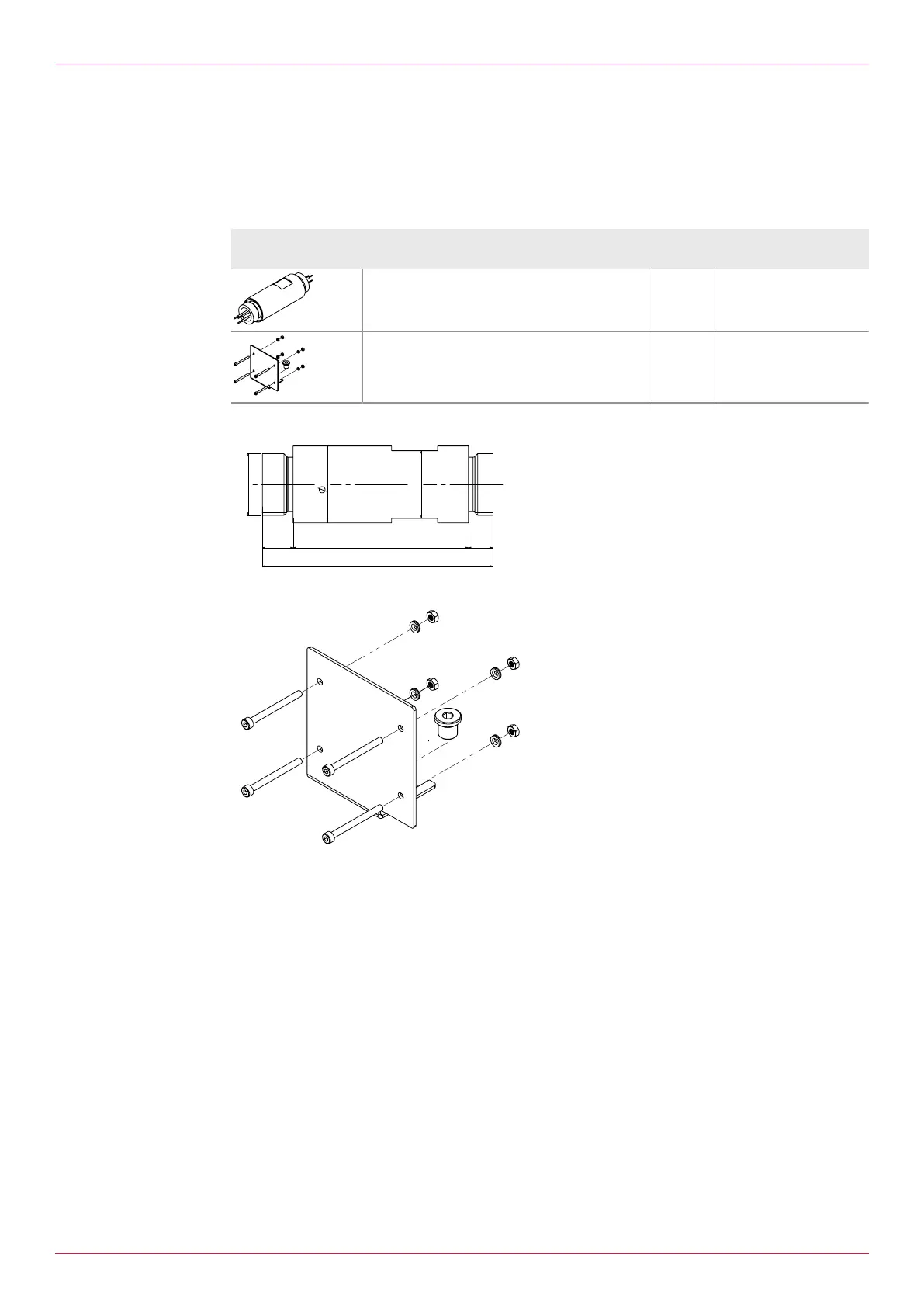

The electronic unit can be assembled on an OME or OMP flow meter using the connecting item.
Fastening set Application Article
no.
Suitable for
Connecting tube for assembly on flow meter
OME
UZA91 Electronic unit BEM 200
Connecting bracket for assembly on OMP
flow meter
UZA100
UZA101
UZA102
Electronic unit BEM 200
Tab.13: Connecting items
SW22
25
M20x1,5
85710
75
Fig.9: Fastening set UZA 91: Dimensions
Assembly: M20
Fig.10: Fastening set UZA100 - UZA102
UZA100 for OMP20
UZA101 for OMP32
UZA102 for OMP52
22
