KRAL BEM 200 - Technical Data: Dimensions; Dimensional Drawings and Housing

4 Technical data
4.1 Dimensional drawing
4 Technical data
4.1 Dimensional drawing
72
52
93
93
60
16.5
16.5
20.5
A
B C

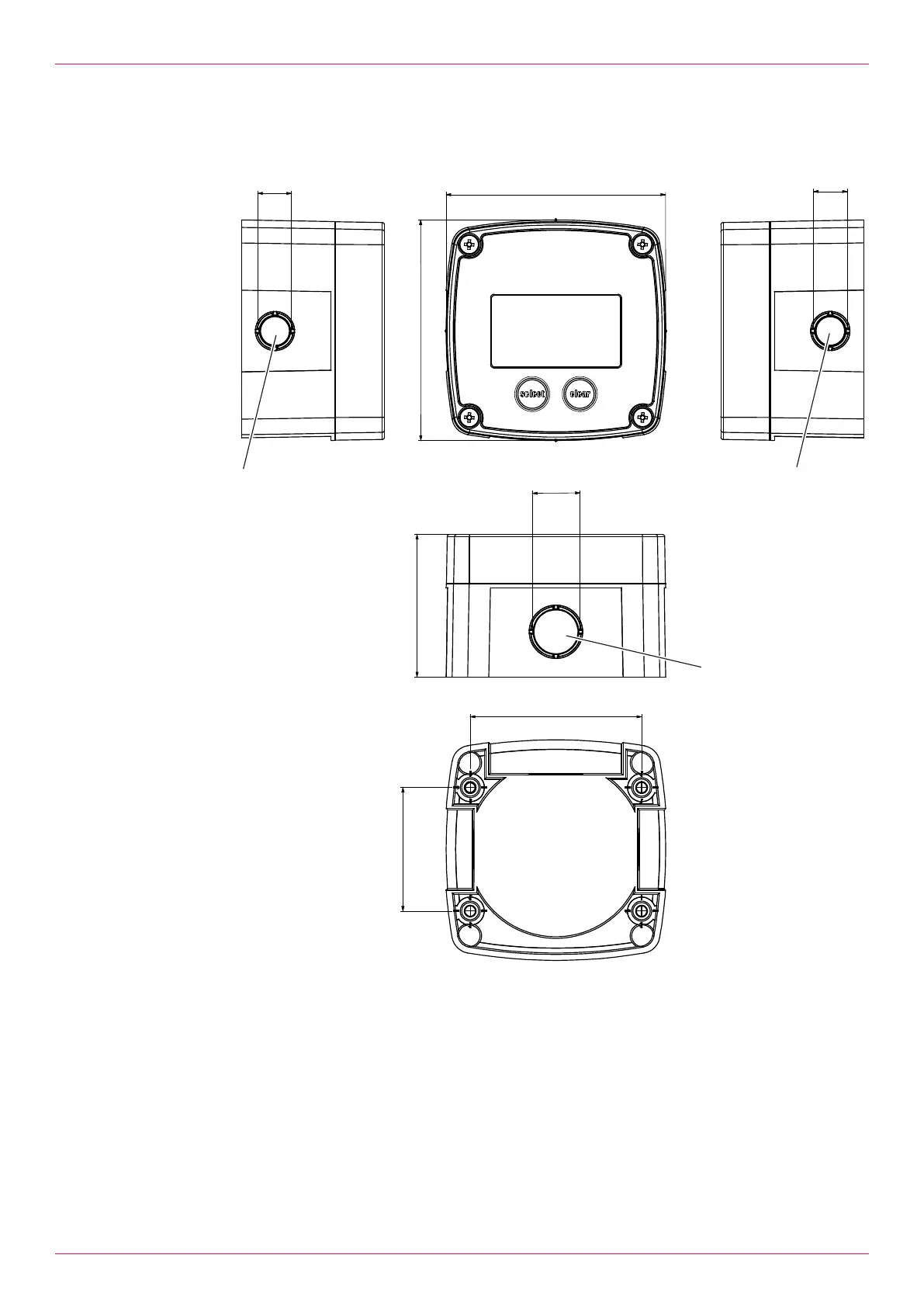

Fig.2: Housing dimensions
A Opening 20.5 mm for connecting tube (electronic unit - flow meter OME connection)
B Opening 16.5 mm for connection of power supply or pick up
C Opening 16.5 mm for connection of power supply or pick up
