Operating Instructions OIO 14en Edition 07/2017 11
Dimensions and weights
Technical data
OMG with DIN flange
* Screw-in depth is not equal to L3, but rather amounts to 17 mm
Tab. 9 Dimensions and weights – DIN flange connection
DN
M18x1
G1/4"
D
L1
L2
L3
TK
Nominal diameter
flange
Pick up hole
Temperature sensor
hole
Outer diameter
Total length
Flowmeter length
without connections
Flange thickness
Pitch circle

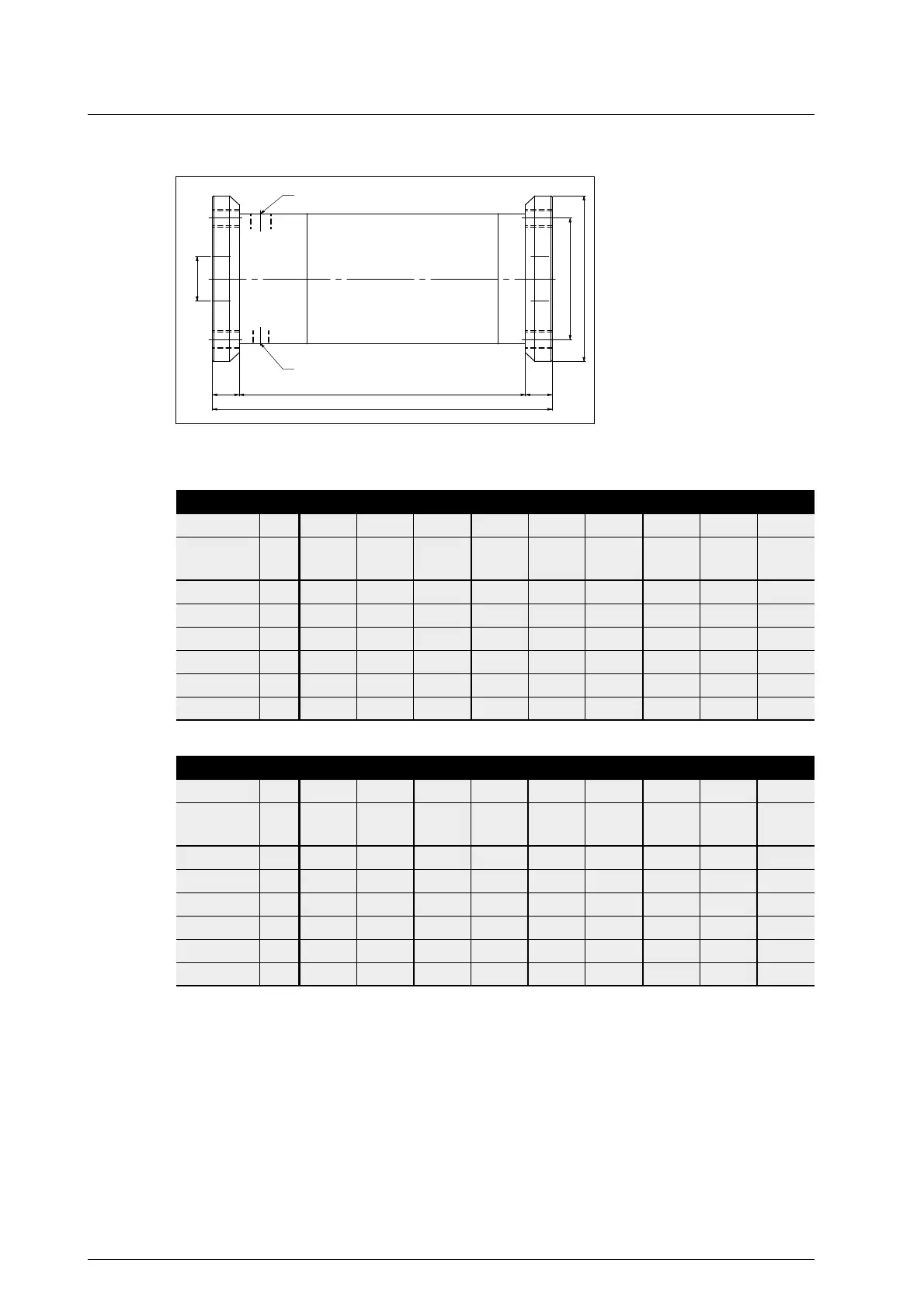

Fig. 3 Dimensioned drawing OMG with DIN flange
OMG 13 OMG 20 OMG 32
DN 15 15 15 20 15 15 32 25 25
Pressure
stage
[bar] 40 160 250 40 160 250 40 160 250
D [mm] 95 105 130 105 105 130 140 140 150
L1 [mm] 145 145 145 185 185 195 265 265 275
L2 [mm] 94 94 94 145 145 145 215 215 215
L3 [mm] 25.5* 25.5* 25.5 20 20 25 25 25 30
TK [mm] 65 75 90 75 75 90 100 100 105
Weight [kg] 4.7 4.8 6.0 6.0 6.0 8.1 16 16 19
OMG 52 OMG 68 OMG100 OMG140
DN 40 40 50 50 100 100 150 150
Pressure
stage
[bar] 40 160 40 100 16 40 16 40
D [mm] 150 170 165 195 220 235 285 300
L1 [mm] 285 295 340 355 450 460 600 610
L2 [mm] 240 240 295 295 400 400 537 537
L3 [mm] 22.5 27.5 22.5 30 25 30 31.5 36.5
TK [mm] 110 125 125 145 180 190 240 250
Weight [kg] 21 23 31 37 65 70 170 180
