KRAL OMG 13 - Removing Seals and Bearings

42 OIO 14en Edition 07/2017 Operating Instructions
Mounting instructions OMG100/140
Maintenance
Mounting instructions OMG100/140

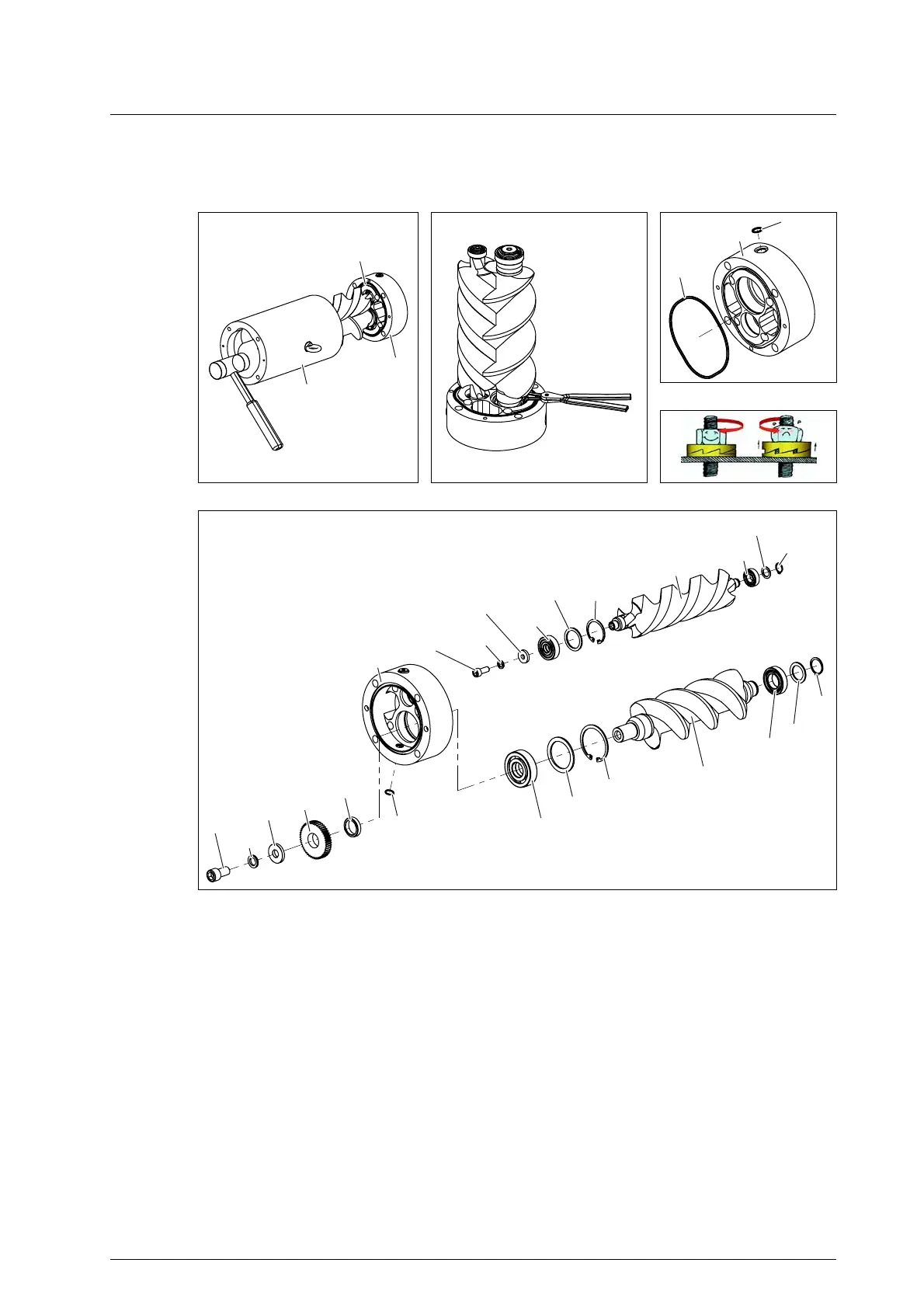

Removing seals and bearings
Fig. 19
Fig. 20 Fig. 21 Fig. 22
Fig. 23
041
056***
064.1
064.2
080.1
128
259
672.1
672.2
Sleeve
Spacer
Supporting ring
Supporting ring
Bearing cover
Measuring housing
Pole wheel
Measuring screw large
Measuring screw small
739.1
739.5**
817.1
817.2
821.1
821.2
868.1
868.2
868.3
O-ring
O-ring
Deep-groove ball bearing
Deep-groove ball bearing
Four-point contact bearings
Four-point contact bearings
Support ring
Support ring
Support ring
868.4
869.2
869.4
870.1
870.2
904.1
904.2
915.6
915.7
Support ring
Circlip
Circlip
Circlip
Circlip
Lock washer
Lock washer
Socket screw
Socket screw
**
***
two units if two pick up holes exist
OMG140: replaced by sleeve, spare part 041
128
739.1
080.1
739.5**
739.1
080.1
915.6
904.1
064.1
259
056***
869.4
868.4
672.2
870.2
868.3
821.2
064.2
904.2
915.7
869.2
868.2
672.1
870.1
821.1
739.5**
868.1
817.2
817.1
080.1
