Operating Instructions OIO 14en Edition 07/2017 51
Accessories
Appendix
Accessories
Junction box
The junction box simplifies the electrical connection of the various sensors. Up to three sensors can be
connected. The sensor cables are combined to form a multi-strand connecting cable which can be
supplied as well optionally if required. The detailed assignment plan can be found on the inside of the
junction box lid.
The junction boxes are suitable for flowmeters with pipe threading or flanged connection and can be
mounted on the sizes OMG 20 - 140.

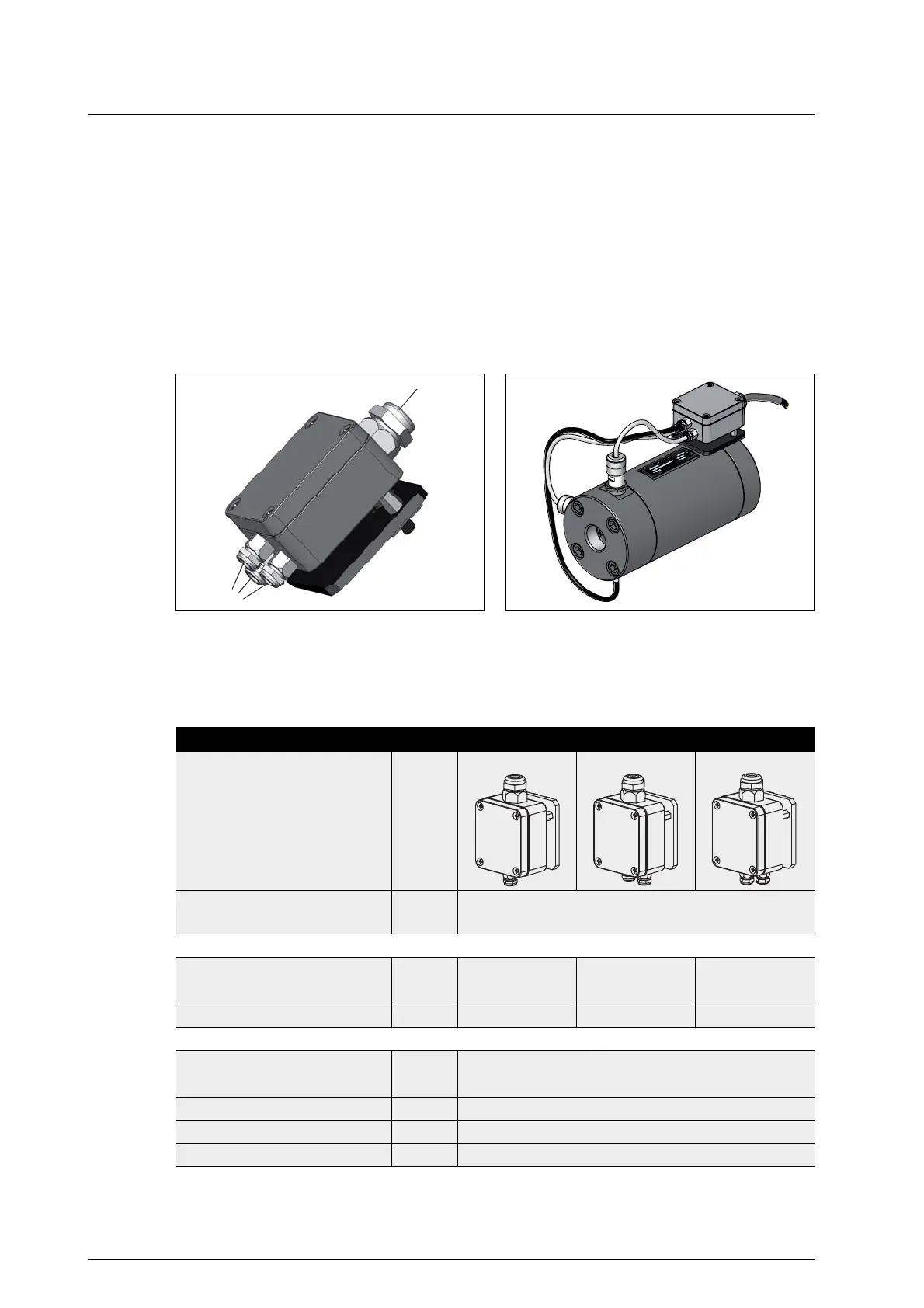

Fig. 5 Junction box UZA 11 Fig. 6 OMG 32 with installed UZA 11
1 Output
2 Sensor inputs
Junction boxes UZA 09 UZA 10 UZA 11
suitable for BEG 43D, BEG 44
EET 32 EET 33, EET 34
Electrical specification
□ Sensor inputs 1 2 3
□ Outputs 1 1 1
Mechanical specification
□ Liquid temperature max. [° C] +150
□ Housing material Aluminum
□ Connection thread M6
□ Fastening type directly on device
