Operating Instructions OIO 14en Edition 07/2017 21
Description
Function description
Function description
Description
As screw meters flowmeters belong to the group of rotating displacement meters. The fluid current
makes the measuring unit rotate. The displacement effect results from the continuous filling, axial
displacement and discharge of the volumes that are formed by the measuring housing and measuring
unit. The measured liquid flows around and lubricates all the rotating parts. Thanks to the displacement
principle, the flowmeter does not require inlet and smoothing sections in its supply and discharge.
Depending on the customer requirements, the flowmeters can be equipped with suitable end
connections for connection to various flanges.

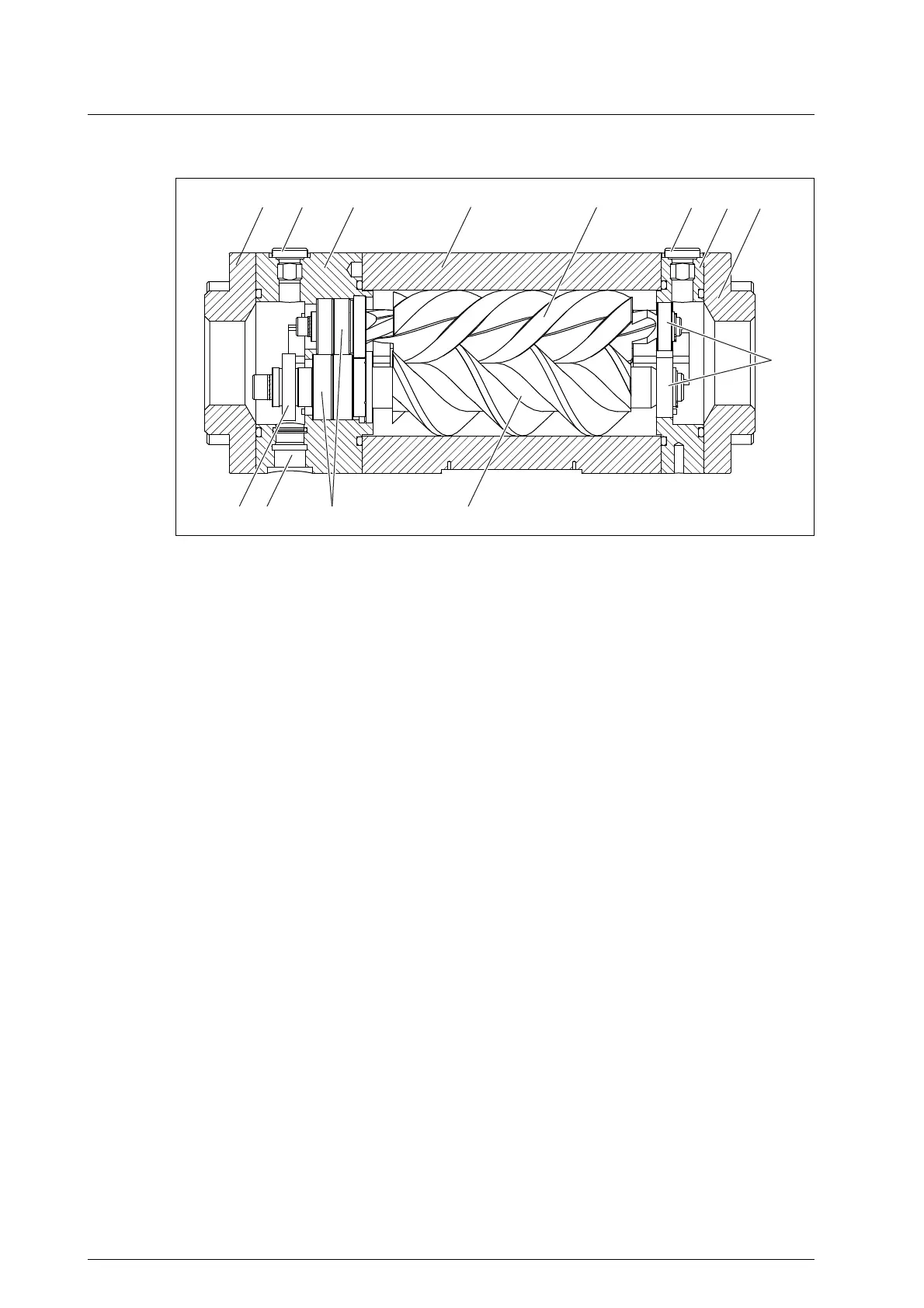

Fig. 1 Structure of the flowmeter OMG series
1 Connection
2 Screw plug
2a Temperature sensor connection
3 Bearing cover
4 Measuring housing
5 Measuring screw small
6 Ball bearing, floating bearing end
7 Measuring screw large
8 Ball bearing, fixed bearing end
9 Pick up hole
10 Pole wheel
78910
