4 Technical data
4.6 Dimensions and weights
4.6.2 DIN flange
L3
D
TK
G1/4"
DN
M18x1
L3 L2
L1

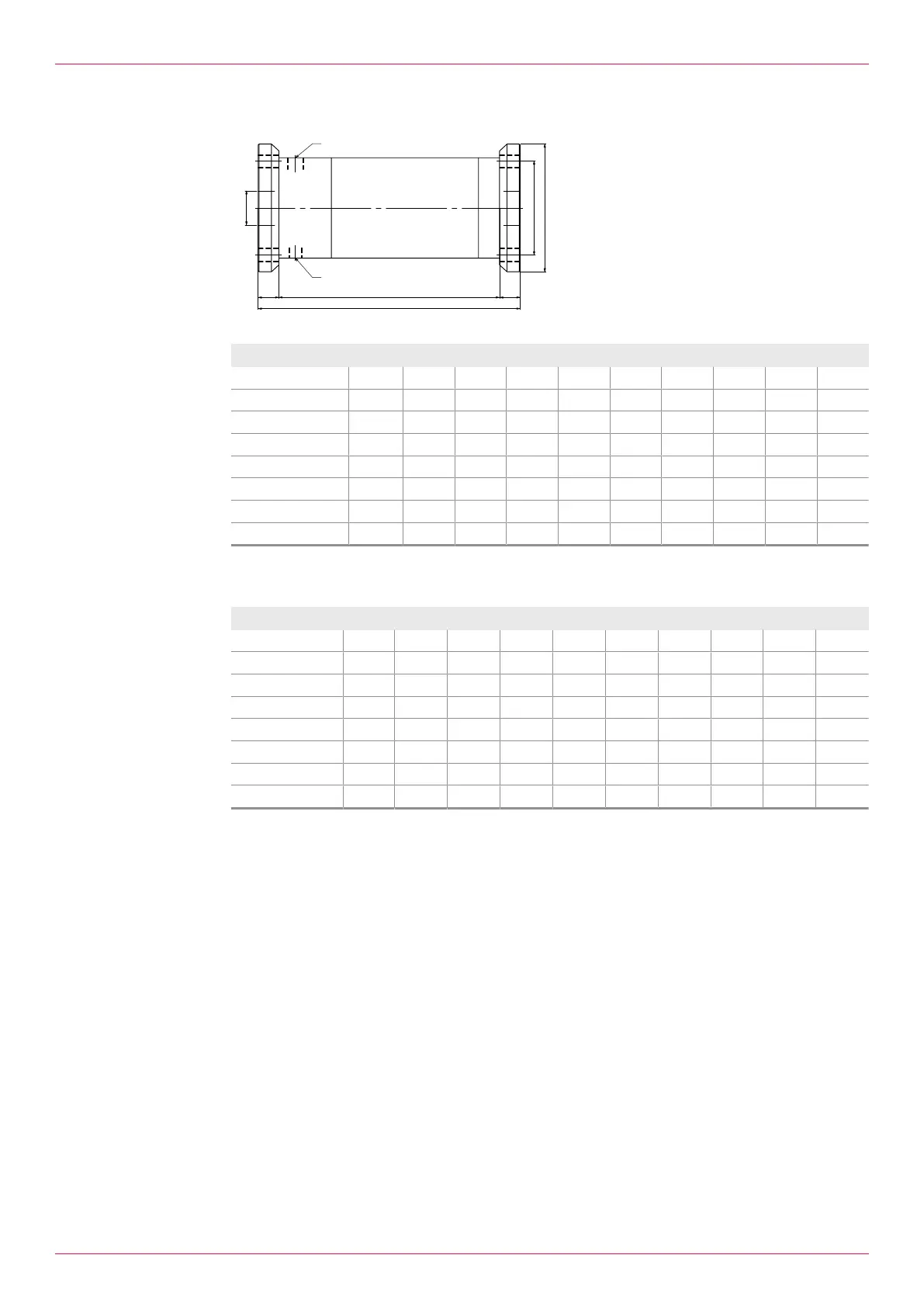

Fig.5: Dimensional drawing DIN flange connection
DN Nominal diameter flange
M18x1 Pick up hole
G1/4″ Temperature sensor hole
D Outer diameter
L1 Total length
L2 Length of the flowmeter without
connections
L3 Flange thickness
TK Pitch circle
Unit 013 020 032
DN 15 15 15 20 15 15 32 25 25
Pressure stage [bar] 40 160 250 40 160 250 40 160 250
D [mm] 95 105 130 105 105 130 140 140 150
L1 [mm] 145 145 145 185 185 195 265 265 275
L2 [mm] 94 94 94 145 145 145 215 215 215
L3 [mm] 25.5* 25.5* 25.5 20 20 25 25 25 30
TK [mm] 65 75 90 75 75 90 100 100 105
Weight [kg] 4.7 4.8 6.0 6.0 6.0 8.1 16 16 19
Tab.5: Dimensions and weights – DIN flange connection
*Screw-in depth is not equal to L3 but is 17mm
Unit 052 068 100 140
DN 40 40 50 50 100 100 150 150
Pressure stage [bar] 40 160 40 100 16 40 16 40
D [mm] 150 170 165 195 220 235 285 300
L1 [mm] 285 295 340 355 450 460 600 610
L2 [mm] 240 240 295 295 400 400 537 537
L3 [mm] 22.5 27.5 22.5 30 25 30 31.5 36.5
TK [mm] 110 125 125 145 180 190 240 250
Weight [kg] 21 23 31 37 65 70 170 180
Tab.6: Dimensions and weights – DIN flange connection
Operating instructions
OIO 14en-GB Edition 2020-01
