KRAL OMG Series User Manual

15 Spare parts

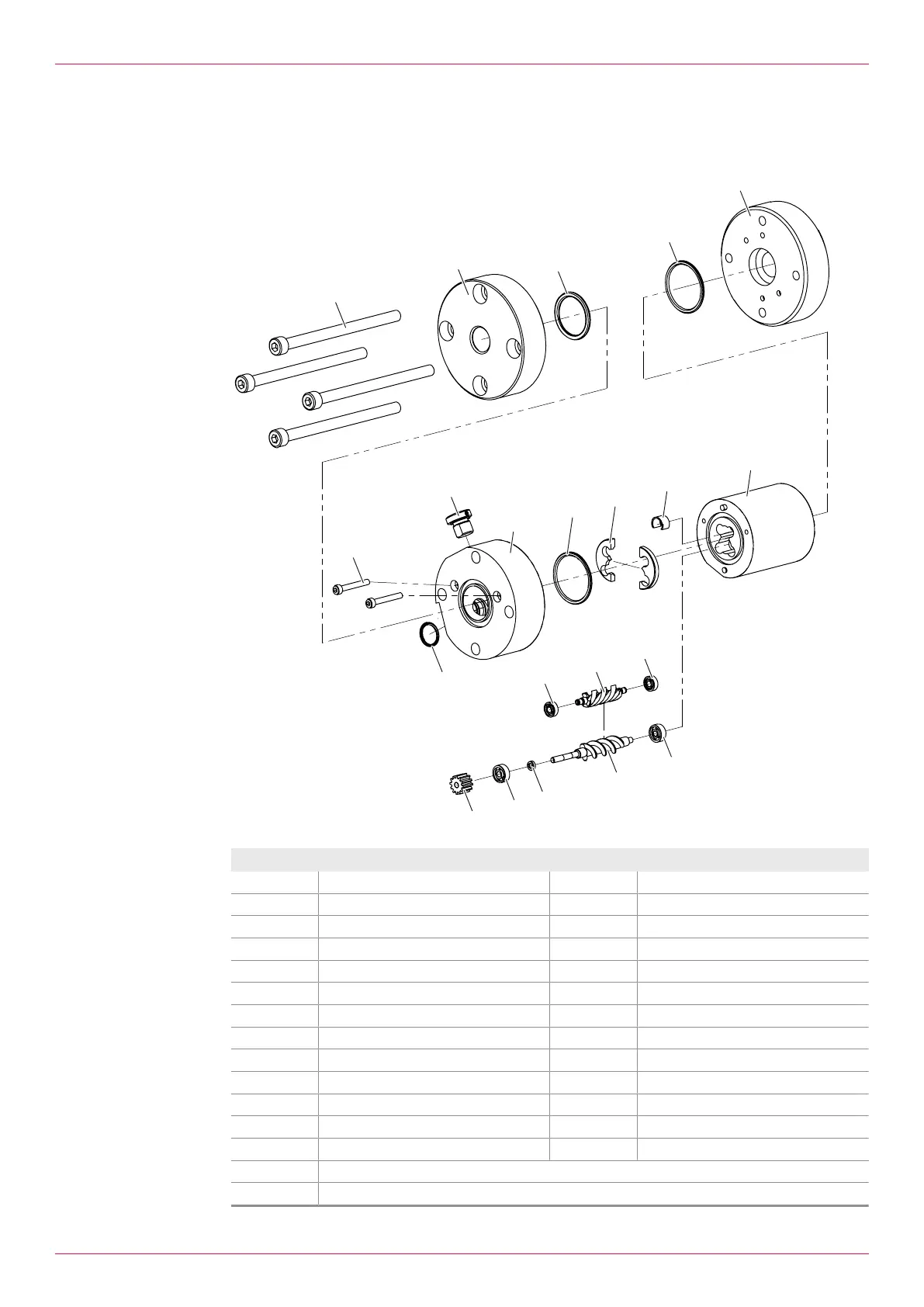

15.1 Overview OMG-013
15 Spare parts
15.1 Overview OMG-013
915.5
107.1*
039
107.2*
739.3
739.4
128
062
739.1
080.1
597.1
915.1
817.4
672.2
817.3
739.5**
817.2
672.1
259
817.1
041
Item No. Part Item No. Part
039 Distance sleeve 739.5** O-ring
062 Spacer 817.1 Deep-groove ball bearing
080.1 Bearing cover 817.2 Deep-groove ball bearing
107.1* Pipe thread connection 817.3 Deep-groove ball bearing
107.2* Pipe thread connection 817.4 Deep-groove ball bearing
128 Measuring housing 869.4 Circlip
259 Pole wheel 870.1 Circlip
597.1 Screw plug 870.2 Circlip
672.1 Measuring screw large 904.1 Wedge lock washer
672.2 Measuring screw small 904.2 Wedge lock washer
739.1 O-ring 915.1 Socket screw
739.3 O-ring 915.5 Socket screw
739.4 O-ring
* Parts alternatively for pipe thread connection or flange connection
** Exist twice at two pick up holes
Tab.12: List of parts
