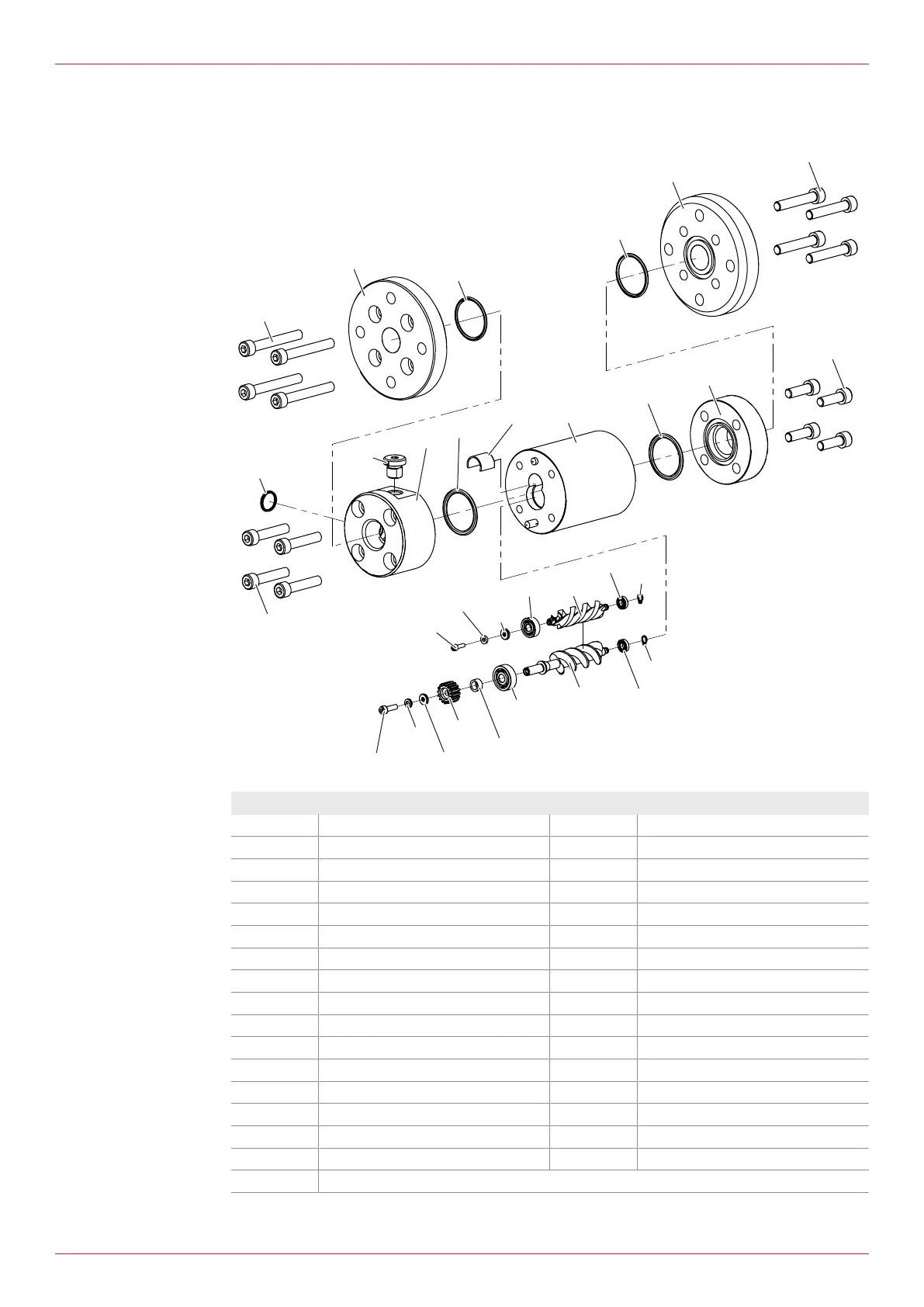

15.2 Overview OMG-020/OMG-032
15.2 Overview OMG-020/OMG-032
915.3*
115.1*
739.3*
739.4*
115.2*
915.4*
915.2*
070.2
739.2
128
039
739.1
070.1
597.1
739.5**
915.1*
869.4
817.4
672.2
817.3
064.2
904.2
915.7
869.2
817.2
672.1
817.1
056
259
915.6
904.1
064.1***
Item No. Part Item No. Part
039 Distance sleeve 739.4* O-ring
056 Distance ring 739.5** O-ring
064.1**** Supporting ring 817.1 Deep-groove ball bearing
064.2 Supporting ring 817.2 Deep-groove ball bearing
070.1 End cover 817.3 Deep-groove ball bearing
070.2 End cover 817.4 Deep-groove ball bearing
115.1* Flange 869.2 Circlip
115.2* Flange 869.4 Circlip
128 Measuring housing 904.1 Wedge lock washer
259 Pole wheel 904.2 Wedge lock washer
597.1 Screw plug 915.1* Socket screw
672.1 Measuring screw large 915.2* Socket screw
672.2 Measuring screw small 915.3* Socket screw
739.1 O-ring 915.4* Socket screw
739.2 O-ring 915.6 Socket screw
739.3* O-ring 915.7 Socket screw
* Parts alternatively for pipe thread connection or flange connection
