KRAL OMG Series User Manual

4 Technical data
3.2 Rating plate
3.2 Rating plate
R
1 2 3
4567

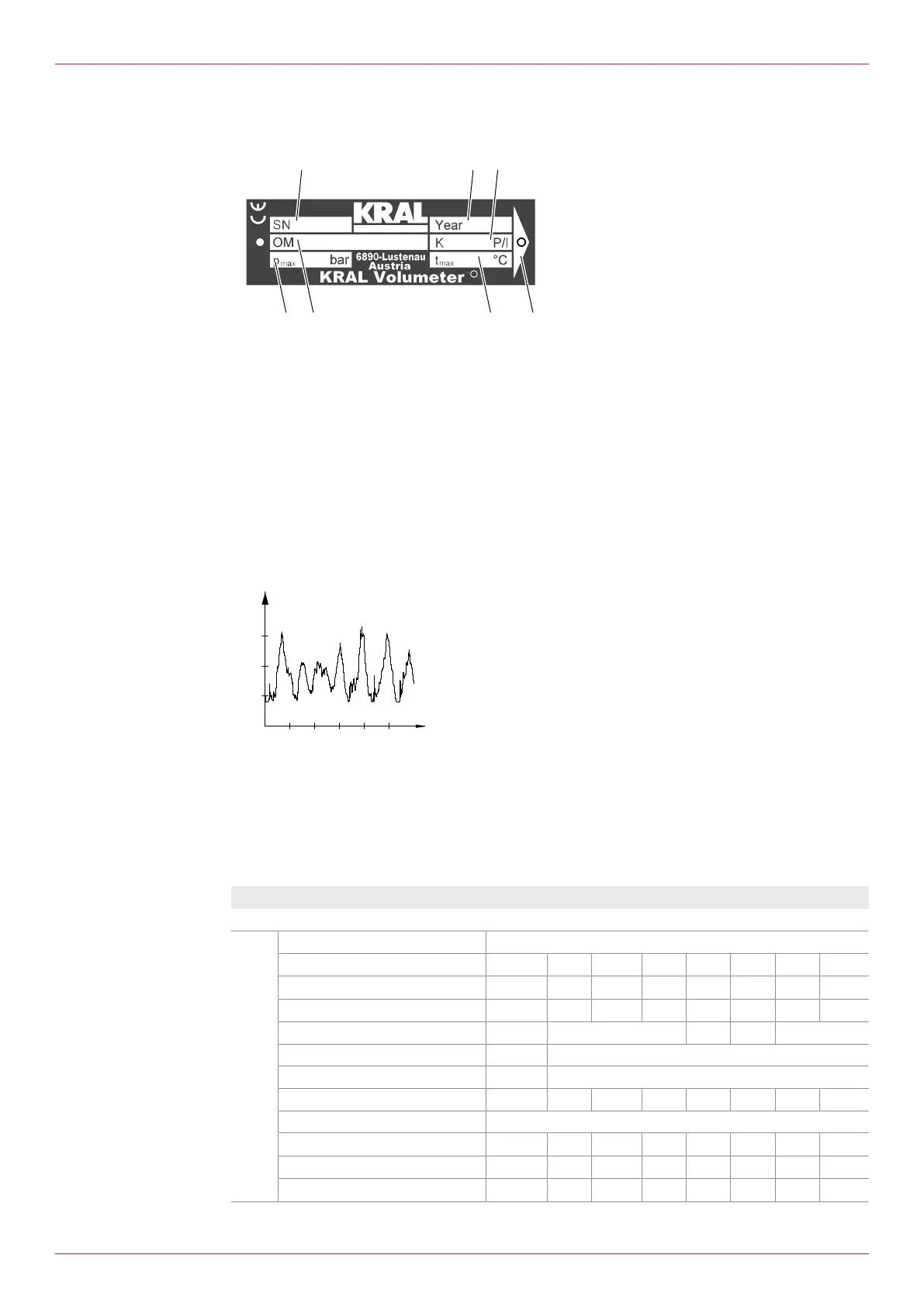

Fig.2: Rating plate
1 Serial number
2 Construction year
3 K-factor
4 Preferred flow direction
5 Max. temperature
6 Series
7 Max. pressure
4 Technical data
4.1 Operating limits
The values specified on the rating plate and the calibration certificate apply. The permissible operating
limits of individual values influence each other so that every application is checked individually by the
manufacturer when selecting the flowmeter.
If no operating data are provided by the orderer, standardized substitute operating data are used.
4.2 Pressure pulsation
10 3020 40 t [ms]
30
10
20
0
p
[bar]
Fig.3: Pressure pulses
Strong pressure pulsations in the system can
reduce the service life of the flowmeter.
4.3 Maximum values
The following table shows the respective maximum values that, however, may not occur simultan-
eously. In addition, the operating limits of the corresponding completion, of the sealing material and of
the pick up are to be observed.
Unit 013 020 032 052 068 100 140
Maximum values
Flow rate
o Q
max
[l/min] 15 45 150 525 1050 3000 7500
o Q
rated
[l/min] 10 30 100 350 700 2000 5000
o Q
min
[l/min] 0.1 0.3 1.0 3.5 7.0 20.0 50.0
Max. pressure [bar] 250 160 100 40
Min.-max. temperature [°C] -20 ... +200
Min.–max. viscosity [mm
2
/s] 1–1000000
Measuring chamber volume [ml/U] 1.6 6.3 25.6 112.7 251.3 833.3 2259.9
Rotation speed
o n (Q
max
)
[min
-1
] 9120 7200 5850 4658 4182 3600 3318
o n (Q
rated
)
[min
-1
] 6090 4800 3900 3105 2784 2400 2214
o n (Q
min
)
[min
-1
] 61 48 39 31 28 24 22
8
OIO 14en-GB Edition 2020-01
