8 Installation, removal
8.3 Installing the flowmeter

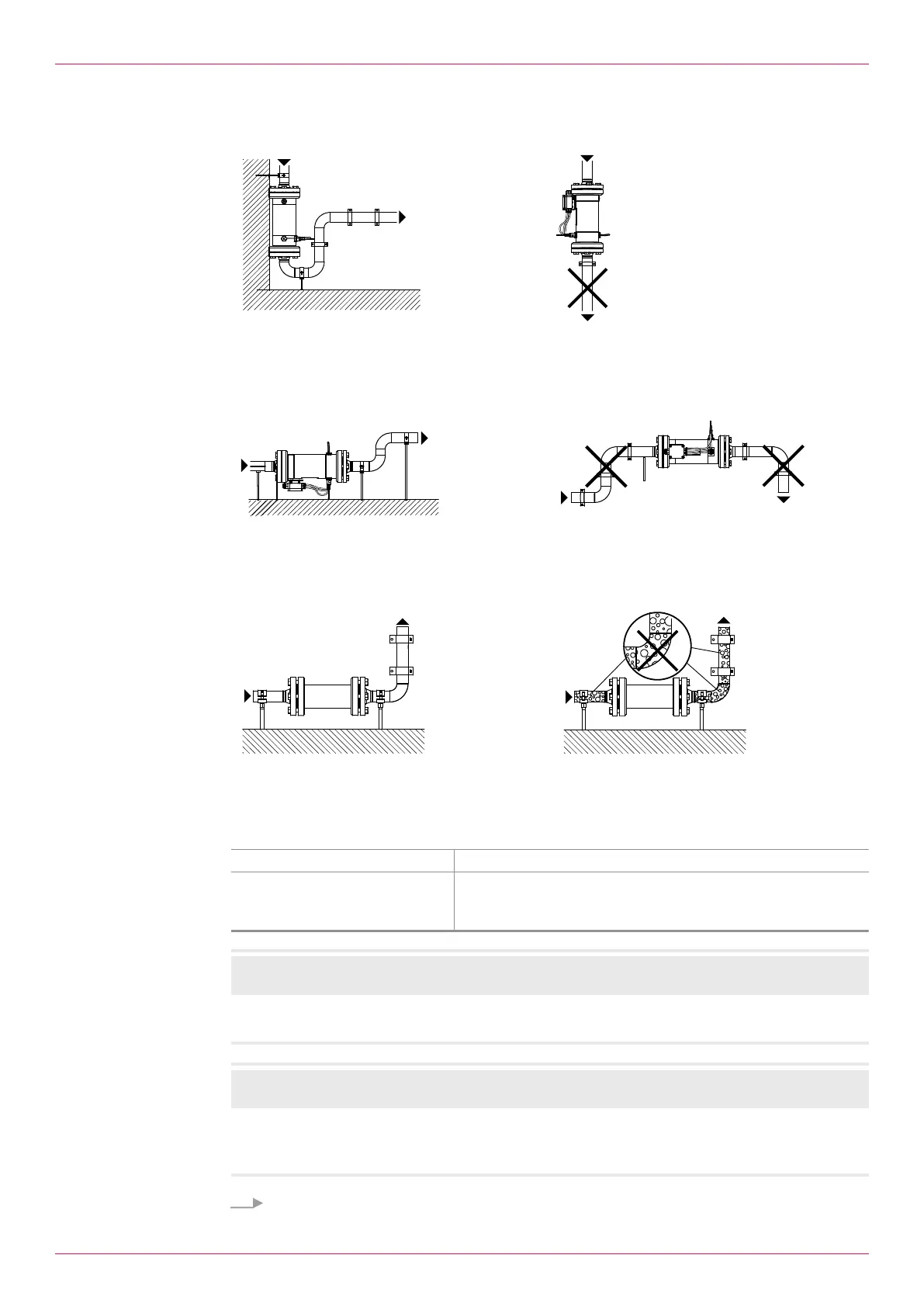

Recommendations for alternative installation variants
Alternative installation variant:
- Install the flowmeter vertically.
- Route the flow from the top downwards.
- Route the piping at the outlet upwards.
Source for measuring error:
- Lack of counter-pressure at the outlet through downward routing of the piping.
Alternative installation variant:
- Install the flowmeter horizontally.
- Route the piping at the outlet upwards.
Source for measuring error:
- Formation of an air pocket through the installation of the flowmeter at the highest point of the piping.
Recommendation:
- Carefully vent the pipe system during commissioning.
Source for measuring error:
- Gas inclusions in the pipe system
8.3.4 Installing the flowmeter
Personnel qualification: o Fitter
Personal protective equipment: o Work clothing
o Protective gloves
o Safety boots
ATTENTION
Measuring error through air pocket in the flowmeter.
► During installation ensure that the flowmeter is not installed at the highest point in the pipe system.
ATTENTION
Measuring error through a lack of counter-pressure.
► During the installation ensure that the piping at the outlet of the flowmeter runs upwards or that the
pipe diameter is reduced through a reducer so that the liquid generates a counter-pressure.
During the installation of the flowmeter observe the recommendations for the installation variants
and avoid error sources.
26
OIO 14en-GB Edition 2020-01
Operating instructions
