KRAL OMG Series User Manual

15 Spare parts

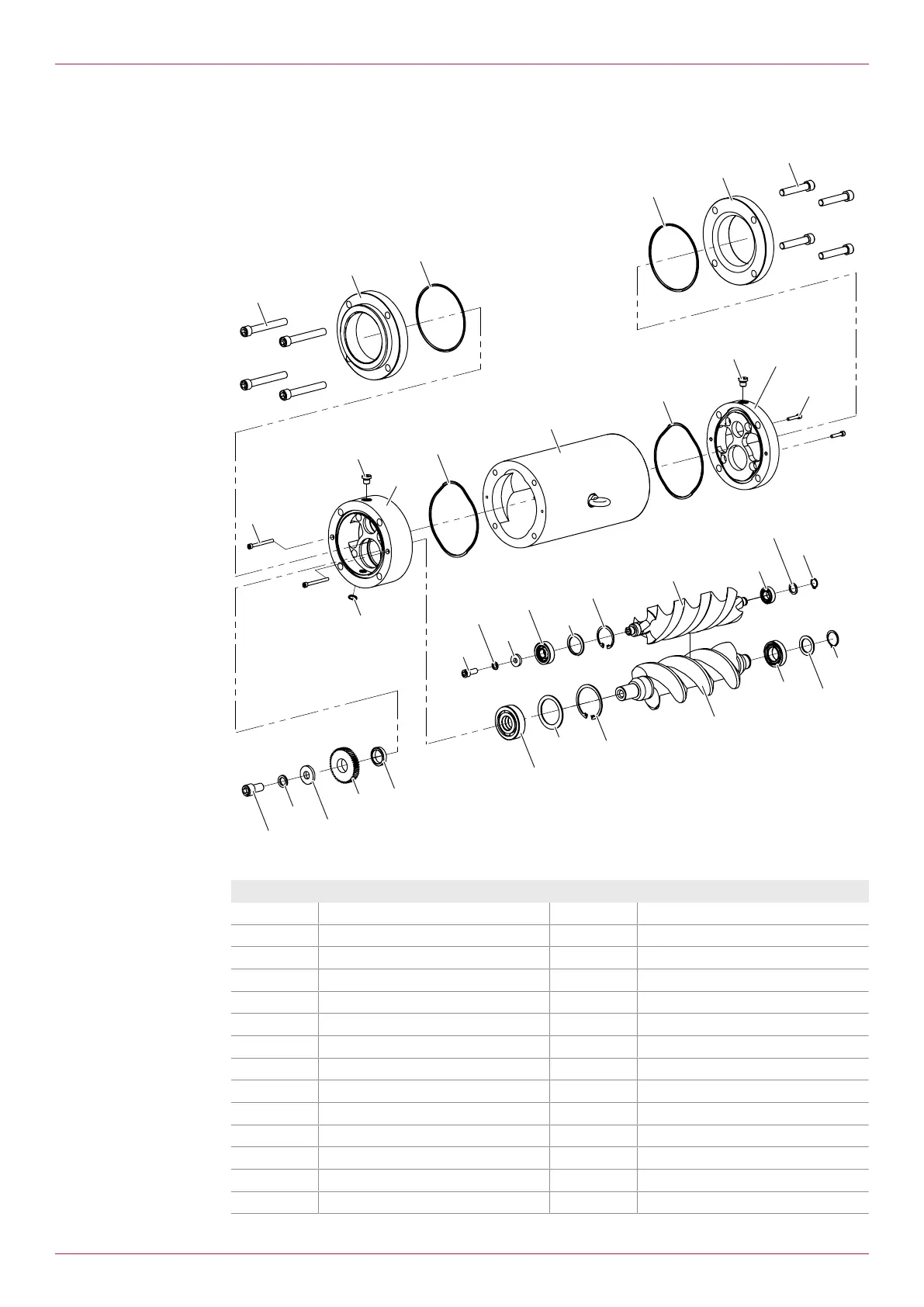

15.4 Overview OMG-100/OMG-140
15.4 Overview OMG-100/OMG-140
915.3
107.1*
739.3
739.4
915.4
107.2*
915.6
904.1
064.1
259
056***
915.2
080.2
597.2
739.2
128
739.1
080.1
597.1
915.1
869.4
868.4
817.2
672.2
870.2
868.3
821.2
064.2
904.2
915.7
869.2
868.2
817.1
672.1
870.1
868.1
821.1
739.5**
Item No. Part Item No. Part
056*** Distance ring 821.1 Four-point contact bearings
064.1 Supporting ring 821.2 Four-point contact bearings
064.2 Supporting ring 868.1 Support ring
080.1 Bearing cover 868.2 Support ring
080.2 Bearing cover 868.3 Support ring
107.1* Pipe thread connection 868.4 Support ring
107.2* Pipe thread connection 869.2 Circlip
128 Measuring housing 869.4 Circlip
259 Pole wheel 870.1 Circlip
597.1 Screw plug 870.2 Circlip
597.2 Screw plug 904.1 Wedge lock washer
672.1 Measuring screw large 904.2 Wedge lock washer
672.2 Measuring screw small 915.1 Socket screw
739.1 O-ring 915.2 Socket screw
