FC-18 – Controlling the Display via FC-18
23
Controlling the Display via FC-18’s Front Panel Buttons
(Sending to the Display’s RS-232 Port)
You can control a display via the FC-18 RS-232 port using the front panel buttons.
To control the display using the ON/OFF buttons via RS-232 port:
1. Connect the RS-232 port and the HDMI port to the RS-232-controlled display.

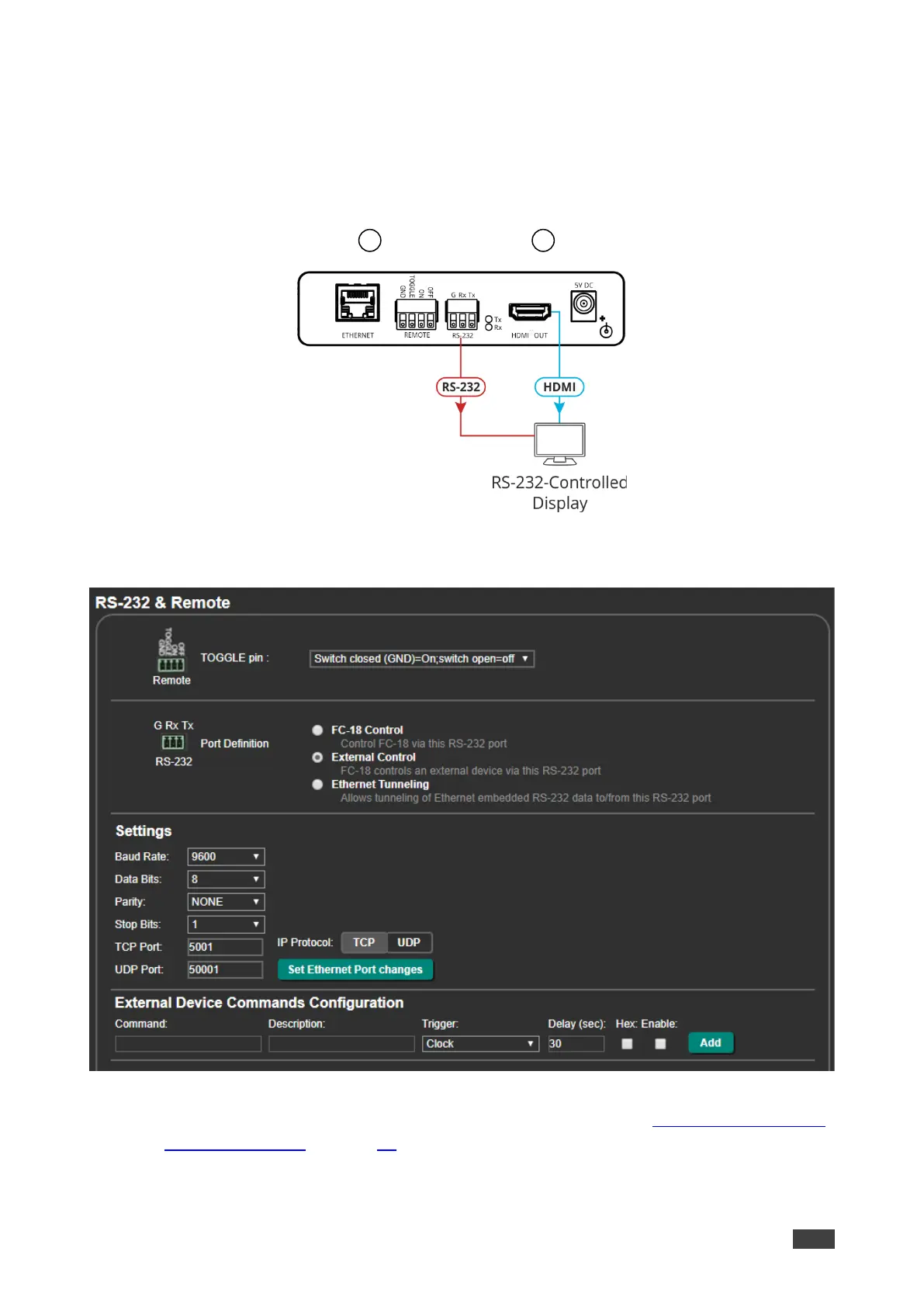

Figure 25: Sending Commands by ON/OFF Buttons via RS-232 Port
2. In the Navigation pane, click RS-232 & Remote. The RS-232 & Remote page appears.
Figure 26: RS-232 & Remote Page – Button On and Button Off Command Configuration
3. Configure the Button On and Button Off display commands (see Controlling an External
Device via RS-232 on page 48).
