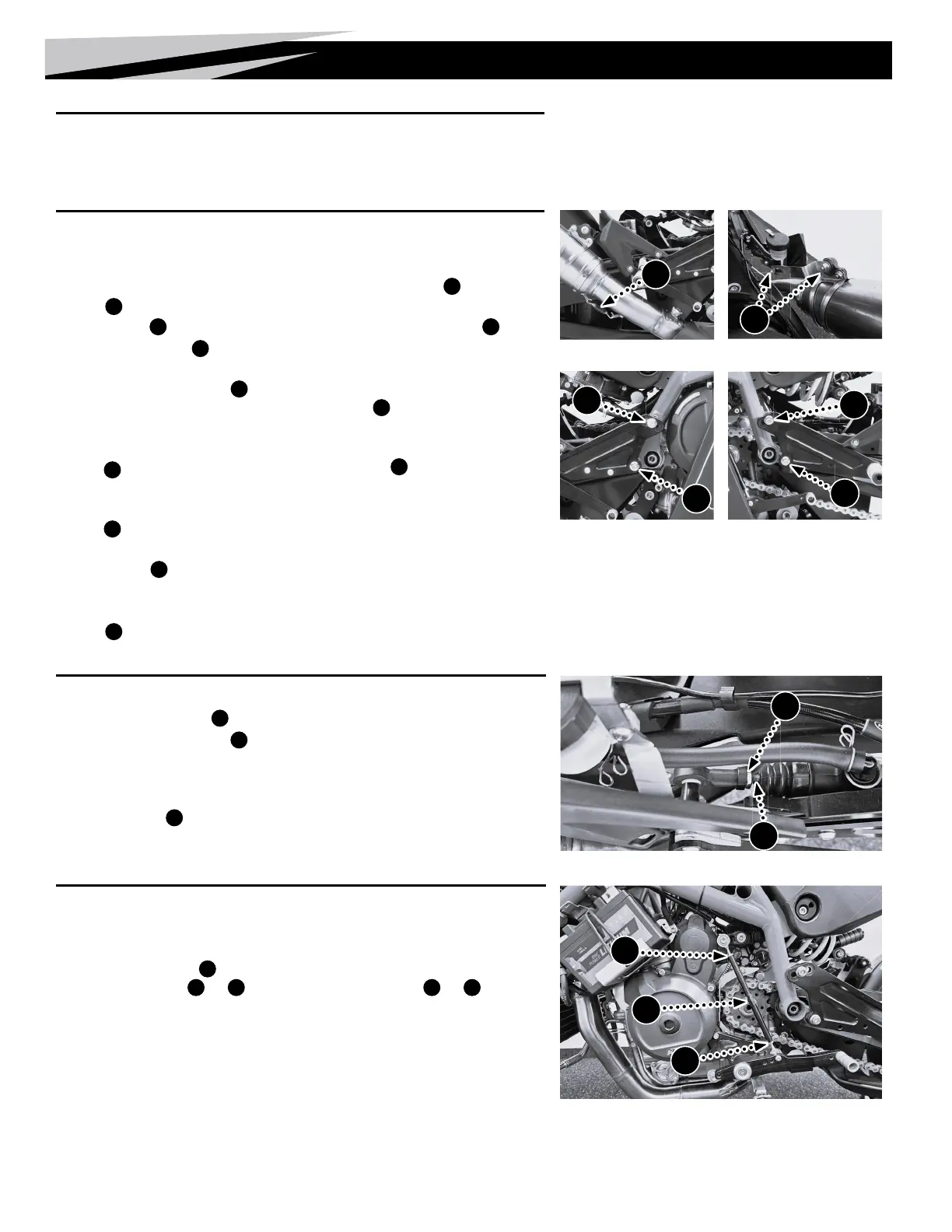

18
Chassis
Rear Brake Lever Adjustment
1. Loosen the brake rod jam nut
G
.
2. Adjust the length of the brake rod
H
by
screwing the rod end bearing in or out of the
brake rod until the brake lever is in the desired
position.
3. Tighten the jam nut
G
.
Adjusting the Foot Pegs
Right Side
1. Remove the exhaust muf er retainer
spring
A
.
2. Loosen the nuts
B
.
3. Loosen the bottom screw
D
of the foot peg
carrier.
4. Loosen and remove the top screw
C
so that
the carrier can move freely.
5. Position the carrier to the desired location.
6. Apply blue thread lock* and tighten the top
screw
C
to the appropriate torque – 25 Nm
(18.4 ft-lb).
7. Apply blue thread lock* and tighten the bottom
screw
D
to the appropriate torque – 25 Nm
(18.4 ft-lb).
8. Tighten the nuts
B
to the appropriate torque –
25 Nm (18.4 ft-lb).
9. Reinstall the exhaust muf er retainer
spring
A
.
Left Side
1. Loosen the bottom screw
F
of the foot peg
carrier.
2. Loosen and remove the top screw
E
so that
the carrier can move freely.
3. Position the carrier to the desired location.
4. Install, apply blue thread lock* and tighten the
top screw
E
to the appropriate torque – 25
Nm (18.4 ft-lb).
5. Install, apply blue thread lock* and tighten the
bottom screw
F
to the appropriate torque –
25 Nm (18.4 ft-lb).
6. Adjust the position of the shift and brake levers
[See below].
* Loctite
®
243™
Rearset Setup
The adjustable rearset allows a personalized setting for each rider, with both foot pegs, the
shift lever, and the brake lever being adjustable.
Shift Lever Height Adjustment
Adjust the shift lever height by changing the shift
linkage length.
1. Hold the shift shaft linkage
J
with a wrench
and loosen the jam nuts
I
and
K
with a
second wrench.
2. Adjust the length of the shift shaft linkage by
rotating the shaft.
3. Adjust until the shift lever is in the desired
position. Keep a minimum of 8 mm of thread
inside the linkage rod ends.
4. Tighten the jam nuts
I
and
K
to the
appropriate torque – 10 Nm (7.4 ft-lb).
R.H. Side Rearset Adjustment
R.H. Side Rearset Adjustment Preparation
L.H. Side Rearset Adjustment
Brake Lever Adjustment – R.H. Side
C
E
A
D
F
B
H
G
I
J
K
Shift Lever Height Adjustment
